Draytek | SKU:
VSP2100-K

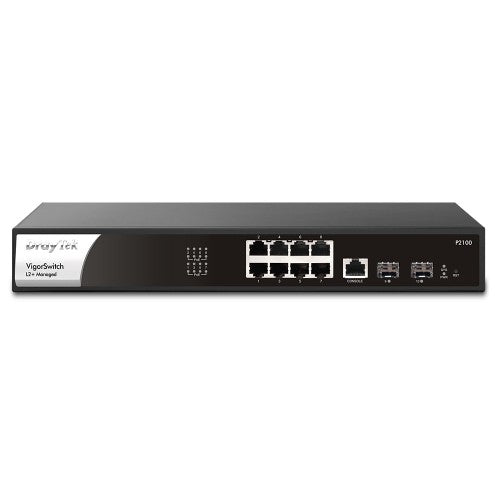

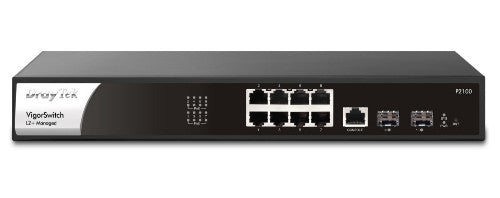

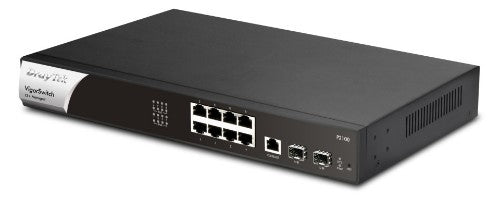

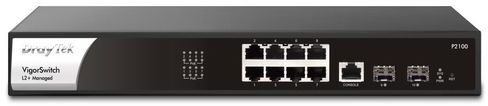

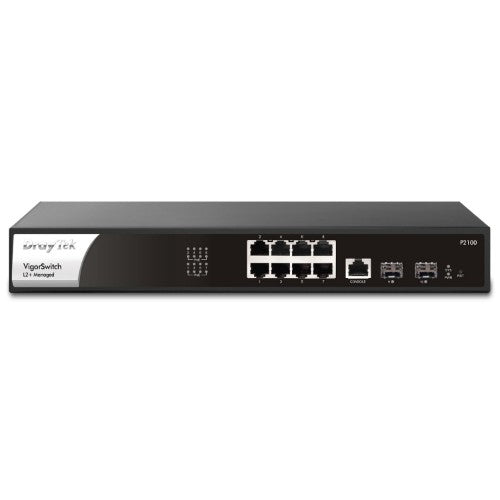

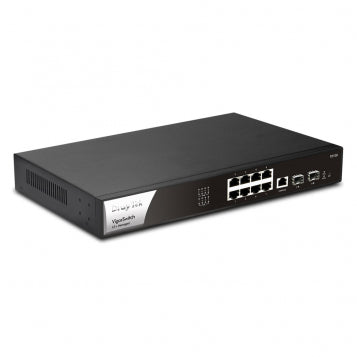

DrayTek P2100 Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Silver
€206.84
Unit price
/
Unavailable
Shipping calculated at checkout.
DrayTek P2100 Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Silver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
8-port Gigabit L2+ Managed PoE+ switch with 2 SFP Uplink ports, 140-watt Power-over-Ethernet, 100-240VAC
Protect your network against unauthorised access and network problems with DrayTek’s IP Conflict Prevention, 802.1X port authentication, DHCP Snooping, and Access Control Lists. Check the features sections for more information.
Smart Power over Ethernet
Provides ample power through Ethernet to each of the 8 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working.
Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.
ONVIF IP Camera Surveillance Management
Make IP camera management easier with detection and management of ONVIF cameras. View a topology of all cameras connected. PoE Device Check and Email Alerts with Camera Snapshot help to rapidly detect & troubleshoot problems.
Rack Mountable & Silent
Fit the VigorSwitch P2100 with the included rack mounting kit into any standard 19” rack. Fanless and silent, these switches are ideal for use in a quiet office or home environment.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.
8-Port Gigabit Layer 2+ Managed PoE+ Switch with 2 SFP Uplink Ports
The VigorSwitch P2100 is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security.
The VigorSwitch P2100 is able to power your network devices via Power over Ethernet, with a generous 140 watt power budget to provide power to each of its 8 PoE / PoE+ enabled Gigabit LAN ports.
The VigorSwitch P2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek’s central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek’s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Key Features
- Cloud Managed with VigorACS, or standalone operation
- ONVIF IP Camera Surveillance Management with Device Check
- 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
- VLAN Routing & Static Route with DHCP server / relay
- QoS for Application traffi c prioritisation
- 802.1x RADIUS / TACACS+ Port Authentication with Accounting
- Access Control List (ACL) Port Security
Description
Great Security FeaturesProtect your network against unauthorised access and network problems with DrayTek’s IP Conflict Prevention, 802.1X port authentication, DHCP Snooping, and Access Control Lists. Check the features sections for more information.
Smart Power over Ethernet
Provides ample power through Ethernet to each of the 8 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working.
Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.
ONVIF IP Camera Surveillance Management
Make IP camera management easier with detection and management of ONVIF cameras. View a topology of all cameras connected. PoE Device Check and Email Alerts with Camera Snapshot help to rapidly detect & troubleshoot problems.
Rack Mountable & Silent
Fit the VigorSwitch P2100 with the included rack mounting kit into any standard 19” rack. Fanless and silent, these switches are ideal for use in a quiet office or home environment.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.
8-Port Gigabit Layer 2+ Managed PoE+ Switch with 2 SFP Uplink Ports
The VigorSwitch P2100 is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security.
The VigorSwitch P2100 is able to power your network devices via Power over Ethernet, with a generous 140 watt power budget to provide power to each of its 8 PoE / PoE+ enabled Gigabit LAN ports.
The VigorSwitch P2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek’s central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek’s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+/L3 |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Technical details | |
| Form factor | 1U |
| Product colour | Black, Silver |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Port mirroring | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Jumbo frames | 9000 |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Security | |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | VigorACS, VigorConnect, Vigor Router Switch Management, IPv4 & IPv6 Dual-Stack, (CLI) via SSH/Telnet, OpenVPN Client, SNMP, SNTP, LLDP |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black, Silver |
| LED indicators | PoE |
| Rack mounting | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | PoE |
| Power | |
| Power consumption (max) | 164.3 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 140 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 319 mm |
| Depth | 208 mm |
| Height | 44 mm |
| Weight | 2.61 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
