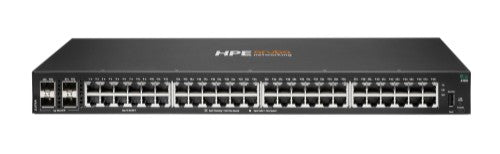

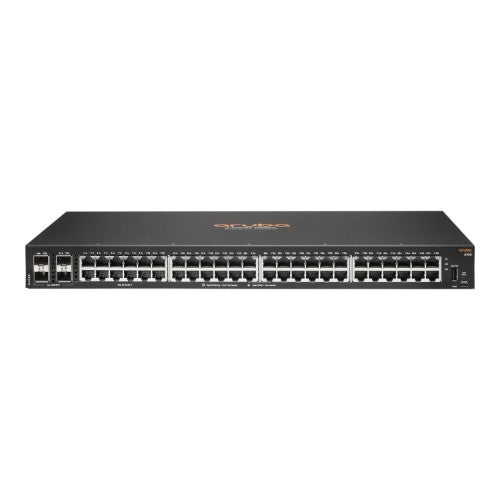

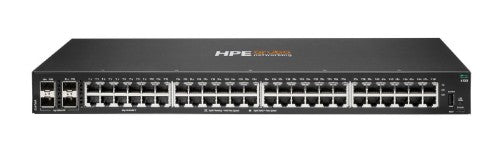

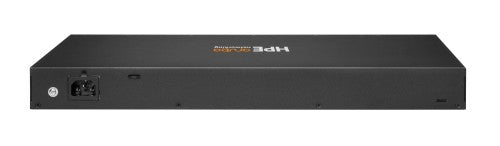

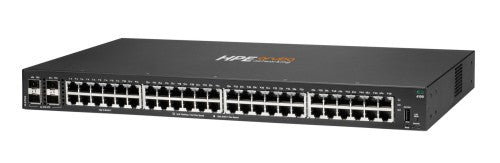

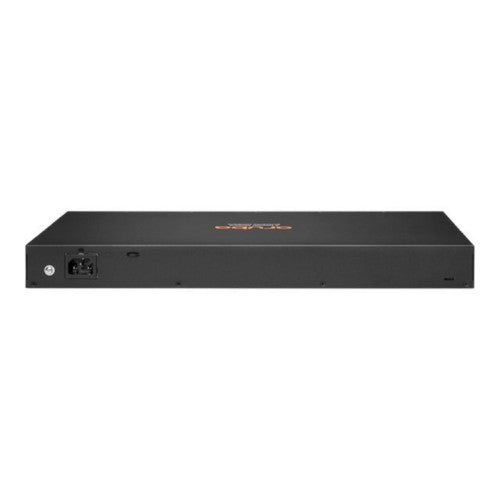

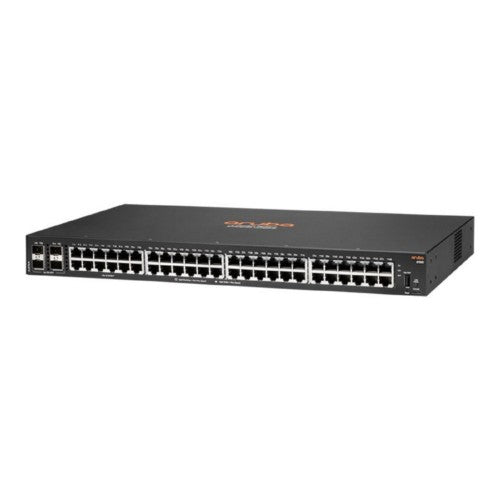

HPE Aruba Networking CX 6100 48G 4SFP+ Switch

Aruba Networking CX 6100 48G 4SFP+ Switch

Reasons To Buy

Entry-level Layer 2 access switches

The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high-speed uplinks and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
It has fully-managed enterprise-class switches deliver Layer 2 capabilities with support for static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow, and IPv6.
The CX 6100 series provides right-size deployment with choice of 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE.
It simplifies ownership with no switch software licensing or subscriptions required.

AI-ready performance and power

The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption needed for AI, Wi-Fi 7, and Internet of Things (IoT) requirements.
It has up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port supports newer Wi-Fi 7 and PoE devices.
The four built-in wire speed 1/10GbE uplinks mitigate bottlenecks at the access layer where users and devices connect.

Simplified configuration and management

The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industry-standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
The switch series offers unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
The CX 6100 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.

It offers virtual switching framework (VSF) stacking - Scale and simplicity

It support for up to eight switches (or members) in a stack through chain or ring topology.
It offers the flexibility to create stacks that span longer distances such as hundreds of meters across campuses to kilometers between sites.
It has the flexibility to mix 24 and 48-port modular and fixed CX 6100 models.
It has a simplified configuration and management as the switches act as a single chassis when stacked.

Description

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.

What is new supporting point:
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
It offers scalability with an 8-member switch virtual switching framework (VSF) stacking for up to 384 downlink ports
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
It has compact and fan-less 12-port PoE model for space-constrained deployments

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Data transmission
Throughput	98.6 Mpps
Latency (1 Gbps)	1.9 µs
Latency (10 Gbps)	1.8 µs
Packet buffer memory	12.38 MB
MAC address table	8192 entries
Switching capacity	176 Gbit/s
Jumbo frames support	Yes
Security
Access Control List (ACL)	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Airflow direction	Side-to-side airflow
Performance
Virtual stacking (units)	16
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Packet buffer memory	12.38 MB
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	44.2 W
Power supply included	Yes
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	44 mm
Depth	442 mm
Height	247 mm
Weight	3.4 kg
Technical details
Virtual stacking (units)	16
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	12.38 MB
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Logistics data
Harmonized System (HS) code	85176990
