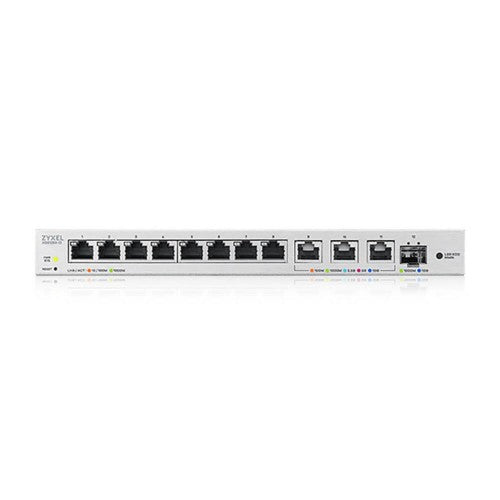

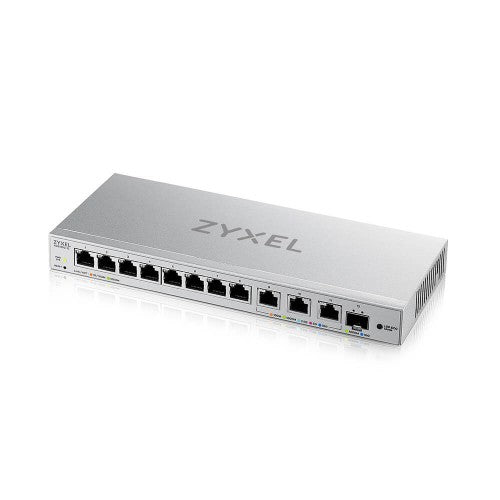

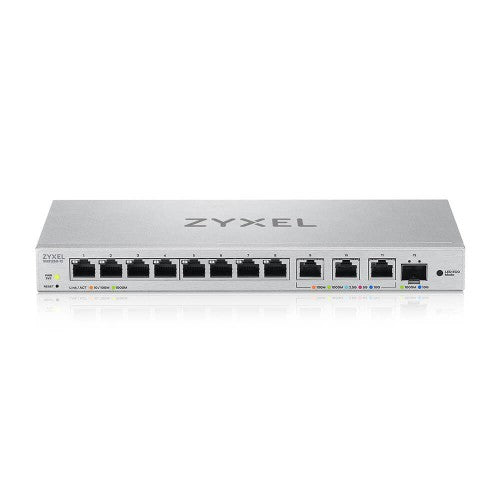

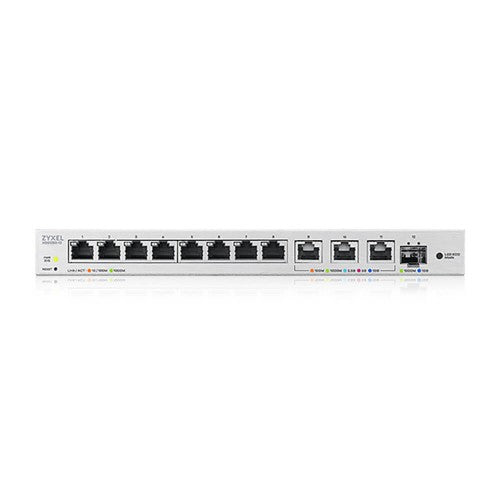

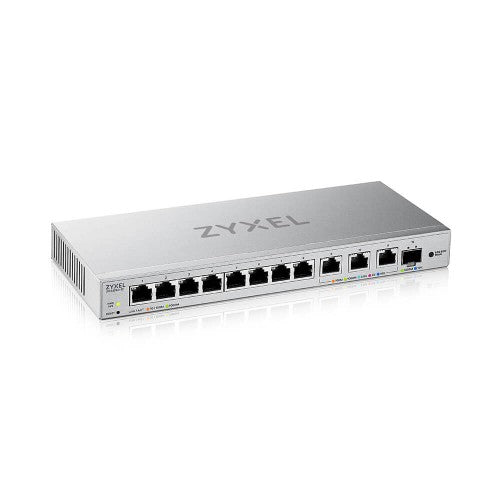

Zyxel XGS1250-12 Managed L2 10G Ethernet (100/1000/10000) Grey

12-Port Web-Managed Multi-Gigabit Switch includes 3-Port 10G and 1-Port 10G SFP+

Description

Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Agile Network Applications
Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.

Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work
With the built-in smart fan which is designed to automatically adjust speeds based on the device temperature, you can barely hear the sound while the switch is in operation. Also, you can deactivate the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode through the front panel button* or the web-based interface.

Specifications

Management features
Reset button	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L2
Ports & interfaces
SFP+ module slots quantity	1
Basic switching RJ-45 Ethernet ports quantity	11
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	12000
MAC address table	16000 entries
Switching capacity	96 Gbit/s
Jumbo frames support	Yes
Forwarding rate	71.42 Mpps
Security
IGMP snooping	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Wall mountable	Yes
Reset button	Yes
DIN rail mounting	No
Product colour	Grey
Stackable	No
LED indicators	Yes
Housing material	Aluminium, Iron
Rack mounting	No
Number of fans	1 fan(s)
Redundant fans support	Yes
Power
Power consumption (max)	20.06 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	250 mm
Depth	104 mm
Height	27 mm
Weight	783 g
Performance
Stackable	No
Harmonized System (HS) code	85176990
Technical details
Product colour	Grey
Stackable	No
Housing material	Aluminium, Iron
Rack mounting	No
Indication
LED indicators	Yes
Other features
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
