Alcatel-Lucent Enterprise | SKU:
OS6560-P48X4-US
Sold out
63% off

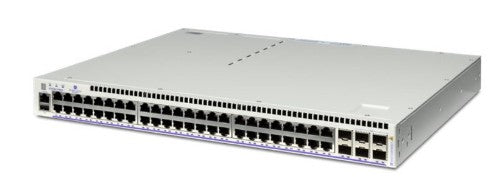

Alcatel-Lucent Enterprise OS6560-P48X4-US network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
€2,952.03
€8,039.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Alcatel-Lucent Enterprise OS6560-P48X4-US network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Gigabit fixed chassis in 1RU size. Includes 48 RJ-45 10/100/1G BaseT PoE+, 2xSFP(1G) and 4xSFP+ (1G/10G) uplink/stacking ports, 920W AC supply, power cord, user guides, and 19” rack mount hardware, US
Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks. The Alcatel-Lucent OmniSwitch 6560 family is embedded with the latest technology innovations, and offers maximum investment protection.
Description
The Alcatel-Lucent OmniSwitch™ 6560 Stackable Gigabit and Multi-Gigabit Ethernet LAN value switch family is an industry leading campus access solution for enterprise networks. With multi-gigabit ports for high-speed IEEE 802.11ac devices, 10 GigE uplinks and 20 GigE stacking, the OmniSwitch 6560 is the right solution for your next generation network.Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks. The Alcatel-Lucent OmniSwitch 6560 family is embedded with the latest technology innovations, and offers maximum investment protection.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 16000 entries |
| Switching capacity | 216 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of VLANs | 4000 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Internal memory | 1000 MB |
| Flash memory | 2000 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 4.68 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Internal memory | 1000 MB |
| Flash memory | 2000 MB |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
