HPE Aruba Networking Aruba 5406R Managed L3 4U Grey

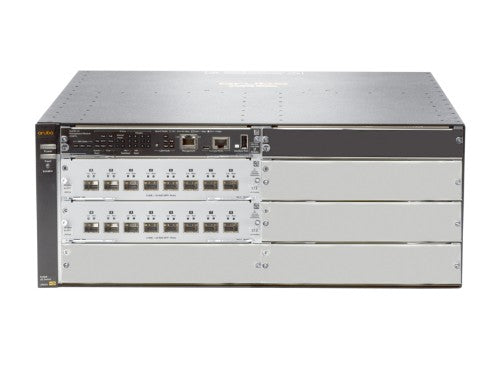

Aruba 5406R 16-port SFP+ (No PSU) v3 zl2 Switch

Description

The Aruba 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks. This advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Dynamic Segmentation, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40GbE, robust QoS and security and requires no software licensing. The 5400R is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

Features

Power and Innovation For Your Digital Workplace
- The Aruba 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HPE Smart Rate multi-gigabit ports for high-speed connectivity for the latest 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to mobile campus networks.
- Based on the 6th generation ProVision ASIC, the Aruba 5400R has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency and built-in programmable and easy to use REST API interface that provides configuration automation for Mobile-first campus networks.
- Flexible connectivity options with 6- or 12- slot compact chassis, support for line rate 40GbE uplinks, up to 96 line rate 10GbE ports (SFP+ and 10GBASE-T), 1GbE and up to 288 ports of PoE+ with internal power supplies.
- Optimized for the digital workplace with unified management and security tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, VRRP, OSPF, Tunnel Node and robust QoS.

Resiliency and High Availability at the Edge
- The Aruba 5400R zl2 Switch Series using the sixth generation ProVision ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
- Uninterrupted switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
- Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.
- Redundant management and power systems enhance system availability and continuity of operations. Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
- Virtual Switching Framework (VSF) virtualizes up to two physical switches into one logical device for simpler, flatter, more agile networks. Fast Software Upgrade minimizes downtime during upgrade on 5400R VSF stack.

Robust Security and Dynamic Quality of Service (QoS)
- The Aruba 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
- Flexible authentication options include 802.1X, MAC and Web delivering greater policy-driven application security. Industry standard MACsec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
- Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.
- Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access. Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.
- Tunnel Node to transport network traffic to Aruba controller with authentication and network policies applied and enforced at the controller.

Simplify with Integrated Wired/Wireless Management
- The Aruba 5400R zl2 Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba AirWave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Aruba Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
- Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.

Specifications

Network
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Auto-sensing	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3bz
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	10000
Link aggregation	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
IPv4 & IPv6 features
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Technical details
Form factor	4U
Product colour	Grey
Processor frequency	1200 MHz
Rack mounting	Yes
Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
SFP+ module slots quantity	16
Basic switching RJ-45 Ethernet ports type	No
Data transmission
Throughput	571.4 Mpps
Latency (1 Gbps)	2.8 µs
Latency (10 Gbps)	1.8 µs
MAC address table	64000 entries
Switching capacity	960 Gbit/s
Jumbo frames support	Yes
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
Security algorithms	SNMPv3, SSH-2
Authentication type	RADIUS
Protocols
Routing protocols	IP, OSPFv3, RIP-1, RIP-2
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Memory
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Design
Form factor	4U
Product colour	Grey
Rack mounting	Yes
Performance
Processor frequency	1200 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Power
Power supply included	No
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Heat dissipation	2450 BTU/h
Weight & dimensions
Width	444.5 mm
Depth	450.9 mm
Height	175.3 mm
Weight	12.8 kg
