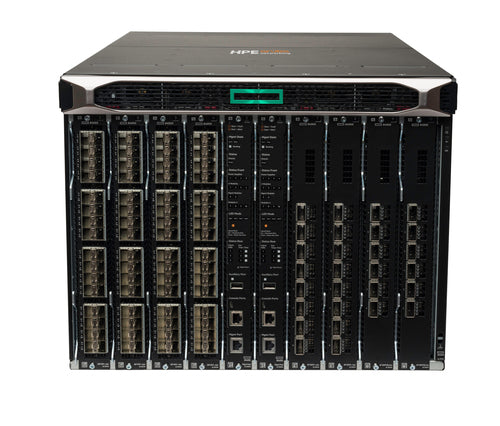

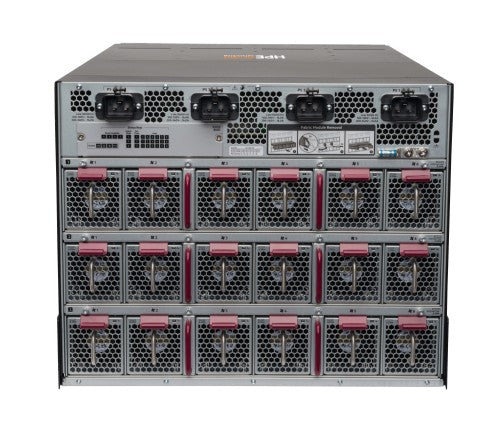

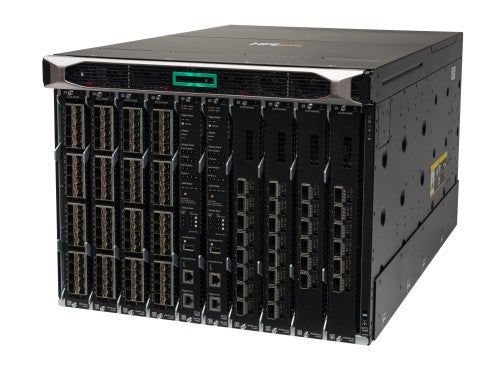

HPE Aruba Networking CX 8400 1x Mgmt 3x PS 2x 8400X Fabric 1x 32p 10G 1x 8p 40G Module Bundle

Aruba Networking CX 8400 1x Mgmt 3x PS 2x 8400X Fabric 1x 32p 10G 1x 8p 40G Module Bundle

Reasons To Buy

Game-changing business agility

HPE Aruba Networking CX 8400 Switch Series is a core and aggregation switch solution with an innovative and powerful approach to address the new applications, security and scalability demands of the mobile-cloud and Internet of Things (IoT) era.
Fully programmable with HPE Aruba Networking CX Switch Operating System (AOS-CX), it brings automation and visibility and helps troubleshoot through simple scripting.
HPE Aruba Networking CX Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple Python agents and REST APIs.
High-availability, high-speed architecture with 19.2 Tbps switching capacity for uninterrupted networking.
Robust security and quality of service (QoS) with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, VRF and IPv6.

Modern software system simplifies and automates

The CX 8400 series is based on AOS-CX, a modern software system for the core that automates and simplifies many critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events.
The built-in time series database (TSDB) enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.
It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.
It delivers enhanced fault tolerance and facilitates nearly continuous operation and zero service disruption during planned or unplanned control-plane events.
Advanced AI-powered insights and automated actions with rich telemetry data to optimize network performance and faster response to identified problems along with proactive prediction and prevention so that potential problems impacting CPU, ports, PoE, and more can be mitigated.

High performance and carrier-class high availability

The CX 8400 series includes a high-speed, fully distributed architecture and provides up to 19.2 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.
High availability with HPE Aruba Networking Virtual Switching Extension (VSX) is designed to deliver continuous availability and virtualization and simplicity requirements unique to the core of the network. Redundant and hot-swappable power supplies and fans provide additional resiliency.
Scalable, compact 8U chassis delivers industry-leading line rate 10/25/40/100GbE port density, very low latency, and scalability ideal for the campus core.

Description

The HPE Aruba Networking CX 8400 Switch Series is a campus core and aggregation switch and a game‑changing solution offering a flexible, innovative approach to address the new application, security and scalability demands of the mobile‑cloud and Internet of Things (IoT) era. The CX 8400 series also serves as a data center switch in a core/aggregation or a leaf/spine topology. The CX 8400 series provides carrier-class high availability with industry‑leading line rate 10/25/40/100GbE connectivity in a compact 8 slot chassis. It provides up to 19.2 Tbps of switching capacity based on a fully resilient design that includes redundant fabric, management, power and fans to create a resilient, highly available network that is ideal for the most demanding campus core and data center networks. It is based on the HPE Aruba Networking CX Switch Operating System (AOS-CX), a software that automates and simplifies critical and complex network tasks.

What is new supporting point:
High performance 19.2 Tbps switching (1.2 Tbps/slot) capacity. Carrier‑class high availability with HPE Aruba Networking Virtual Switching Extension (VSX), redundant management, power, and fabric
HPE Aruba Networking CX Switch Operating System (AOS‑CX) enables automation and programmability using built‑in REST APIs and Python scripts
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking CX Network Analytics Engine (NAE)
HPE Aruba Networking Switch Multi‑Edit Software supports automated configuration and verification
Compact 8U chassis with high density, line rate 10/25/40/100GbE connectivity
Advanced Layer 2/3 feature set includes BGP, EVPN, VXLAN, IGMP, OSPF, VRF, and IPv6

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber optic connector	QSFP28, SFP, SFP+
I/O ports	8 I/O module slots Ships with 32 10 GbE (SFP/SFP+) and 6 40/100 GbE (QSFP28) ports. Supports a maximum of 256 10 GbE (SFP/SFP+) ports, or 64 40 GbE (QSFP+) ports, or 48 ports 40/100 GbE (QSFP28), or a combination.
Network
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Data transmission
Throughput	7142 Mpps
Switching capacity	19200 Gbit/s
Jumbo frames support	Yes
Design
Stackable	Yes
Rack mounting	Yes
Performance
Processor frequency	2200 MHz
Built-in processor	Yes
Stackable	Yes
Power
Power consumption (max)	2750 W
Power supply included	Yes
AC input voltage	90 - 264 V
AC input frequency	47 - 63 Hz
Power consumption (typical)	2750 W
Number of power supply units	3
Power consumption note	2750W
Power source	AC
Power supply note	4 power supply slots 2 minimum power supply required for a fully loaded chassis (or with 8 line modules) HPE Aruba Networking X382 54VDC 2700W AC Power Supply (JL372A)
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Performance management	SNMP RJ-45 for serial console USB Type-A for file management only RJ-45 Ethernet for OOBM
Memory and processor	Intel Xeon D-15xx (Intel Broadwell-DE), 4 cores, 2.2 GHz, 32 GB GDDR5 DRAM (2 x 16 GB), SSD 120 GB, 6 Gb/s SATA M.2
Fan	Included with JL376A
Ethernet interface type	10 Gigabit Ethernet, 40 Gigabit Ethernet
Weight (imperial)	74.4 kg (164 lbs)
I/O ports	8 I/O module slots Ships with 32 10 GbE (SFP/SFP+) and 6 40/100 GbE (QSFP28) ports. Supports a maximum of 256 10 GbE (SFP/SFP+) ports, or 64 40 GbE (QSFP+) ports, or 48 ports 40/100 GbE (QSFP28), or a combination.
Dimensions (W x D x H) (imperial)	330.2 x 442 x 660.4 mm (13 x 17.4 x 26")
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	330 mm
Depth	442 mm
Height	660 mm
Weight	74 kg
Weight (imperial)	74.4 kg (164 lbs)
Dimensions (W x D x H) (imperial)	330.2 x 442 x 660.4 mm (13 x 17.4 x 26")
Optical fiber
Fiber optic connector	QSFP28, SFP, SFP+
Technical details
Stackable	Yes
Processor frequency	2200 MHz
Rack mounting	Yes
Built-in processor	Yes
