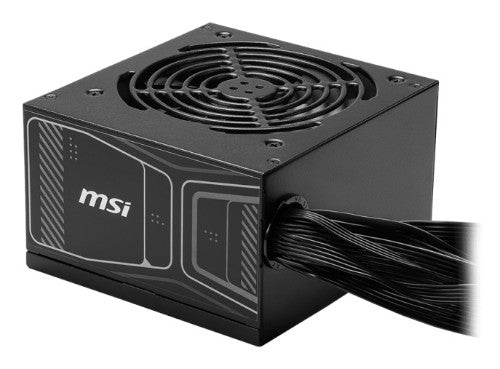

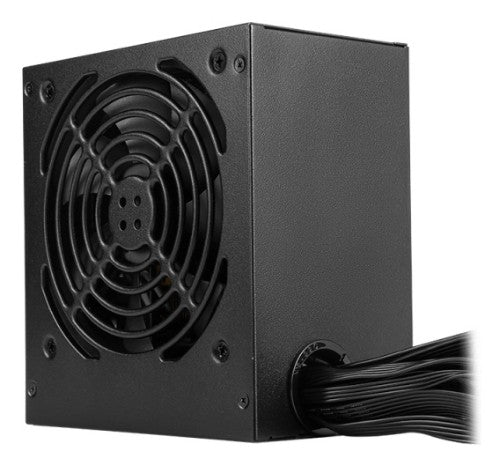

MSI MAG A750GN PCIE5 (UK) power supply unit 750 W 24-pin ATX ATX Black

750W, 47-63Hz, 120 mm, 80 PLUS Gold, ATX, 140 x 150 x 86 mm

Key Features

• ATX 3.1 ready, native PCIe 5.1 connector
• Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
• 105°C main capacitor
• 80 Plus Gold certified for high efficiency with Active PFC design
• Industrial level protection with OVP, OCP, OPP, OTP, SCP
• 120 mm Sleeve Bearing Fan
• Full Bridge Topology with DC-DC module design

Description

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

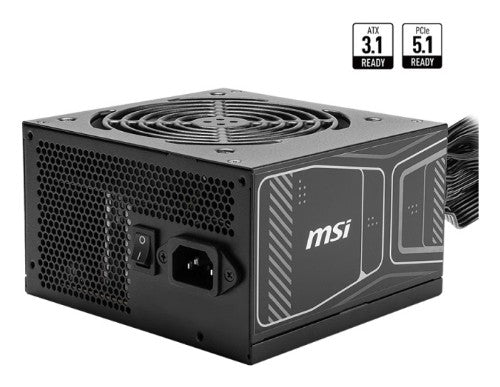

ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.

POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.

SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

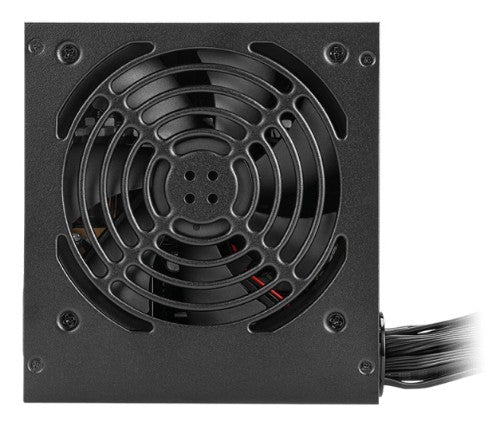

FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.

Capacitors You Can Trust
The 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.

CERTIFIED CABLE
This power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges.

PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

Connectors
This power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze.

Specifications

Cooling
Fan diameter	12 cm
Fan speed	500 - 1800 RPM
Cooling type	Active
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	12 cm
Illumination	No
Fan speed	500 - 1800 RPM
Cooling type	Active
Power
Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	750 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under temperature
Efficiency	90%
Ports & interfaces
Motherboard power connector	24-pin ATX
Number of SATA power connectors	4
Peripheral (Molex) power connectors (4-pin)	2
EPS power connector (8-pin)	No
PCI Express power connectors (6-pin)	0
PCI Express power connectors (6+2 pin)	2
PCI Express power connectors (8-pin)	0
CPU P4 connector (4-pin)	0
PCI Express connector	Yes
ATX Power connector (24-pin)	Yes
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (16-pin)	1
PCI Express power connectors (12+4 pin)	0
PCI Express power connectors (12-pin)	0
Number of EPS connectors	2
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Gold
