Multibrackets M Wallmount Pro MBW1UP 400x600 Fixed Black

M Wallmount Pro MBW1UP 400x600 Fixed Black - Wall mount for LCD display, steel, 1 screen, single side, fixed, VESA Max 400x600 - screen size: 40"-100" - black

Key Features

• A flexible system product ideal for video walls and menuboards
• Includes VESA adapters for compatibility up to VESA 400x600
• Module based aluminum rails creates desirable length without cutting
• Integrated cable management throughout the entire solution
• Power click install for an easy, fast and safe installation
• Dual wallplates included
• Portrait or landscape position of screen possible
• Hardware kit included

Description

Multibrackets Pro Series M Wallmount Pro MBW1UP 400x600 Fixed Black is our innovative - ready to be installed Single-Display Wallmount.

The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW1UP 400x600 Fixed Black is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.

Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.

The Pro Series includes hardware so that a basic installation should not be a hassle.

Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	101.6 cm (40")
Panel mounting interface	100 x 100,100 x 200,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,400 x 600
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 600 mm
Maximum screen size	2.54 m (100")
Maximum weight capacity	80 kg
Ergonomics

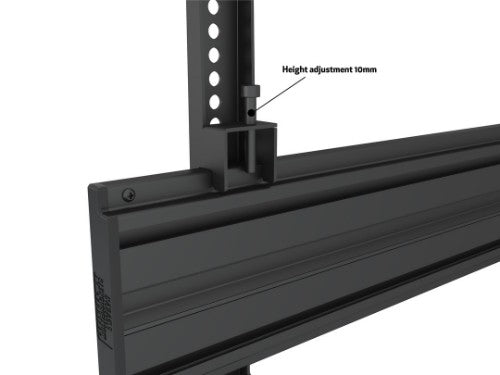

Height adjustment	Yes
Cable management	Yes
Technical details
Cable management	Yes
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Plastic packaging weight	0 g
Metal packaging weight	0 g
Paper/cardboard packaging weight	300 g
Design
Cable management	Yes
Certification	CE
Product colour	Black
Housing material	Aluminium, Plastic, Steel
Certificates
Certification	CE
Features
Compatible products	LG 88BH7F-B
Weight & dimensions
Width	480 mm
Height	645 mm
Weight	3.2 kg
Depth (min)	6.3 cm
Aluminium content weight	1.2 kg
Steel content weight	3.2 kg
Other metals content weight	0 g
Packaging data
Package width	205 mm
Package depth	645 mm
Package height	63 mm
Package type	Box
Package weight	3.5 kg
Logistics data
Products per shipping (inner) case	1 pc(s)
Other features
Mounting type	Wall
