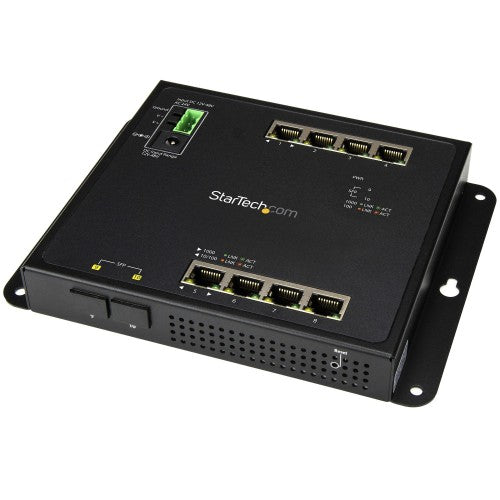

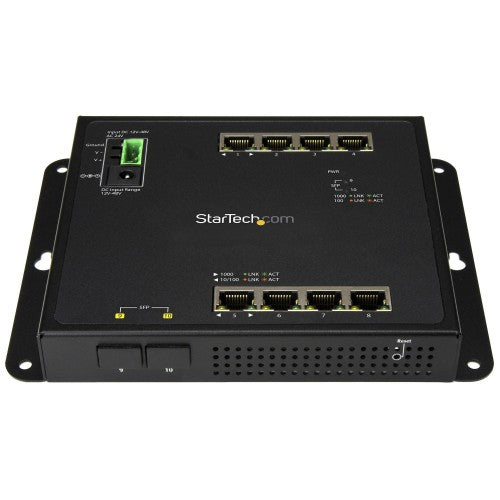

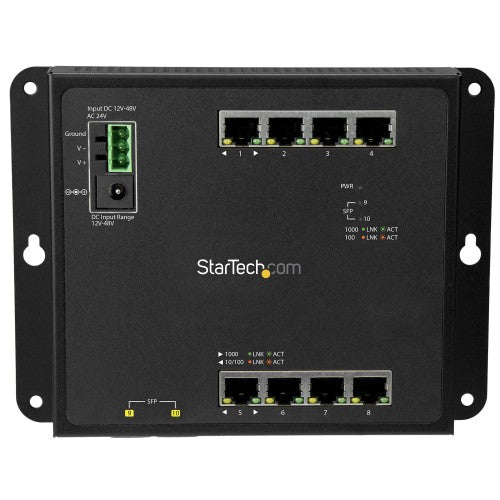

StarTech.com Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots - Hardened GbE L2 Managed Network Switch - Rugged RJ45 LAN Layer 2 Switch Din Rail Wall Mount IP-30/-40C to 75C

StarTech.com Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots - Hardened GbE L2 Managed Network Switch - Rugged RJ45 LAN Layer 2 Switch Din Rail Wall Mount IP-30/-40C to 75C (IES101G2SFPW)

Key Features

• FLAT DESIGN: Industrial 8 Port Gigabit Ethernet Switch with 2 MSA Open SFP Slots .Compact housing allows for front access, easy installation & troubleshooting; DIN rail or wall mountable
• FULL LAYER 2 MANAGEMENT CAPABILITIES: Through built in web-based GUI/Telnet/SSH; Switch can be managed to configure features like Ports/VLAN/Link Aggregation/SNMP/QoS/Spanning Tree among others
• TECH SPECS: 8 + 2 port Gigabit switch / 8 x RJ45 / 2 x Open SFP slot (MSA Compliant) / 12-48VDC power input / 10/100/1000 Mbps auto / Redundant power inputs w/terminal block kit or using incl AC adapter
• ROBUST DESIGN: Steel housing with IP-30/vibration/shock/free fall ratings and 6kV ESD; Operating temperature range of -40C to 75C w/ MTBF of 500,000+ hrs using MIL-HDBK-217F @ 25C; RJ45 dust caps incl
• STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This L2 Gigabit network switch is backed for 2-years by StarTech.com, including 24/5 North America based multi-lingual tech support

Description

Wall Mount Ethernet Switch | 10/100/1000Mbps | 8 RJ45 Ports | L2 Managed

Add eight copper Gigabit Ethernet (GbE) connections and two open SFP slots to your network with this 8-Port Gigabit Ethernet Switch. The rugged switch makes it easy to deploy or scale your network.

Expand Your Network

This versatile GbE switch adapts to your network needs by adding two open SFP slots and eight RJ45 Ethernet ports, providing both fiber and copper connections in a single network switch. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch allows you to connect up to eight RJ45 devices, so different users can share files and devices, such as printers and scanners, over a LAN connection, and share two devices in the open SFP slots.

Intelligent Layer 2 Management

This Layer 2 switch delivers efficient and stable performance, with Layer 2 management capabilities. It controls packet traffic on a busy network, and customizes settings to achieve optimal network performance.

Reliable Network Performance

table, th, td {
border: none;
}

✔ 10/100/1000 Mbps transfer speeds

✔ Jumbo frames

✔ Redundant 12-58V DC terminal block

✔ Full/half-duplex auto-negotiation

✔ Auto MDI/MDIX operation

✔ IPv4 and IPv6 dual stack management

✔ Link aggregation

✔ VLAN tagging

✔ Spanning tree protocol

Compact, Mountable and Rugged Design

At only 5.5 x 7 in. and 1.375 lb., the industrial managed Ethernet switch is designed to be wall or DIN-rail mounted in tight spaces that are exposed to significant electromagnetic interference, while providing easy port access. The IP30-rated metal housing and extended operating temperature range of -40°C to 75°C makes it ideal for harsh environments.

StarTech.com offers a wide variety of network switches, making it easy to expand your network connections and provide power to devices in hard-to-power locations. This wall-mount Ethernet switch is backed by a 2-year warranty and free lifetime North American based Technical Support.​

The StarTech.com Advantage

Specifications

Ports & interfaces
Terminal block port	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-SX, 1000BASE-T
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Virtual LAN features
Virtual LAN features	Tagged VLAN
Technical details
Product colour	Black
Mean time between failures (MTBF)	100000 h
Housing material	Steel
Management features
Switch type	Managed
Switch layer	L2
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-SX, 1000BASE-T
Networking standards	IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Spanning tree protocol	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features	Tagged VLAN
Data transmission
Jumbo frames	9000
Store-and-forward	Yes
Jumbo frames support	Yes
Security
Access Control List (ACL)	Yes
Certificates
Certification	RoHS, CE, FCC
Design
Wall mountable	Yes
International Protection (IP) code	IP30
Product colour	Black
LED indicators	Activity, Link
Housing material	Steel
Certification	RoHS, CE, FCC
Performance
Maximum data transfer rate	2000 Mbit/s
Maximum cable length	100 m
Buffer size	512 KB
Mean time between failures (MTBF)	100000 h
Indication
LED indicators	Activity, Link
Power
Output voltage	12 V
Power plug type	Type M
Output current	1.5 A
Power supply included	Yes
AC input voltage	100 - 240 V
Operational conditions
Storage temperature (T-T)	-40 - 90 °C
Operating temperature (T-T)	-40 - 75 °C
Weight & dimensions
Width	139 mm
Depth	178 mm
Height	30 mm
Weight	626 g

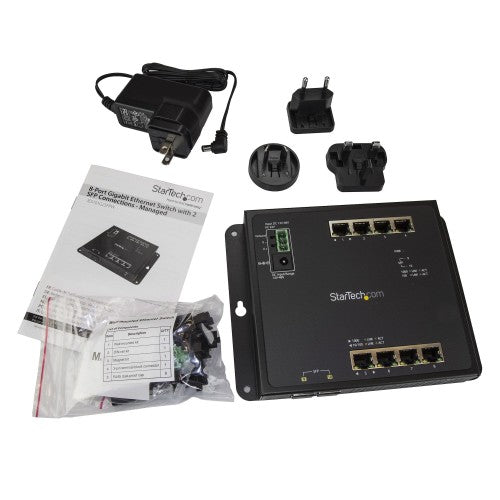

Packaging data
Terminal block included	Yes
AC adapter included	Yes
Washers included	Yes
Screws included	Yes
Pinlock included	Yes
Dust cap included	Yes
DIN rail included	Yes
Quick start guide	Yes
Package width	173 mm
Package depth	303 mm
Package height	91 mm
Package weight	1.11 kg
Logistics data
Master (outer) case width	342 mm
Master (outer) case length	369 mm
Master (outer) case height	474 mm
Products per master (outer) case	10 pc(s)
Other features
Terminal block port	Yes
Packaging content
Terminal block included	Yes
AC adapter included	Yes
Washers included	Yes
Screws included	Yes
Pinlock included	Yes
Dust cap included	Yes
DIN rail included	Yes
Quick start guide	Yes
