StarTech.com USB 3.0 to SATA IDE HDD Docking Station for 2.5in or 3.5in Hard Drive

USB 3.0 - SATA IDE HDD Docking Station, Black

Description

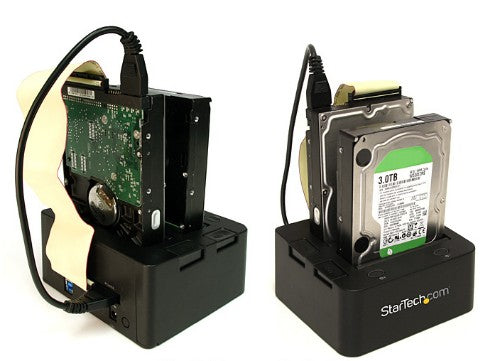

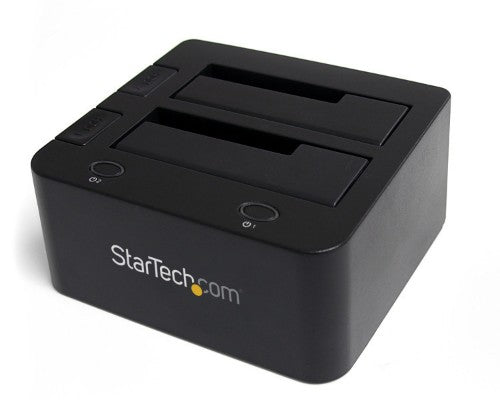

The UNIDOCK3UGB USB 3.0 to SATA/IDE Hard Drive Docking Station delivers instant access to 2.5-inch and 3.5-inch IDE and SATA hard drives through two top loading drive slots - one for Serial ATA drives and one for IDE drives - instead of having to mount the drives into a computer or external enclosure/tray.

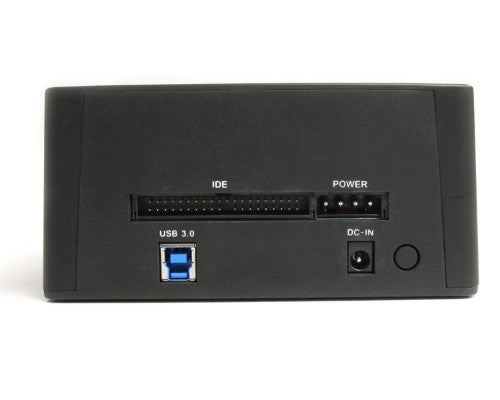

The slot-loading design holds the SATA and IDE drive(s) upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.

Connected to the host computer through a single USB 3.0 connection, both an IDE hard drive and a SATA hard drive (SATA, SATA II, SATA III) can be connected to the HDD dock simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa, or simply harnessing fast and simple access to the contents on both hard drives.

- Top slot-loading SATA and IDE drive bays
- SuperSpeed USB 3.0 compliant host interface, which supports transfer rates up to 5 Gbps
- Patented drive ejection mechanism for SATA drives
- Combined power switch and status LED for each drive
- Compatible with PATA (IDE) 66/100/133 MBps hard drives
- Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives
- Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD)
- Compact, desktop-style form factor
- Plug-and-Play and hot-swap compatible

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	0
USB connector type	USB Type-B
DC-in jack	Yes
Performance
Product colour	Black
Plug and Play	Yes
LED indicators	Yes
Data transfer rate	5 Gbit/s
Certification	CE, FCC
Housing material	Plastic
Technical details
Product colour	Black
Plug and Play	Yes
Data transfer rate	5 Gbit/s
Compliance certificates	RoHS
Storage
Number of HDDs supported	2
Supported HDD sizes	2.5,3.5"
Supported HDD interfaces	Serial ATA
Power
Output voltage	12 V
Output current	3 A
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	5 - 80 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	8 - 90%
Weight & dimensions
Weight	610 g
Width	130 mm
Depth	140 mm
Height	70 mm
Package weight	1.12 kg
Design
Product colour	Black
LED indicators	Yes
Certification	CE, FCC
Packaging data
Package weight	1.12 kg
Packaging content
AC adapter included	Yes
Hard drive
Number of HDDs supported	2
Supported HDD sizes	2.5,3.5"
Supported HDD interfaces	Serial ATA
Certificates
Certification	CE, FCC
Other features
Interface	USB
Compatible operating systems	Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2 Mac OS X Linux
Chipset	JMicron JMS551
