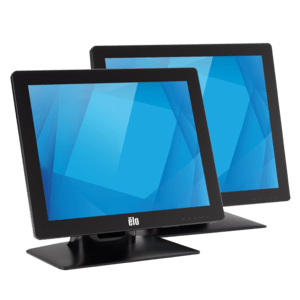

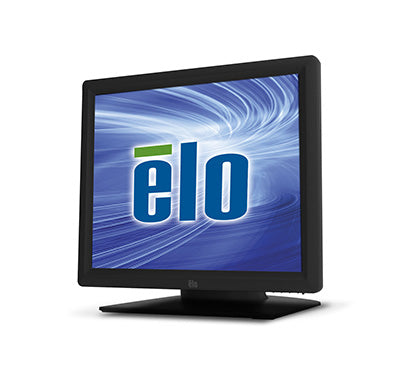

Elo Touch Solutions 1517L Rev B 38.1 cm (15") LCD 225 cd/m² Black Touchscreen

15.0" TFT, 1024 x 768px, 16 ms, 700:1, 225 cd/m², black

Description

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.

Specifications

Display
LED backlight	Yes
Display number of colours	16.78 million colours
Touchscreen	Yes
Display technology	LCD
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Display brightness	225 cd/m²
Response time	16 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	160°
Viewing angle, vertical	140°
Vertical scan range	56 - 75 Hz
Supported graphics resolutions	720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Native aspect ratio	4:3
Horizontal scan range	31.5 - 60 kHz
Native refresh rate	60 Hz
Design
Product colour	Black
Panel mounting interface	75 x 75 mm
Screen shape	Flat
Performance
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	8
Power
Power consumption (typical)	12 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width (with stand)	358 mm
Height (with stand)	319 mm
Depth (with stand)	197 mm
Weight (with stand)	4.3 kg
Packaging data
Package width	487 mm
Package depth	231 mm
Package height	485 mm
Package weight	7.3 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Logistics data
Harmonized System (HS) code	85285210
Features
Harmonized System (HS) code	85285210
Technical details
Power supply type	AC/DC
Dimensions (W x D x H) with stand	358 x 197 x 319 mm
Display viewable area (HxV)	228 x 304 mm
Weight (with stand)	4.3 kg
Other features
Power supply type	AC/DC
Dimensions (W x D x H) with stand	358 x 197 x 319 mm
Display viewable area (HxV)	228 x 304 mm
Width (with stand)	358 mm
Voltage tolerance	5%
Mean time between failures (MTBF)	50000 h
Height (with stand)	319 mm
Display technology	LCD
Depth (with stand)	197 mm
Aspect ratio	4:3
Weight (with stand)	4.3 kg
