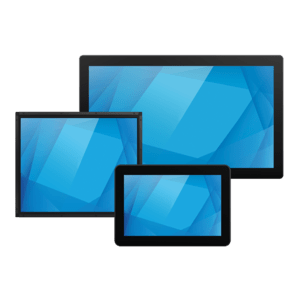

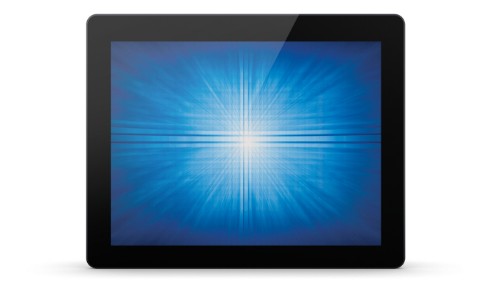

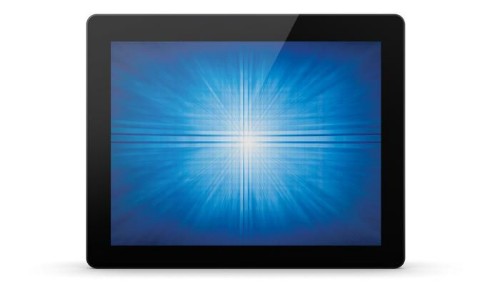

Elo Touch Solutions 1590L 38.1 cm (15") LCD 240 cd/m² Black Touchscreen

1590L Open Frame Touchscreen (Rev B), 15" LCD (LED) 1024x768, 5-Wire Resistive (AccuTouch) Single-Touch, HDMI, VGA, Display Port

Description

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Specifications

Display
LED backlight	Yes
Display number of colours	16.2 million colours
Touchscreen	Yes
Display technology	LCD
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Display brightness	240 cd/m²
Response time	16 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160°
Viewing angle, vertical	150°
Vertical scan range	50 - 75 Hz
Horizontal scan range	30 - 60 kHz
Touchscreen technology	Projected capacitive system
Native refresh rate	60 Hz
Ports & interfaces
DisplayPorts quantity	1
HDMI ports quantity	1
Design
Product colour	Black
Panel mounting interface	75 x 75,100 x 100 mm
VESA mounting	Yes
Screen shape	Flat
Wall mountable	Yes
Performance
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Power consumption (off)	0.5 W
Power consumption (typical)	12.5 W
Packaging data
Package width	434 mm
Package depth	175 mm
Package height	375 mm
Package weight	4.7 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95%
Technical details
VESA mounting	Yes
Power supply type	DC
Depth (without stand)	35.6 mm
Weight (without stand)	2.9 kg
Height (without stand)	284.9 mm
Full HD	No
Display viewable area (HxV)	304.1 x 228.1 mm
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85285210
Features
Harmonized System (HS) code	85285210
Wall mountable	Yes
Other features
Power supply type	DC
Depth (without stand)	35.6 mm
Weight (without stand)	2.9 kg
Height (without stand)	284.9 mm
Display viewable area (HxV)	304.1 x 228.1 mm
Mean time between failures (MTBF)	50000 h
Display technology	LCD
Digital vertical frequency	50 - 75 Hz
Digital horizontal frequency	30 - 60 kHz
Built-in camera	No
Backlight type	LED
Aspect ratio	4:3
