Elo Touch Solutions | SKU:
E326347

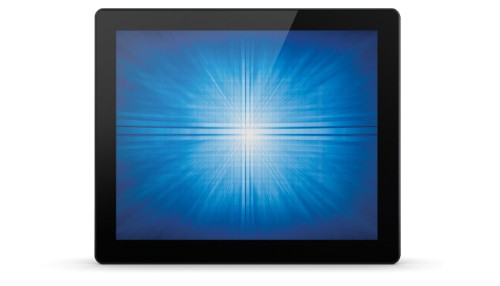

Elo Touch Solutions 1790L 43.2 cm (17") LCD/TFT 200 cd/m² Black Touchscreen
€478.57
Unit price
/
Unavailable
Shipping calculated at checkout.
Elo Touch Solutions 1790L 43.2 cm (17") LCD/TFT 200 cd/m² Black Touchscreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
1790L Open Frame Touchscreen (Rev B), 17" LCD (LED) 1280x1024, 5-Wire Resistive (AccuTouch) Single-Touch, HDMI, VGA, Display Port
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Description
The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.78 million colours |
| Touchscreen | Yes |
| Display technology | LCD/TFT |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 200 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 30 - 82 kHz |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 17.8 W |
| Packaging data | |
| Package width | 476 mm |
| Package depth | 183 mm |
| Package height | 418 mm |
| Package weight | 5.6 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | DC |
| Weight (without stand) | 3.6 kg |
| Full HD | No |
| Display viewable area (HxV) | 337.92 x 270.336 mm |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | DC |
| Weight (without stand) | 3.6 kg |
| Display viewable area (HxV) | 337.92 x 270.336 mm |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD/TFT |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 82 kHz |
| Built-in camera | No |
| Backlight type | LED |
| Aspect ratio | 5:4 |
