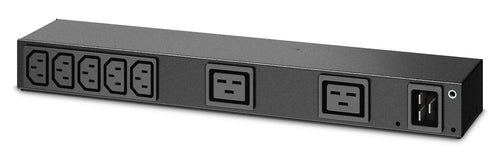

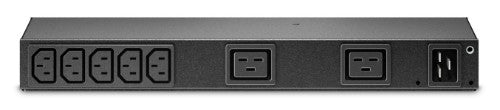

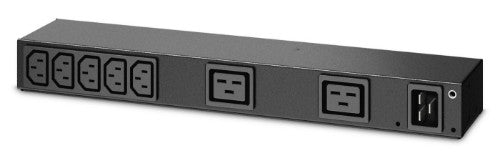

APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black
APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black is backordered and will ship as soon as it is back in stock.
Order Delivery Notice: Thursday 18th December is the last day for orders before Christmas.
Any orders placed after Thursday 18th December will be despatched on Monday 5th January 2026.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Description
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Basic |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | UL/C-UL, VDE, CE |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| AC outlets quantity | 7 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Features | |
| Certification | UL/C-UL, VDE, CE |
| Power | |
| Maximum power | 3680 W |
| Nominal input voltage | 100-240 V |
| Nominal output voltage | 100-240 V |
| Maximum current | 20 A |
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL/C-UL, VDE, CE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 1.56 kg |
| Width | 4.36 mm |
| Depth | 9.29 mm |
| Height | 38.8 mm |
| Technical details | |
| Compliance certificates | RoHS |
