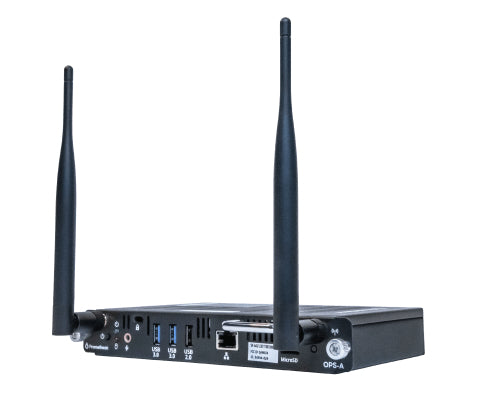

Promethean OPS-A 1.6 GHz ARM 32 GB eMMC 4 GB

ARM Cortex A55 x 4 (1.6 GHz), Android 12 OS, 4 GB LPDDR4, 32 GB eMMC PCIe M.2, Bluetooth 5.2

Description

Bring your ActivPanel LX to life
Our OPS-A computing module, an Android 12 device, was built specifically for use with the ActivPanel LX. With this cost-effective, powerful device, you can create an intuitive, seamless user experience for both teachers and students.

Your favorite apps right on the panel
The OPS-A comes preloaded with the most
popular apps, including apps found on the Google Play Store and Promethean apps such as Annotate, Screen Capture, Screen Share, Spinner, Timer,
and Whiteboard.

Easy to use for both teachers and IT managers
Teachers will love the simple user interface and quick access to their most-used apps and prepared lesson content. IT staff will appreciate the easy set-up and management. Best of all, the OPS-A and ActivPanel LX combo requires minimal training.

A flexible solution that’s customizable
Because the OPS-A is Google certified, teachers can also access their favorite educational apps on the Google Play Store. IT admins have their choice of three panel management options: Promethean Admin Tools, Radix, and Google Admin.

Specifications

Processor
Processor frequency	1.6 GHz
Processor family	ARM
Memory
Internal memory	4 GB
Internal memory type	LPDDR4
Storage
Total storage capacity	32 GB
Card reader integrated	Yes
Storage media	eMMC
Compatible memory cards	MicroSD (TransFlash)
Graphics
On-board graphics card	Yes
Discrete graphics card	No
On-board graphics card family	ARM Mali
On-board graphics card model	ARM Mali-G52 MP1
Network
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
Ethernet LAN	Yes
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Performance
Product colour	Black
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Android 12
Operating system architecture	64-bit
Power
Power supply	90 W
Power consumption (standby)	0.5 W
DC input voltage	12 - 19 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	200 mm
Depth	120 mm
Height	30 mm
Weight	700 g
Package width	265 mm
Package depth	212 mm
Package height	50 mm
Package weight	840 g
Packaging content
Manual	Yes
