AOC AD110D0 monitor mount / stand 81.3 cm (32") Desk Black

AD110D0Dual monitor arm for up to 32“ displays

Reasons To Buy

C-Lamp or Grommet Mount attachment

Your new AOC monitor arm is guaranteed to fit onto your desk. With either the grommet mount or the c-lamp method, you can easily fasten the mount to your tabletop. Your monitor will be firmly secured and ready for every gaming action.

Swivel & Tilt

Some monitor stands come with a limited tilt and swivel range. Using a monitor arm increases your monitor’s range of motion dramatically:  You can tilt the monitor in a wide range so it points upwards or downwards for the optimal viewing angle. The integrated swivel enables you to turn the display horizontally.

Cable Management

Using the detachable covers on the monitor arm, simply push through your cables inside the pre-allocated routes in the monitor arm. After fitting both power and display cables inside, close the covers and experience a tidy desk with neatly organised connections. Cables are kept in place even when moving the display or turning it into portrait mode.

Vesa Connection

Any monitor equipped with a VESA mounting grid (100x100 or 75x75) can easily be attached to the monitor arm. The VESA mounting system is a widely used solution that most monitors are equipped with. Four screws hold the monitor securely to the mount, by its centre of gravity.

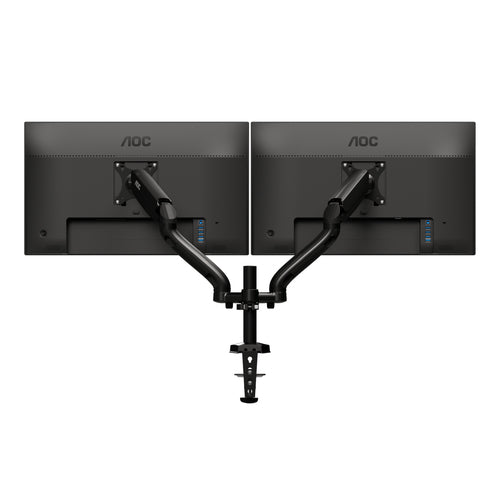

Double mount

Why limit yourself with one monitor if you can stream a game on your first screen while also interacting with your chat on the second? You can save desk space by going for a double mount and achieve a professional looking aesthetic for your gaming area.

Durable Mechanical Spring

A mechanical spring tensioning system is built into the upper arm to match the weight of the monitor. More than 30,000 exercise tests, safer and stronger.

Description

Dual monitor arm for up to 32“ displays
The gas-spring loaded, sleek AD100 dual monitor arm can be clamped to desks, holds two displays up to 32“ size. 360° pivot range, wide tilt range, 320 mm height range delivers huge flexibility.

Specifications

Mounting
Maximum weight capacity (per display)	9 kg
Desk thickness (min)	1.5 cm
Desk thickness (max)	8 cm
Minimum screen size	33 cm (13")
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Bolt-through
Maximum weight capacity	9 kg
Maximum screen size	81.3 cm (32")
Clamp mount desk thickness (max)	8 cm
Grommet mount desk thickness (max)	8 cm
Mounting hole range	7 - 87 mm
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	0 - 460 mm
Height adjustment	Yes
Height adjustment range	320 - 440 mm
Pivot angle	0 - 360°
Swivel angle range	-90 - 90°
Swivel angle	360°
Tilt angle range	-45 - 60°
Height adjustment type	Gas spring
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Aluminium
Technical details
Mounting type	Desk
Product colour	Black
Cable management	Yes
Warranty period	5 year(s)
Adjustment type	Gas spring
Height adjustment	32 cm
Weight (with stand)	5.7 kg
Weight & dimensions
Width	69 mm
Depth	12.5 mm
Height	24.5 mm
Weight	4.12 kg
Package width	125 mm
Package depth	690 mm
Package height	245 mm
Package weight	5.1 kg
Packaging data
Package width	125 mm
Package depth	690 mm
Package height	245 mm
Package weight	5.1 kg
Clamp included	Yes
Manual	Yes
Packaging content
Clamp included	Yes
Manual	Yes
Packaging content	User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials
Mounting kit	Yes
Other features
Height (max)	58 cm
Warranty period	5 year(s)
Mounting type	Desk
Mounting	Clamp/Bolt-through
Logistics data
Harmonized System (HS) code	85299097
