ARCTIC | SKU:
ACFAN00147A

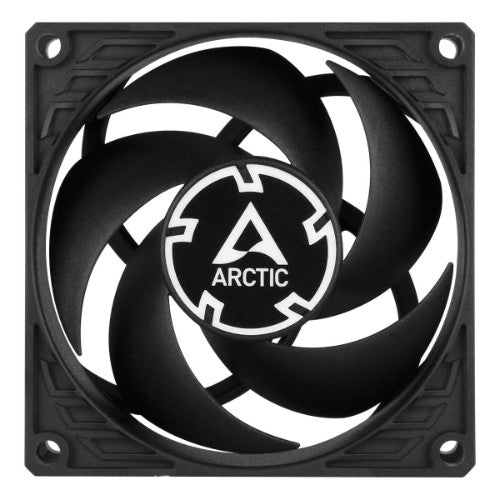

ARCTIC P8 - Pressure-optimised 80 mm Fan
€4.49
Unit price
/
Unavailable
Shipping calculated at checkout.
ARCTIC P8 - Pressure-optimised 80 mm Fan is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
80 x 25 mm, 3000 RPM, 23.4 CFM, 39.76 m³/h, 0.3 Sone, 12V DC, 81 g
Key Features
- Optimised for static pressure
- Ideal choice on heatsinks, radiators and (partly-)
- covered case vents
- Push- or pull-configuration possible
Reasons To Buy
Optimised for Static Pressure
During the development of the new P8, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 is particularly suitable for use on heatsinks and radiators.High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.Two Way Installation
Push warm air out of the case Pull cool air into your casDescription
Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well! As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 3-pin |
| Rotational speed (max) | 3000 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 23.4 cfm |
| Maximum air pressure | 1.9 mmH2O |
| Airflow | 39.76 m³/h |
| Number of fans | 1 fan(s) |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Number of fan blades | 5 |
| Design | |
| Fan connector | 3-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cable length | 0.4 m |
| Number of fan blades | 5 |
| Technical details | |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 23.4 cfm |
| Maximum air pressure | 1.9 mmH2O |
| Airflow | 39.76 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.4 m |
| Fan connector | 3-pin |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Ports & interfaces | |
| Fan connector | 3-pin |
| Power | |
| Voltage | 12 V |
| Rated current | 0.14 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 26 mm |
| Package width | 82.5 mm |
| Package height | 82.5 mm |
| Width | 80 mm |
| Package weight | 99 g |
| Depth | 25 mm |
| Height | 80 mm |
| Weight | 81 g |
| Cable length | 0.4 m |
| Packaging data | |
| Package depth | 26 mm |
| Package width | 82.5 mm |
| Package height | 82.5 mm |
| Package weight | 99 g |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
| Other features | |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
