Axis | SKU:
02172-002

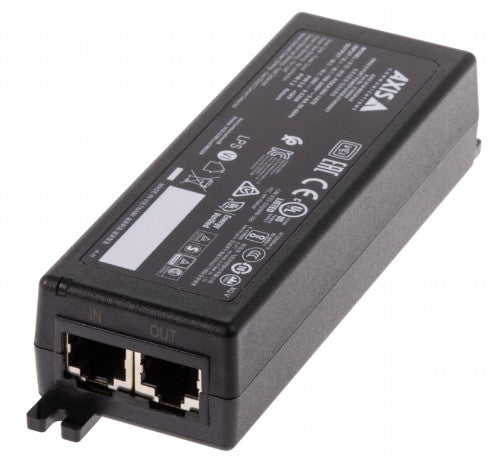

Axis 02172-002 security camera accessory Midspan
€88.80
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis 02172-002 security camera accessory Midspan is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
30W, 56V, 46x140.1x30mm, 145g
Key Features
- 10/100/1000 Mbps; 100 to 240 V AC; IEEE 802.3af and IEEE 802.3at; Plug-and-play
Description
AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.Specifications
| Features | |
|---|---|
| Housing material | Plastic |
| Brand compatibility | Axis |
| Compatibility | M5054, M5055, M5065, M5525-E, P5414-E, P5415-E, P5654-E, P5655-E, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LE, Q1659, Q1700-LE, Q1785-LE, Q1786-LE, Q1798-LE, P1280-E, P1290-E, Q1941-E, Q1941-E PT, Q1942-E, Q1942-E PT, Q2901-E, Q2901-E PT, M3015, M3016, M3037-PVE, M3057-PLVE, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3904-R Mk II, P3905-R Mk II, P3925-R, P3935-LR, P9106-V, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q9216-SLV, A1001, A1601, T90C20 IR-LED, T90D20, T90D25, M7104, P7304, Q7411, Q7424-R Mk II, A9161, A9188, A9188-VE, A8207-VE Mk II, I8016-LVE, F34, F41, F44 T91G61 T91H61, D2110-VE, C1310-E, C1410 |
| Type | Midspan |
| Product colour | Black |
| Certification | IS 13252,UL 60950-1, UL 62368-1, CCC, EMC EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| LED indicators | Yes |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Power | |
| Output voltage | 56 V |
| Input voltage | 100-240 V |
| Rated power | 30 W |
| Input frequency | 47-63 Hz |
| Technical details | |
| Compatibility | M5054, M5055, M5065, M5525-E, P5414-E, P5415-E, P5654-E, P5655-E, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LE, Q1659, Q1700-LE, Q1785-LE, Q1786-LE, Q1798-LE, P1280-E, P1290-E, Q1941-E, Q1941-E PT, Q1942-E, Q1942-E PT, Q2901-E, Q2901-E PT, M3015, M3016, M3037-PVE, M3057-PLVE, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3904-R Mk II, P3905-R Mk II, P3925-R, P3935-LR, P9106-V, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q9216-SLV, A1001, A1601, T90C20 IR-LED, T90D20, T90D25, M7104, P7304, Q7411, Q7424-R Mk II, A9161, A9188, A9188-VE, A8207-VE Mk II, I8016-LVE, F34, F41, F44 T91G61 T91H61, D2110-VE, C1310-E, C1410 |
| Type | Midspan |
| Doesn't contain | Halogen, PVC |
| Harmonized System (HS) code | 85299020 |
| Weight & dimensions | |
| Width | 46 mm |
| Weight | 145 g |
| Height | 30 mm |
| Depth | 140.1 mm |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | -40 - 75% |
| Operating temperature (T-T) | -20 - 40 °C |
| Certificates | |
| Certification | IS 13252,UL 60950-1, UL 62368-1, CCC, EMC EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Logistics data | |
| Harmonized System (HS) code | 85299020 |
