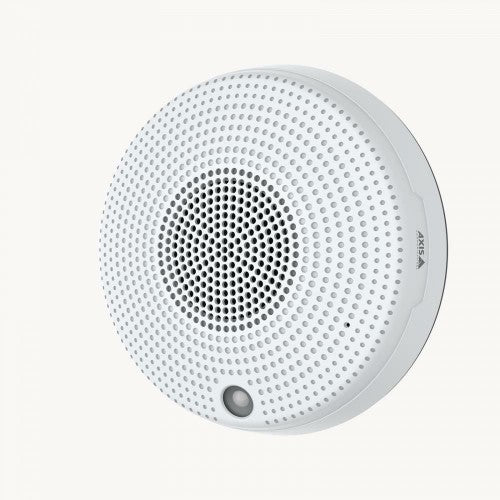

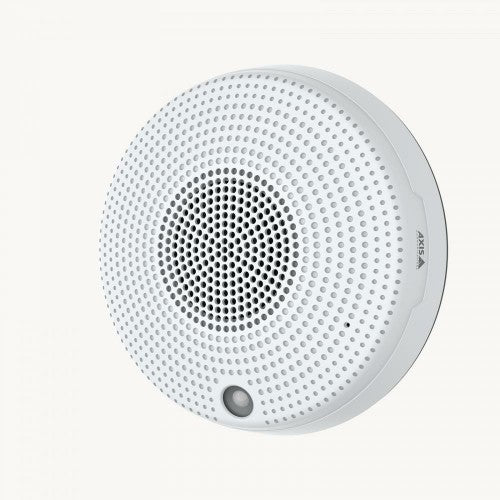

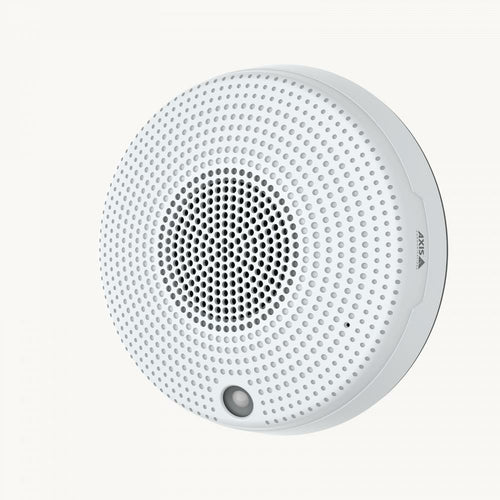

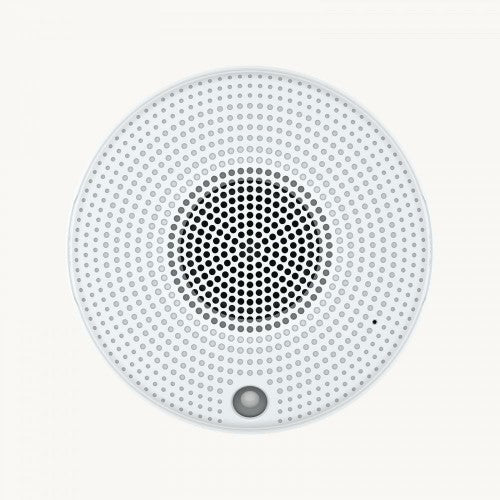

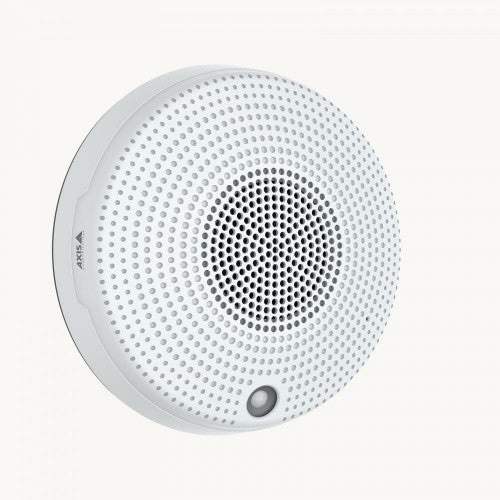

Axis C1410 Mk II 2-way White Wired

Speaker with wide-area coverage for voice messages

Description

AXIS C1410 Mk II is great to improve communication and support your operations, as well as to protect your property and keep people safe. Smart, and easy-to-integrate, AXIS C1410 Mk II is designed to fit discreetly into smaller spaces. And each affordably priced speaker delivers audio coverage of a wide area to keep installation costs low and make it a cost-effective choice.

All-in-one and easy

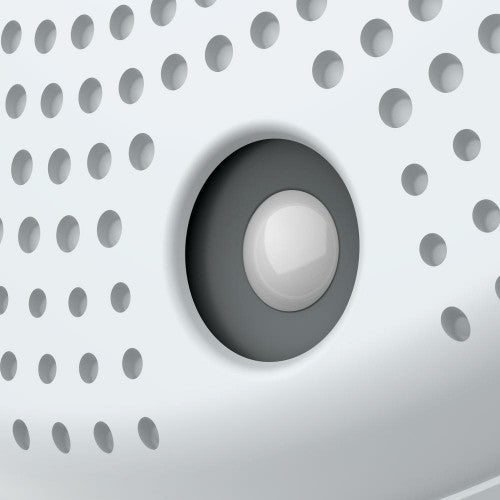

AXIS C1410 Mk II is an all-in-one unit. There’s no need for separate power amplifier and digital signal processor (DSP). Pre-configured digital signal processing produces clear voice every time. Onboard memory supports pre-recorded messages. Or, personnel can respond to notifications with live speech. Thanks to the built-in microphone, AXIS C1410 Mk II also supports two-way audio allowing you to get an immediate response from the people involved such as acknowledgement of your instructions, providing more info when needed, etc. The microphone can also be used for remote health testing of the speaker, so you know it’s working.

AXIS C1410 Mk II plugs into standard IP network, so no need for special audio cables. Based on open standards, it’s easy to integrate with video management software (VMS), Voice over IP (VoIP) telephony (using SIP), and analytics from Axis and our partners. Our AXIS Audio Manager Edge application is pre-installed on AXIS C1410 Mk II. It lets you efficiently manage and control your audio system with functionalities like zone management and scheduling of content. If you need to coordinate audio across different sites, a standard version of our multisite management software, AXIS Audio Manager Center, is available free of charge.

A speaker everywhere you need one
Thanks to its small and flexible design, you can combine AXIS C1410 Mk II with other Axis network speakers and enjoy complete audio coverage throughout your premise. You can install it anywhere, also in smaller environments. On ceilings, walls, and in narrow corridors. And it blends discreetly into any indoor environment. To complement your AXIS C1410 Mk II we also offer AXIS TC1601 Universal Mount enabling a variety of installation possibilities.

Keeping costs down
AXIS C1410 Mk II is a small speaker with broad reach. Each speaker gives you wide-area audio coverage. So, you need fewer speakers- and there are fewer speakers to install. This environmentally friendly product is made from up 76% recycled plastic. And it’s affordable, which adds up to some very reasonable purchase and installation costs.

Specifications

Loudspeakers
Speaker type	2-way
Speaker placement	Wall-mountable
Number of drivers	1
Amplifier	Built-in
Recommended usage	Intercom system
Audio
Frequency range	100 - 20000 Hz
Audio formats supported	AAC-LC, G.711, G.726, WAV
Sound pressure level (max)	90 dB
Performance
Product colour	White
Housing material	Plastic
LED indicators	Yes
International Protection (IP) code	IP40
Recommended usage	Intercom system
Technical details
Microphone frequency	50 - 12000 Hz
Speaker type	2-way
Product colour	White
LED indicators	Yes
International Protection (IP) code	IP40
Audio formats supported	AAC-LC, G.711, G.726, WAV
Design
Product colour	White
Housing material	Plastic
LED indicators	Yes
Amplifier
Amplifier class	D
Amplifier	Built-in
Amplifier output power	7 W
Ports & interfaces
Card reader integrated	Yes
Connectivity technology	Wired
Microphone in	Yes
Bluetooth	No
Power
Power consumption (typical)	12.95 W
Power source type	PoE
Material
Housing material	Plastic
Weight & dimensions
Height	52 mm
Diameter	18.2 cm
Weight	600 g
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	-20 - 50 °C
Other features
Microphone frequency	50 - 12000 Hz
International Protection (IP) code	IP40
Bluetooth	No
Audio formats supported	AAC-LC, G.711, G.726, WAV
