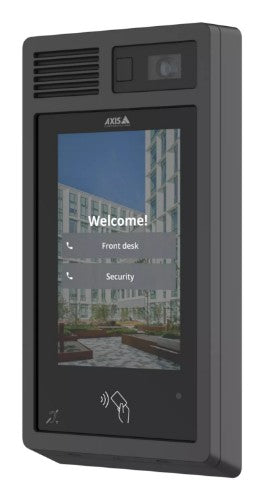

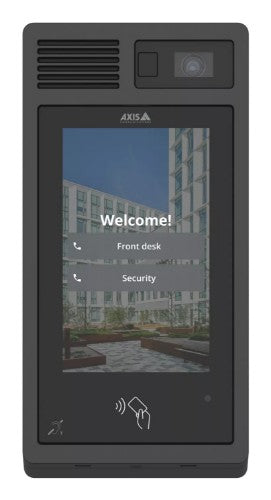

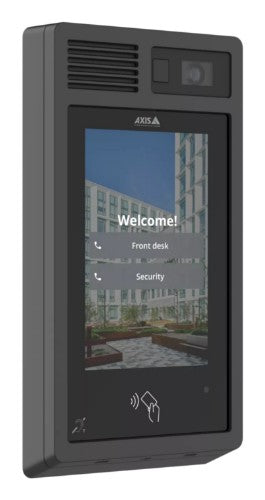

Axis I8307-VE video intercom system 17.8 cm (7") Black

Multi-functional device with interactive display

Key Features

• Fully featured 4K camera
• Integrated RFID reader with keypad
• Customizable touch screen
• Vandal-resistant IP66/IK08-rated device
• Built-in cybersecurity with Axis Edge Vault

Description

Ideal for a wide range of applications, this robust, vandal-resistant intercom combines outstanding 4K video, two-way audio, and a customizable touch display. It can easily be integrated with your VMS and other access control systems.

Intuitive, interactive screen

AXIS I8307-VE offers high-quality two-way video for enhanced communication. A fully featured 8 MP camera delivers outstanding details even outside the common two-way communication use case. You can rely on high-quality video surveillance and it’s possible to visually verify your visitors. With 85dB sound pressure level (SPL), echo cancellation, and noise reduction, this intercom is ideal in the most demanding situations. It features a 7” customizable touch screen, so you can display information to help visitors find where they’re going. For instance, you can show building maps or other relevant content. What’s more, you can tailor the screen’s background and customize the buttons.

Versatile and highly secure

This robust and vandal-resistant IP66/IK08-rated device offers flexible installation in both indoor and outdoor applications. Plus, it can be repainted to blend into specific environments. There’s a wide range of accessories available, so it can be easily mounted on walls, poles, recessed, or using a conduit mount. And with support for PoE, it uses just one network cable. It can also be easily configured to meet specific needs. For instance, the display’s background can be changed, and you can even add a welcome message. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.

Unmatched possibilities

This smart network intercom offers seamless integration with Axis and leading third-party VMS systems. It also supports Session Initiation Protocol (SIP) for IP phone system integration and VAPIX and ONVIF for deep VMS software integration allowing you to use your intercom as your primary surveillance camera. And the video can be live streamed in any VMS. A free downloadable mobile app lets you communicate and grant access from anywhere. Additionally, the integrated access control reader (RFID) with keypad functionality makes it easy to integrate with other access control systems so you can easily expand and enhance your system as your needs change.

Specifications

Technical details
International Protection (IP) code	IP66
Wall mountable	Yes
Voice codecs	G.711, G.726, PCM
Streaming capability	Yes
Echo cancellation	Yes
Built-in speaker(s)	Yes
Built-in microphone	Yes
IK code	IK08
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Display diagonal	17.8 cm (7")
Colour	Yes
Speakerphone	Yes
Number of displays supported	1
Maximum number of cameras supported	1
Connectivity technology	Wired
RFID reader	Yes
Display
Display resolution	800 x 480 pixels
Video formats supported	H.264, H.265, MPEG4
Touchscreen type	Capacitive
Touchscreen	Yes
Display diagonal	17.8 cm (7")
Wide Dynamic Range (WDR)	Yes
Camera
Viewing angle, vertical	112°
Viewing angle, horizontal	150°
PTZ control	Yes
Minimum illumination	0.04 lx
Maximum frame rate	60 fps
Maximum video resolution	3840 x 2160 pixels
Sensor type	CMOS
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
Motion sensor technology	Passive infrared (PIR) sensor
Motion sensor	Yes
Maximum aperture number	1.8
Fixed focal length	2.2 mm
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness, White balance
Audio
Voice codecs	G.711, G.726, PCM
Built-in speaker(s)	Yes
Design
International Protection (IP) code	IP66
IK code	IK08
On Screen Display (OSD) languages	Multi
Product colour	Black
Placement supported	Vertical
Housing material	Aluminium
Control type	Touch
Vandal-proof	Yes
Storage
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Outdoor unit
Internal memory (transmitter)	4000 MB
Flash memory (transmitter)	8 MB
Alarm input channels (transmitter)	4
Network
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Power over Ethernet (PoE)	Yes
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Networking standards	IEEE 802.3af, IEEE 802.3at
Power
Power consumption (typical)	7 W
Outdoor unit power type	DC/PoE
Power consumption (max)	25 W
Operational conditions
Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	144 mm
Depth	44 mm
Height	290 mm
Weight	2.07 kg
Packaging data
Outdoor unit included	Yes
Packaging content
Screws included	Yes
Quick start guide	Yes
Logistics data
Quantity per pack	1 pc(s)
