Axis | SKU:
02457-001

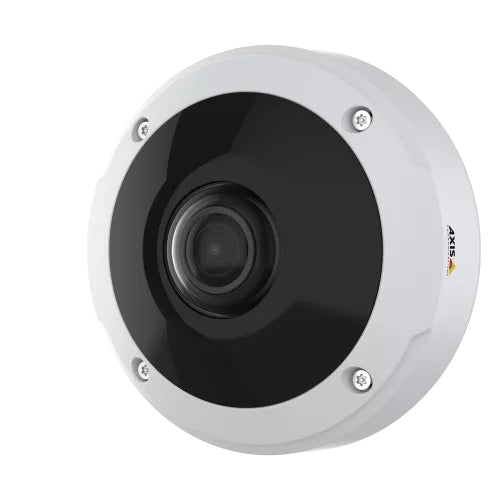

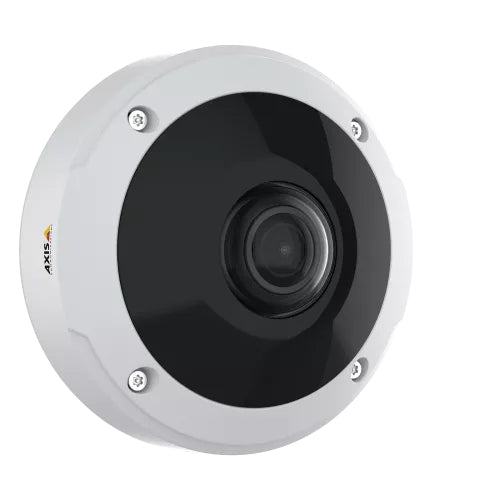

Axis M3057-PLR Dome IP security camera Indoor & outdoor 2016 x 2016 pixels Ceiling
€1,086.16
Unit price
/
Unavailable
Shipping calculated at checkout.
Axis M3057-PLR Dome IP security camera Indoor & outdoor 2016 x 2016 pixels Ceiling is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
M3057-PLR Mk II Dome Camera
Optimized for the transportation industry
Specifically designed for onboard surveillance, AXIS M3057-PLR Mk II complies with transportation industry standards including EN50155 and EN45545-2. Including an M12 connector, it can withstand vibrations ideal for installation in trains and buses. This ruggedized IK10, IP66/67-rated camera can withstand harsh environments. Plus, an active tampering alarm lets you know if your camera has been tampered with. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
See everything 24/7
This 6 MP panoramic camera offers 360° wide area coverage with just one camera. Ideal for onboard surveillance, you can use one video stream to produce any dewarped views you'd like. It’s possible to stream panorama, quad, corner, and corridor views directly from the camera. And you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously. Including Axis Lightfinder, it ensures sharp color images in low light. Plus, Forensic WDR delivers clarity even when there’s both dark and light areas in the scene. Furthermore, thanks to Axis OptimizedIR it enables surveillance in total darkness.
Built-in cybersecurity features
AXIS M3057-PLR Mk II comes with built-in cybersecurity functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
Key Features
- Complete 180° and 360° overview
- Optimized for transportation industry
- Forensic WDR, Lightfinder, OptimizedIR
- Factory-focused with digital roll
- Built-in cybersecurity features
Description
Specifically designed for onboard surveillance, this easy-to-install camera delivers a complete 180° or 360° overview regardless of light conditions. Built-in cybersecurity features help prevent unauthorized access and safeguard your system.Optimized for the transportation industry
Specifically designed for onboard surveillance, AXIS M3057-PLR Mk II complies with transportation industry standards including EN50155 and EN45545-2. Including an M12 connector, it can withstand vibrations ideal for installation in trains and buses. This ruggedized IK10, IP66/67-rated camera can withstand harsh environments. Plus, an active tampering alarm lets you know if your camera has been tampered with. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
See everything 24/7
This 6 MP panoramic camera offers 360° wide area coverage with just one camera. Ideal for onboard surveillance, you can use one video stream to produce any dewarped views you'd like. It’s possible to stream panorama, quad, corner, and corridor views directly from the camera. And you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously. Including Axis Lightfinder, it ensures sharp color images in low light. Plus, Forensic WDR delivers clarity even when there’s both dark and light areas in the scene. Furthermore, thanks to Axis OptimizedIR it enables surveillance in total darkness.
Built-in cybersecurity features
AXIS M3057-PLR Mk II comes with built-in cybersecurity functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66, IP67 |
| Camera | |
| Minimum illumination | 0 lx |
| Field of view (FOV) angle | 360° |
| Camera shutter speed | 1/16000 - 1 s |
| Lens viewing angle, horizontal | 183° |
| Lens viewing angle, vertical | 183° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Lens system | |
| Fixed focus | Yes |
| Minimum aperture number | 2 |
| Fixed focal length | 1.56 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| Infra-red wavelength | 850 nm |
| Video | |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2016 x 2016 pixels |
| Supported graphics resolutions | 2560 x 1440, 2560 x 1920, 384 x 288, 1920 x 1440, 256 x 144 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 6 MP |
| Network | |
| Bluetooth | No |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1 , HTTP/ 2, SSL/TLS1 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), LinkLocal address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| RAM capacity | 1024 MB |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Security | |
| Security algorithms | AES, FIPS 140-3 |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 12.2 W |
| Power consumption (Power over Ethernet (PoE)) | 8.2 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 66 mm |
| Diameter | 14.9 cm |
| Weight | 760 g |
| Packaging content | |
| Number of cameras | 1 |
| Mounting brackets included | Yes |
| Drilling template included | Yes |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
