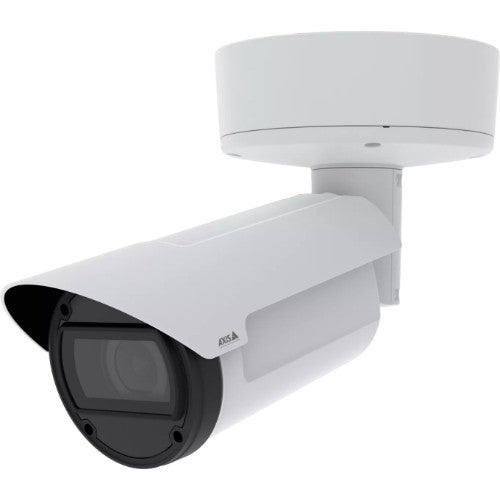

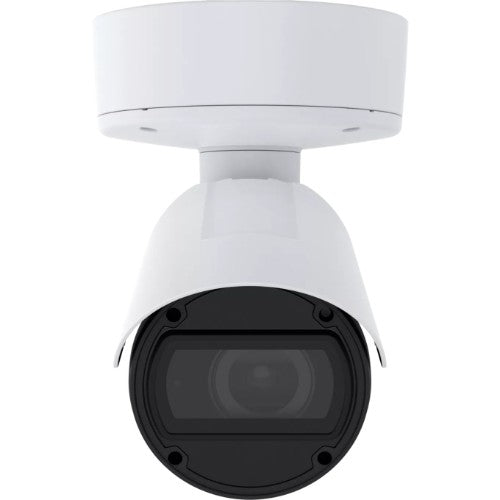

Axis Q1809-LE 150mm Bullet IP security camera Outdoor 7680 x 4320 pixels Ceiling/wall

All-in-one 41 MP camera for extreme detail

Key Features

• Out-of-the-box and outdoor-ready
• Superior image quality in 8K
• High light-sensitive 4/3” sensor
• Extreme detail at great distances
• Built-in cybersecurity with Axis Edge Vault

Description

Ideal for long distance surveillance, this all-in-one, outdoor-ready bullet camera delivers superior image quality in 41 MP with high light sensitivity and extremely high pixel density.

See all the details
Built on a dual Axis system-on-chip, this device delivers extreme detail over great distances and excellent forensic value. It offers 41 MP at 15 fps or 8K at up to 30 fps. And a 4/3” image sensor ensures exceptional low-light performance. With a custom-made, tele Canon lens, it’s perfect for long-distance surveillance and delivers extremely high pixel density. Electronic image stabilization (EIS) ensures smooth video in situations where a camera is subject to vibrations, for instance, at sports arenas or windy harbors. Furthermore, Axis Zipstream reduces bandwidth and storage requirements without compromising image quality.

All-in-one and ready for everything
This powerful camera offers everything you need and is out-of-the-box ready to use. Enclosed in a robust aluminum casing, it also includes a mounting arm for easy installation. And a spacious back box ensures secure cable management. It features a custom-made, tele (50 – 150 mm) Canon lens and 21°-7° horizontal field of view. With 3x zoom, it’s ideal for identification purposes. In addition, thanks to PoE out, you can connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation.

Secure and robust surveillance
AXIS Q1809-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. This robust, weather-protected, outdoor-ready camera is IP66-, IP67-, IK10- and NEMA 4X-rated and features a IK08-rated impact-resistant glass front window. It has an operating temperature range from -40 °C to 55 °C (-40 °F to 131 °F). Furthermore, surge protection minimizes damage in the case of a power surge.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
PTZ modes	Digital PTZ
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CSA, UL/cUL, CE, EAC, VCCI, RCM
Design
IK code	IK10
Form factor	Bullet
Product colour	Black, White
Mounting type	Ceiling/wall
Protection features	Impact resistant
International Protection (IP) code	IP66, IP67
Housing material	Aluminium, Glass
Camera
Minimum illumination	0.04 lx
Tilt angle range	0 - 90°
Pan range	-180 - 180°
Angle of rotation	270°
Camera shutter speed	1/15500 - 2 s
Camera pixel size	2.315 µm
Lens viewing angle, horizontal	21 - 7°
Lens viewing angle, vertical	12 - 4°
Image sensor
Sensor type	CMOS
Optical sensor size	101.6 / 3 mm (4 / 3")
Number of sensors	1
Lens system
Number of lenses	1
Maximum aperture number	4
Recognize distance (wide)	170.8 m
Recognize distance (tele)	510.2 m
Observe distance (wide)	338.8 m
Observe distance (tele)	1012.6 m
Identify distance (wide)	85.4 m
Identify distance (tele)	255.2 m
Detect distance (wide)	853.8 m
Detect distance (tele)	2551.6 m
Closest focusing distance	5 m
Focus	Motorized
Zoom capability	Yes
Focal length range	50 - 150 mm
Night vision
Night vision	Yes
LED type	IR
Infra-red wavelength	900 nm
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Mirror, Sharpness
Text caption overlay	Yes
Image stabilizer	Yes
Gain control type	Auto
Bit rate control	Variable Bit Rate (VBR)
Noise reduction technology	2D noise reduction, 3D noise reduction
Video compression formats	H.264, H.265
Maximum resolution	7680 x 4320 pixels
Video formats supported	AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions	160 x 120, 160 x 90, 1280 x 800, 3840 x 2160
Frame rate	30 fps
Video streaming	Yes
Total megapixels	41 MP
Audio
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB
Audio formats supported	AAC-LC, ADPCM, G.711, G.726, LPCM, PCM
Network
Bluetooth	No
Networking standards	IEEE 802.1AE, IEEE 802.1x
Quality of Service (QoS) support	Yes
Streaming method	Multicast
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd , HTTP/2, TLSd , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Storage
ROM capacity	4096 MB
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
Ports & interfaces
Terminal block port	Yes
Microphone in	Yes
DC-in jack	Yes
Connectivity technology	Wired
Security
Alert notification type	E-mail
Security algorithms	EAP-TLS, HTTPS
Password protection	Yes
Pixel counter	Yes
Digest authentication	Yes
Management features
Remotely operated	Yes
Cloud-managed	Yes
Power
Power source type	DC, PoE
Power consumption (max)	35 W
Power consumption (Power over Ethernet (PoE))	18.9 W
Power consumption (typical)	17.6 W
DC-in jack	Yes
Certificates
Certification	CSA, UL/cUL, CE, EAC, VCCI, RCM
Operational conditions
Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Depth	411 mm
Height	183 mm
Diameter	18.3 cm
Weight	3.2 kg
Sustainability
Compliance certificates	REACH, RoHS
Packaging content
Number of cameras	1
Technical details
Compliance certificates	REACH, RoHS
Other features
Focus	Motorized
Video compression formats	H.264, H.265
