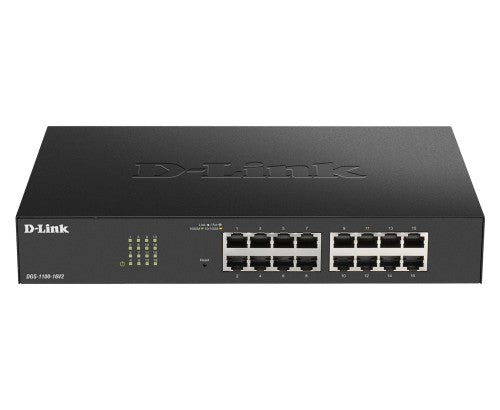

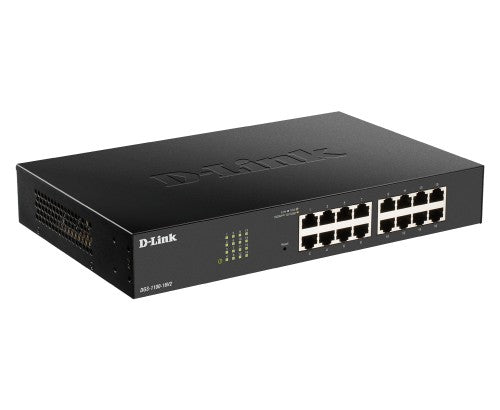

D-Link DGS-1100-16V2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity

Cutting Edge Green Technology
Innovative D-Link Green power saving features keep your budget in check

Manage Anywhere, Anytime
Remote setup & management is easy, and can be done from anywhere.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.,

Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 10BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 10BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	128
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	Port-based VLAN, Voice VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	128
Virtual LAN features	Port-based VLAN, Voice VLAN
Data transmission
Number of VLANs	128
Jumbo frames	9216
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Forwarding rate	23.81 Mpps
Performance
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Processor frequency	125 MHz
Memory type	DRAM
Mean time between failures (MTBF)	710519 h
Flash memory	16 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Fanless	Yes
Technical details
Product colour	Black
Processor frequency	125 MHz
Mean time between failures (MTBF)	710519 h
Rack mounting	Yes
Built-in processor	Yes
Security
Security algorithms	SNMP, SSL/TLS
IGMP snooping	Yes
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Certificates
Certification	EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
Memory
Packet buffer memory	4.1 MB
Memory type	DRAM
Flash memory	16 MB
Design
Product colour	Black
LED indicators	Yes
Certification	EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
Rack mounting	Yes
Indication
LED indicators	Yes
Power
Power consumption (max)	10.1 W
AC input voltage	100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 2000 m
Heat dissipation	34.46 BTU/h
Weight & dimensions
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	1.27 kg
Logistics data
Harmonized System (HS) code	85176990
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
