Eaton | SKU:
9SX1500IRBS

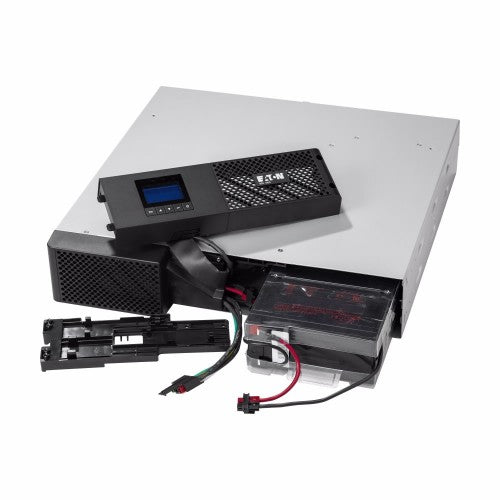

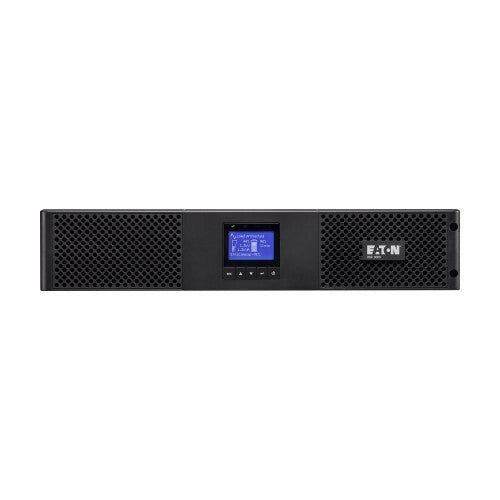

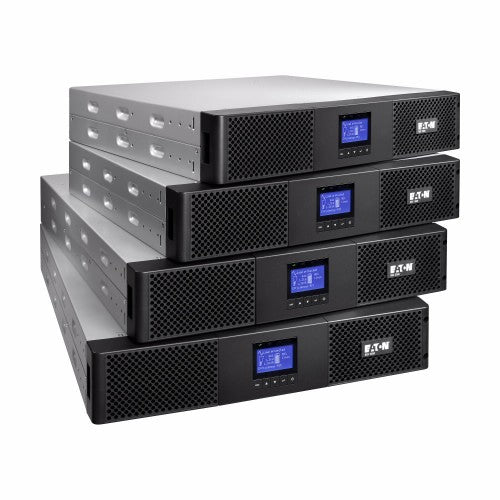

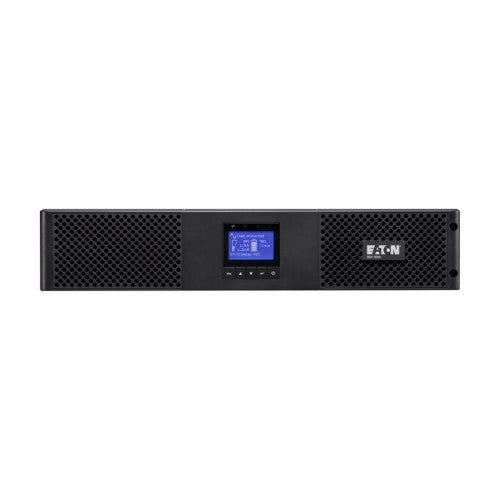

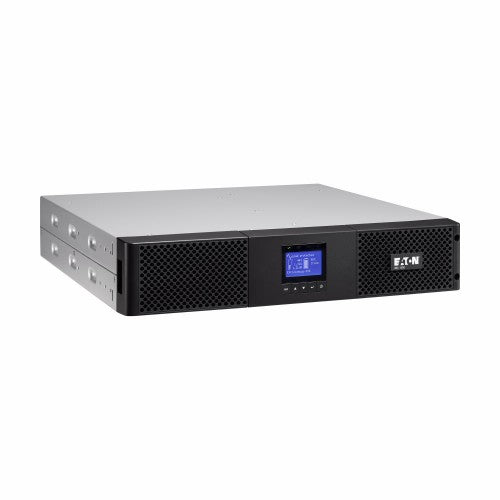

Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
€1,250.11
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
9SX UPS, Online, 1500 VA, 1350 W, Input C14, Outputs 6 x C13, Rack, 2U, with BS input cord
Description
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.Specifications
| Power | |
|---|---|
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 1350 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 91.4% |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 1.5 kVA |
| Efficiency (ECO mode) | 97.4% |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 43 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 1350 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 91.4% |
| Power protection features | Overdischarge |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 43 dB |
| Output power capacity | 1.5 kVA |
| Efficiency (ECO mode) | 97.4% |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |

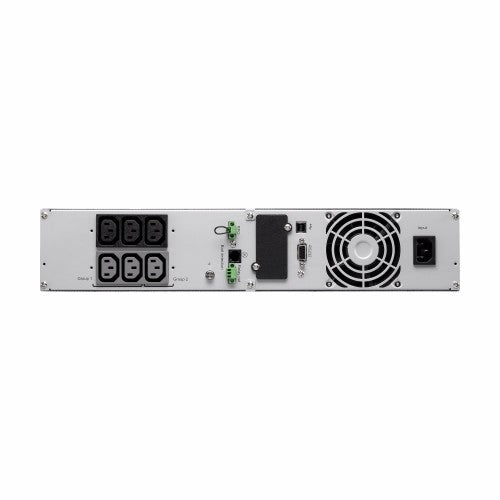

| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 5.5 min |
| Automatic battery test | Yes |
| Design | |

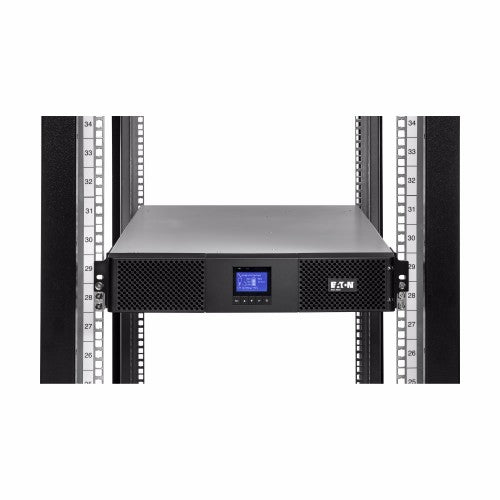

| Form factor | Rackmount |
| Product colour | Black |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 18.8 kg |
| Width | 548 mm |
| Height | 240 mm |
| Depth | 570 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
| Certificates | |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
