Eaton | SKU:
9SX3000IMBS

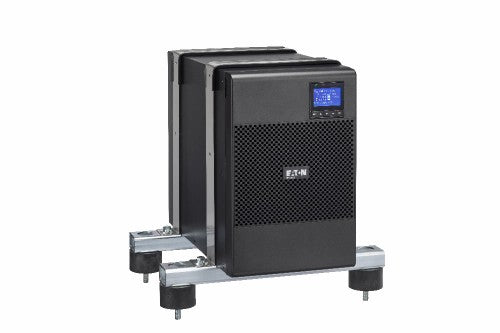

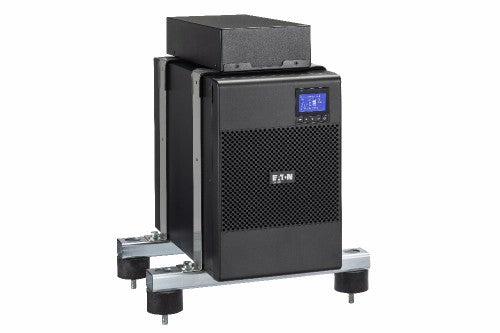

Eaton 9SX3000IMBS uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)
€1,865.33
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton 9SX3000IMBS uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
9SX Marine UPS, Online, 3000 VA, 2700 W, Input C20, Outputs 8 x C13 & 1 x C19, Tower, with BS input cord
On-line double conversion UPS with automatic bypass, 1000VA/900W, 3000VA/2700W, Tower unit with mounting rails and vibration dampers, multilingual LCD display, hot swappable batteries, power management software, Relay output, USB and Serial port.
Description
The Eaton 9SX Marine UPS is Type Approved by the DNV-GL.On-line double conversion UPS with automatic bypass, 1000VA/900W, 3000VA/2700W, Tower unit with mounting rails and vibration dampers, multilingual LCD display, hot swappable batteries, power management software, Relay output, USB and Serial port.
Specifications
| Power | |
|---|---|
| Output power factor | 0.9 |
| Output power | 2700 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92.4% |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 3 kVA |
| Efficiency (ECO mode) | 97.4% |
| ECO mode | Yes |
| Ports & interfaces | |
| Cable length | 1.8 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 45 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Output power | 2700 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92.4% |
| Power protection features | Overdischarge |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 45 dB |
| Output power capacity | 3 kVA |
| Efficiency (ECO mode) | 97.4% |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Battery | |
| Number of batteries supported | 8 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 6 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC DNV GL |
| Cable length | 1.8 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Certificates | |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC DNV GL |
| Compliance certificates | CE |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Weight | 34 kg |
| Width | 214 mm |
| Height | 346 mm |
| Depth | 412 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
