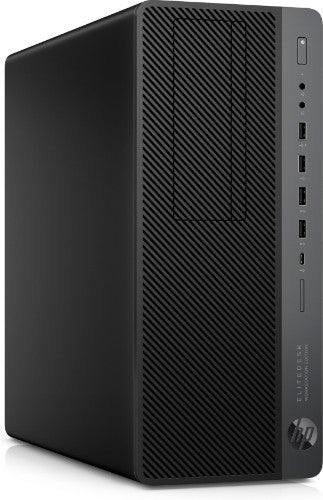

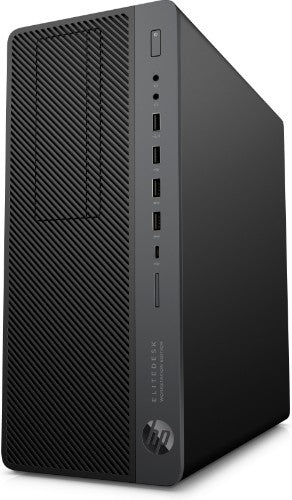

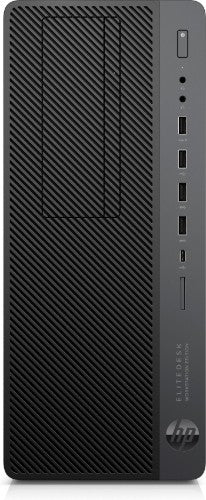

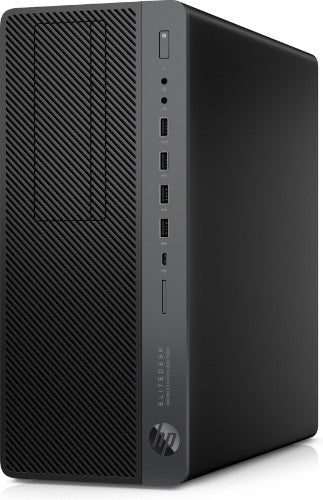

HP EliteDesk 800 G4 Intel® Core™ i7 i7-8700K 32 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 2080 Windows 10 Pro Tower Workstation Black

Intel Core i7-8700K (12MB Cache, 3.7GHz), 32GB DDR4-SDRAM, 1000GB SSD, DVD-ROM, Intel UHD Graphics 630, NVIDIA GeForce RTX 2080 (8GB GDDR6), LAN, Windows 10 Pro 64-bit

Key Features

• Windows 10 Pro 64-bit
• Intel Core i7-8700K (12MB Cache, 3.7GHz)
• NVIDIA GeForce RTX 2080 (8GB GDDR6)
• 32GB (2666MHz) DDR4-SDRAM (2 x 16) & 1000GB SSD

Reasons To Buy

Configurable Ports

Configure a third configurable rear I/O port for customizable display connections with your choice of VGA, DisplayPort™, HDMI or USB-Type C™ with DisplayPort™.

NVIDIA® GeForce® GTX 1080 Graphics

Amp up your VR experience with fast, smooth performance.

Step up to workstation performance

Take performance up a notch with plenty of configurations and expandability. With NVIDIA GeForce® & Quadro® options, you can pick the perfect GPU for the job. ^[1] Plus, multiple expansion slots provide plenty of room to accommodate your evolving needs.

Software certified

Work with confidence knowing your desktop is certified for your most critical applications. We’ve worked closely with leading software providers like Autodesk and SolidWorks to help ensure seamless and reliable performance at every stage of your workflow.

HP's most secure and manageable workstations

Get powerful protection from evolving malware threats with self-healing, hardware-enforced security solutions like HP Sure Start Gen4 ^[2] which protects against BIOS attacks. Plus, easily manage multiple devices with the HP Manageability Integration Kit Gen2 ^[3].

Operating System

Be productive in any situation. Windows 10 Pro and powerful security, collaboration, and connectivity features from HP help you power through your day.^[4]

Professional Graphics

Create complex 2D designs and 3D models with optional certified NVIDIA Quadro® P400 and P620 graphics powered by 2 GB of ultra-fast GPU memory.^[5]

Superb BIOS protection

Protect the firmware that antivirus can’t reach! The hardware-enforced self-healing protection offered by HP Sure Start Gen4 automatically recovers the BIOS from malware, rootkits, or corruption.^[6]

HP Sure Run

Keep your critical applications and processes running even if malware tries to shut them down with self-healing protection with HP Sure Run.^[7]

HP Sure Recover

HP Sure Recover ^[8] enables you to quickly and securely restore your PC to the latest image using only a network connection.

The HP Manageability Integration Kit Gen2

The HP Manageability Integration Kit Gen2 helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.^[9]

Description

HP's most affordable professional certified desktop
Workstation-class performance is within reach with a desktop certified for professional software. From 2D/3D CAD design to VR content creation, the HP EliteDesk 800 Workstation Edition is the perfect gateway to elite-level power.

Specifications

Processor
Processor generation	8th gen Intel® Core™ i7
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	95 W
Processor series	Intel Core i7-8700 Desktop Series
PCI Express configurations	1x16, 1x8+2x4, 2x8
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	41.6 GB/s
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	12 MB
Processor frequency	3.7 GHz
Processor model	i7-8700K
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.7 GHz
System bus rate	8 GT/s
Processor threads	12
Processor cores	6
PCI Express slots version	3.0
Processor family	Intel® Core™ i7
Memory
Non-ECC	Yes
ECC	No
Memory layout (slots x size)	2 x 16 GB
Internal memory	32 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	DVD-ROM
SSD interface	NVMe
SSD capacity	1 TB
Number of SSDs installed	1
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	1 TB
SSD memory type	TLC
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
Number of execution units	24
On-board graphics card ID	0x3E92
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce RTX™ 2080
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel® UHD Graphics 630
Discrete GPU manufacturer	NVIDIA
Optical drive
Optical drive type	DVD-ROM
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s

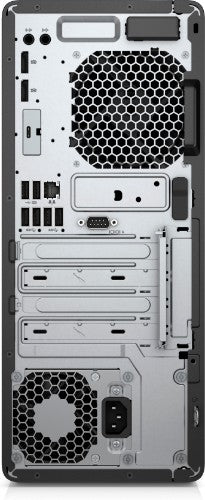

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
Microphone in	No
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Product colour	Black
Chassis type	Tower
Cable lock slot	Yes
Motherboard chipset	Intel Q370
Graphics card interface	PCIe x16
Design
Product colour	Black
Chassis type	Tower
Cable lock slot	Yes
Country of origin	China
Performance
Embedded options available	No
Audio chip	Conexant CX20632
Market positioning	Business
Password protection	Yes
Product type	Workstation
Motherboard chipset	Intel Q370
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015D
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	126684
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Brand-specific features
HP segment	Business
Weight & dimensions
Width	154 mm
Depth	370 mm
Height	365 mm
Weight	9.86 kg
Packaging content
Display included	No
Display
Display included	No
Features
Country of origin	China
Other features
On-board graphics card	Yes
Processor manufacturer	Intel
Graphics card interface	PCIe x16
Country of origin	China
