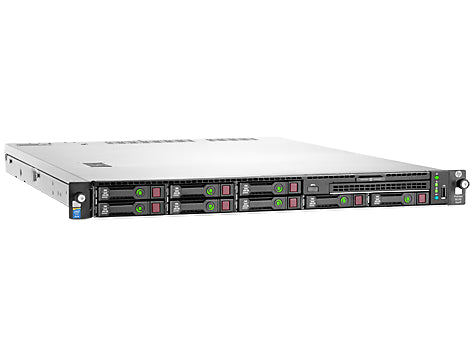

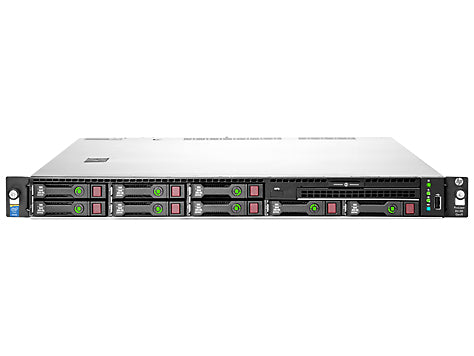

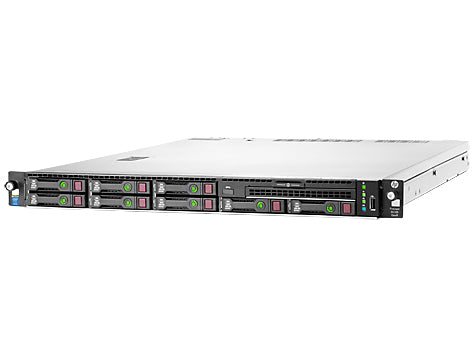

HPE ProLiant DL120 Gen9 E5-2630v4 8GB-R H240 8SFF 550W PS Entry server Rack (1U) Intel® Xeon® E5 v4 2.2 GHz DDR4-SDRAM

ProLiant DL120 Gen9 E5-2630v4 8GB-R H240 8SFF 550W PS Entry Server

Description

Combination of Performance and Expandability in a Dense Form Factor
- The HP ProLiant DL120 Gen9 Server supports one (1) Intel® Xeon® processor E5-2600 v3 processors offering improved performance and efficiency in a dense 1U chassis.
- HP SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 256 GB max capacity with speeds up to 2133 MHz with up to 14% 1performance gain.
- HP SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics. Supports up to four (4) LFF and eight (8) SFF 12 Gb/s HDD/SSD options.
- Up to three (3) PCIe 3.0 riser slots to support a GPU and networking cards offering increased IO bandwidth and seamless expandability.

Cost optimized 1-socket solution for enterprise class workloads
- The HP ProLiant DL120 Gen9 Server helps reduce virtualization licensing costs with its 1U/1-socket cost optimized design for SMBs and service providers.
- Embedded with 2x1GbE, up to three (3) PCIe slots and choice of HP FlexibleLOM provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
- 80 PLUS gold certified entry-level redundant HP Power Supplies provide up to 92% efficiency which combined with HP power management features leads to reduction of power consumption and expense.
- Improved ambient temperature standard with ASHRAE A3 2support helps customers reduce cooling expense.

Agile Infrastructure Management for Accelerating IT Service Delivery
- With HP ProLiant DL120 Gen9 Server, HP OneView provides converged management for automation simplicity across servers, storage and networking.
- Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
- Configure in Unified Extensible Firmware Interface (UEFI) boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits or HP RESTful Interface Tool.
- Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO.
- Optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM and SPP.

Energy Efficiency by Design
- 80 PLUS gold certified entry-level redundant HP Power Supplies provide up to 92% efficiency which combined with HP power management features leads to reduction of power consumption and expense.
- Improved ambient temperature standard with ASHRAE A3 2helps customers reduce cooling expense.

Specifications

Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	85 W
Tcase	74 °C
Supported instruction sets	AVX 2.0
Stepping	R0
Scalability	2S
Processor threads	20
Processor package size	45 x 52.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Processor code	SR2R7
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Number of QPI links	2
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory channels supported by processor	Quad
Memory bandwidth supported by processor (max)	68.3 GB/s
Maximum number of PCI Express lanes	40
Maximum internal memory supported by processor	1.54 TB
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
ECC supported by processor	Yes
Bus type	QPI
Processor cache type	Smart Cache
Processor cache	25 MB
Conflict-Free processor	Yes
Processor series	Intel Xeon E5-2600 v4
Processor frequency	2.2 GHz
Processor boost frequency	3.1 GHz
Number of processors installed	1
Processor model	E5-2630V4
System bus rate	8 GT/s
Processor socket	LGA 2011-v3
Processor cores	10
Processor manufacturer	Intel
Motherboard chipset	Intel C610
Processor family	Intel® Xeon® E5 v4
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	8x DIMM
Memory clock speed	2400 MHz
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
RAID support	Yes
RAID levels	0, 1, 1+0, 5
Optical drive type	No
Number of HDDs supported	8
Maximum storage capacity	16 TB
HDD size	2.5"
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)

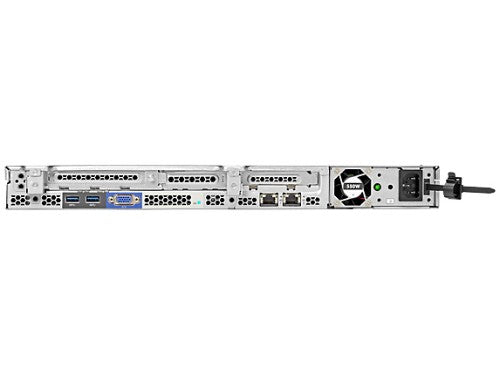

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Rack mounting	Yes
Optical drive type	No
Chassis type	Rack (1U)
Graphics
Graphics card family	Matrox
Graphics card	G200eH2
Performance
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware
Operating system installed	No
Software
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware
Operating system installed	No
Processor special features
Intel® Identity Protection Technology (Intel® IPT)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Processor ARK ID	92981
CPU configuration (max)	2
Power
Number of main power supplies	1
Redundant power supply (RPS) support	No
Power supply	550 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Rack mounting	Yes
Ethernet interface type	Gigabit Ethernet
CPU configuration (max)	2
Chassis type	Rack (1U)
Weight & dimensions
Width	434.6 mm
Weight	17 kg
Height	42.9 mm
Depth	607 mm
Other features
Graphics card family	Matrox
Graphics card	G200eH2
CPU configuration (max)	2
