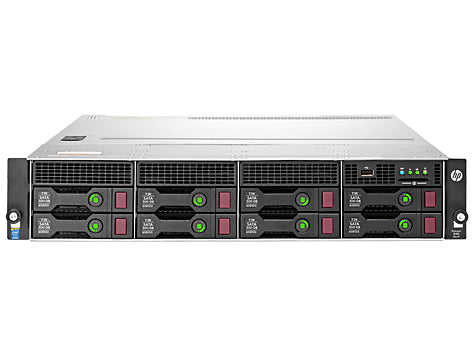

HPE ProLiant DL80 Gen9 E5-2609v4 8GB-R H240 8LFF 550W PS Base server Rack (2U) Intel® Xeon® E5 v4 1.7 GHz DDR4-SDRAM

ProLiant DL80 Gen9 E5-2609v4 8GB-R H240 8LFF 550W PS Base Server

Description

Do you need an affordable storage server for capacity intensive applications? The HP ProLiant DL80 Gen9 Server is designed with affordable storage, networking and processor scalability, and manageability in a 2U server for cost conscious service provider and SMBs. Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage, back-up due to compelling cost/GB that it offers.

Features

Affordable Storage and IO Expandability for Service Providers and SMBs
- The HP ProLiant DL80 Gen9 Server provides ample storage capacity with up to twelve (12) Large Form Factor (LFF) HP SmartDrives, delivering optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
- Up to six (6) PCIe 3.0 riser slots to support one single-wide GPU or networking cards offering increased IO bandwidth and seamless expandability.
- Comes standard with 2x1GbE and choice of HP FlexibleLOM to provide you flexibility of networking bandwidth and fabric so you can adapt to changing business needs.

Just Enough Performance for Basic IT Infrastructure Workloads
- The HP ProLiant DL80 Gen9 Server supports up to two (2) Intel® Xeon® processor E5-2600 v3 processors offering improved performance and efficiency.
- HP SmartMemory has the built-in intelligence to improve performance, reduce downtime and energy costs resulting in up to 14% 1 better throughput performance and up to 37% lower power consumption with DDR4 memory.
- Embedded SATA HP Dynamic Smart Array B140i Controller for boot and data. Choice of HP Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HP Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.

Agile Infrastructure Management for Accelerating IT Service Delivery
- With HP ProLiant DL80 Gen9 Server, HP OneView provides converged management for automation simplicity across servers, storage and networking.
- Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
- Configure in Unified Extensible Firmware Interface (UEFI) boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits or HP RESTful Interface Tool.
- Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO.
- Optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM and SPP.

Energy Efficiency by Design
- 80 PLUS gold certified entry-level redundant HP Power Supplies provide up to 92% efficiency which combined with HP power management features leads to reduction of power consumption and expense.
- Improved ambient temperature standard with ASHRAE A3 2 helps customers reduce cooling expense.

Specifications

Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	85 W
Tcase	74 °C
Supported instruction sets	AVX 2.0
Stepping	R0
Scalability	2S
Processor threads	8
Processor package size	45 x 52.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Processor code	SR2P1
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
PCI Express configurations	1x4, 1x8, 1x16
Number of QPI links	2
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866 MHz
Memory channels supported by processor	Quad
Memory bandwidth supported by processor (max)	59.7 GB/s
Maximum number of PCI Express lanes	40
Maximum internal memory supported by processor	1.54 TB
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	Yes
ECC supported by processor	Yes
Bus type	QPI
Processor cache type	Smart Cache
Processor cache	20 MB
Conflict-Free processor	Yes
Processor series	Intel Xeon E5-2600 v4
Processor frequency	1.7 GHz
Number of processors installed	1
Processor model	E5-2609V4
System bus rate	6.4 GT/s
Processor socket	LGA 2011-v3
Processor cores	8
Processor manufacturer	Intel
Motherboard chipset	Intel C610
Processor family	Intel® Xeon® E5 v4
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	8x DIMM
Memory clock speed	2400 MHz
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
RAID support	Yes
RAID levels	0, 1, 5
Optical drive type	No
Number of HDDs supported	8
Maximum storage capacity	32 TB
HDD size	3.5"
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Graphics
On-board graphics card model	Not available
Graphics card family	Matrox
Graphics card	G200eH2
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)

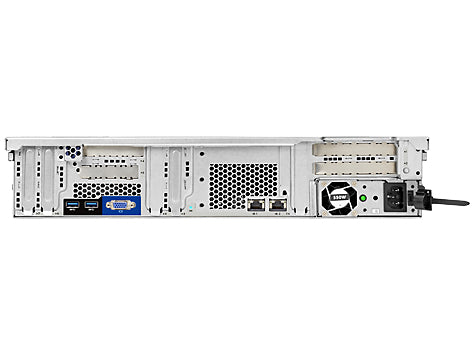

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Rack mounting	Yes
Optical drive type	No
Chassis type	Rack (2U)
Performance
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware
Operating system installed	No
Software
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware
Operating system installed	No
Processor special features
Intel® Identity Protection Technology (Intel® IPT)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	No
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Flex Memory Access	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Processor ARK ID	92990
CPU configuration (max)	2
Power
Number of main power supplies	1
Redundant power supply (RPS) support	No
Power supply	550 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Rack mounting	Yes
Ethernet interface type	Gigabit Ethernet
CPU configuration (max)	2
Chassis type	Rack (2U)
Weight & dimensions
Width	434.7 mm
Height	87.6 mm
Depth	634.3 mm
Other features
Graphics card family	Matrox
Graphics card	G200eH2
CPU configuration (max)	2
