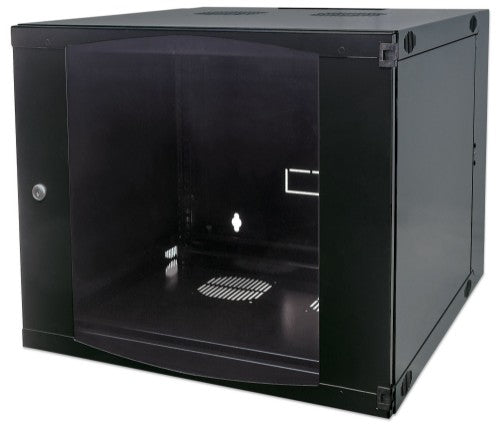

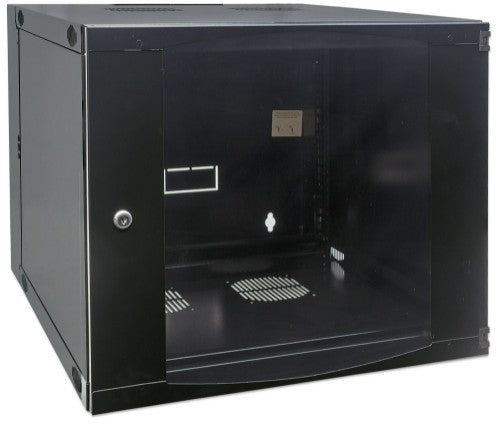

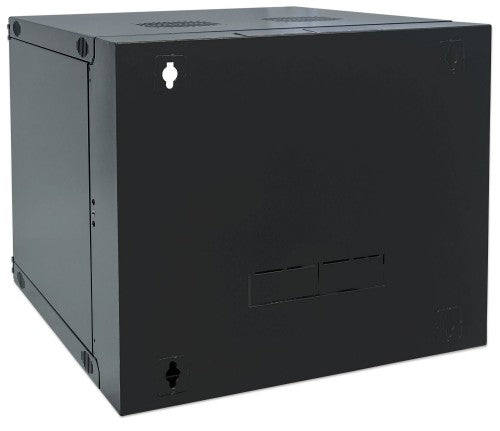

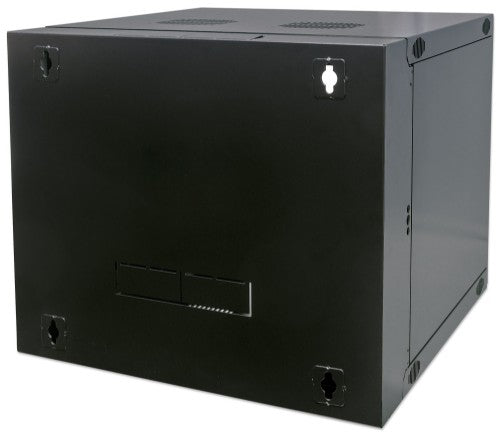

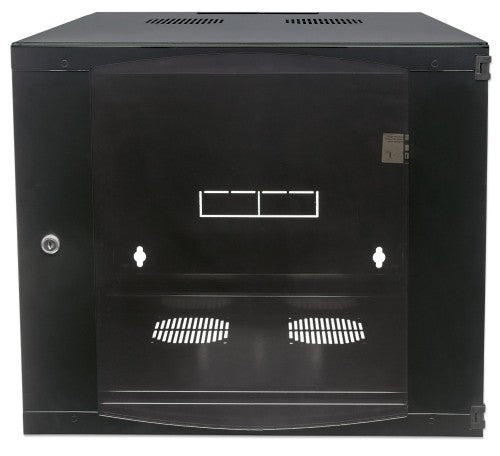

Intellinet 19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 9U, 450mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 235mm, Parts for wall installation not included
Intellinet 19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 9U, 450mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 235mm, Parts for wall installation not included is backordered and will ship as soon as it is back in stock.
Order Delivery Notice: Thursday 18th December is the last day for orders before Christmas.
Any orders placed after Thursday 18th December will be despatched on Monday 5th January 2026.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Key Features
- Flat Pack Design
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg
- Cable entry via rear or top panel
- 4MM toughened glass door

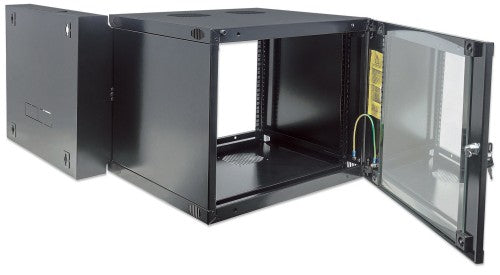

- Rear door for easy access to back of cabinet
- Reversible Front door
- Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness

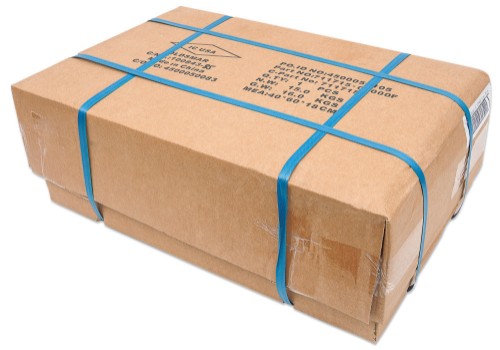

- Ships Flatpacked
- Three-Year Warranty
Description
The Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version._x000D__x000D_
In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180° and the optional double section make cabling and component exchange particularly easy.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 9U |
| Removable side panels | Yes |
| Front door construction | Glass |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Material | SPCC |
| Product colour | Black |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Weight & dimensions | |
| Width | 540 mm |
| Depth | 450 mm |
| Height | 460 mm |
| Weight | 19 kg |
| Size (imperial) | 48.3 cm (19") |
| Technical details | |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 9U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Packaging content | |
| Side panels included | Yes |
| Material | |
| Material | SPCC |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
