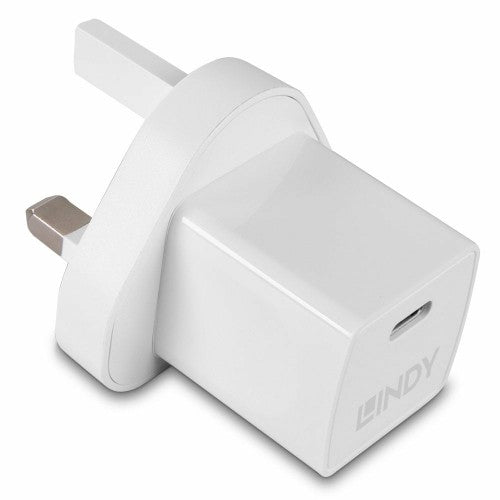

Lindy 20W USB Type C GaN Charger

The Lindy 20W USB Type C PD Charger is a compact, efficient solution for charging many devices. It provides fast charging for USB Type C PD and PPS-enabled devices. Thanks to the small design the charger can easily be carried and is always available when power is needed.

Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard Type C charger supplied with many devices.

For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.,

Performance
Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
Power protection features	Over current, Over voltage, Overheating, Short circuit
Fast charging	Yes
Fast charging technology	GaN, Power Delivery 3.0
USB Type-C ports quantity	1
USB Power Delivery	Yes
USB Power Delivery revision	3.0
Number of simultaneously connected devices (max)	1
Design
Product colour	White
Gallium nitride (GaN) transistors	Yes
Housing material	Polyvinyl chloride (PVC)
Connector material	Copper
Power
Input current	0.5 A
Maximum power	20 W
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Maximum output voltage	12 V
Minimum output voltage	5 V
Output current (5V)	3 A
Output current (9V)	2.22 A
Output current (12V)	1.67 A
Output voltage accuracy (±)	5%
Power consumption (no load)	0.075 W
Efficiency at low load (10%)	Yes
Average active efficiency	5V 83.37%, 9V 87.32%,12V 86.40%
Compatible power plug types	UK
Technical details
Package type	Box
Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
Power protection features	Over current, Over voltage, Overheating, Short circuit
Manual	Yes
Sustainability compliance	Yes
Sustainability certificates	ErP
Compliance certificates	CE, REACH, RoHS, UKCA
Weight & dimensions
Width	28 mm
Depth	31 mm
Height	29.6 mm
Weight	40 g
Package width	80 mm
Package depth	100 mm
Package height	45 mm
Package weight	60 g
Packaging data
Package type	Box
Package width	80 mm
Package depth	100 mm
Package height	45 mm
Package weight	60 g
Quantity per pack	1 pc(s)
Operational conditions
Storage temperature (T-T)	-20 - 80 °C
Operating temperature (T-T)	0 - 25 °C
Operating relative humidity (H-H)	0 - 90%
Packaging content
Manual	Yes
Package type	Box
Features
Compatible power plug types	UK
Colour
Product colour	White
Other features
Manual	Yes
Package type	Box
