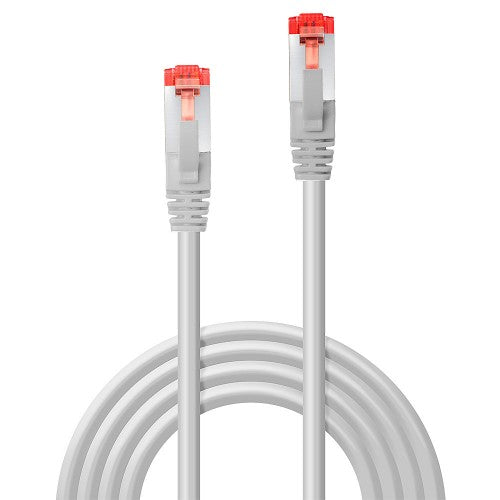

Lindy 30m Cat.6 S/FTP Network Cable, Grey

30m Cat.6 S/FTP Network Cable, Grey

Key Features

• Twisted Pair Patch Cable with RJ45 connectors
• Cat.6 S/FTP PIMF

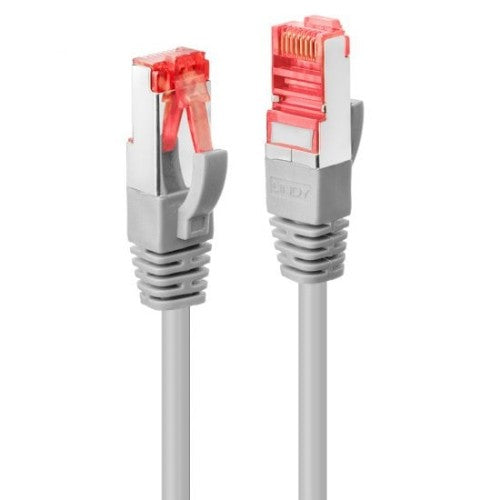

• Integrated snagless connector for latch protection
• Gold plated pins for better conductivity and elimination of signal loss

Description

Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.

Specifications

Features
Product colour	Grey
Connector shielding	Yes
Connector shield material	Aluminium
Conductor material	Copper
Frequency	250 MHz
AWG wire size	27
Cable standard	Cat6
Cable class	E
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Cabling technology	10/100/1000Base-T(X)
Jacket material	Polyvinyl chloride (PVC)
Cable length	30 m
Connector 2 gender	Male
Connector 1 gender	Male
Bend radius (min)	7.4 cm
Category	6
Certification	RoHS, REACH, UL, California Proposition 65
Harmonized System (HS) code	84733080
Operational conditions
Storage temperature (T-T)	-20 - 75 °C
Operating temperature (T-T)	-10 - 60 °C
Certificates
Certification	RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter	6.2 mm
Connector 2 dimensions (WxDxH)	11.6 x 22.8 x 8.3 mm
Connector 1 dimensions (WxDxH)	11.6 x 22.8 x 8.3 mm
Packaging data
Package type	Polybag
Technical details
Product colour	Grey
Cable standard	Cat6
Cable class	E
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Cabling technology	10/100/1000Base-T(X)
Jacket material	Polyvinyl chloride (PVC)
Cable length	30 m
Category	6
Other features
Category	6
Package type	Polybag
Logistics data
Harmonized System (HS) code	84733080
