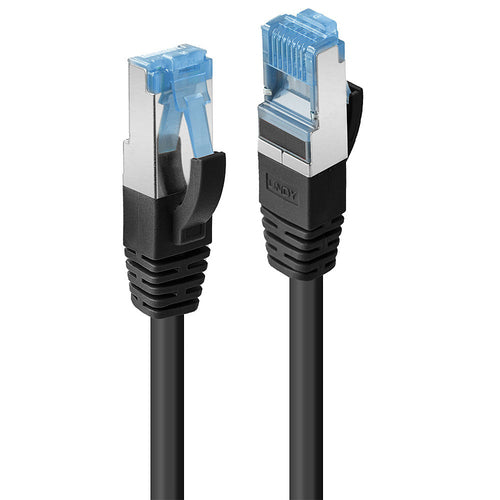

Lindy 47179 networking cable Black 2 m Cat6a S/FTP (S-STP)

Cat.6A S/FTP LSZH, Black, 2m

Key Features

• Twisted Pair Patch Cable with RJ45 connectors
• Cat.6A S/FTP, LSZH
• Integrated snagless connector for latch protection
• Gold plated pins for better conductivity and elimination of signal loss

Description

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP).
Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz.
These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time.
A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White

Specifications

Features
Product colour	Black
Connector shielding	Yes
Connector shield material	Aluminium
Conductor material	Copper
Frequency	500 MHz
AWG wire size	27
Plug and Play	Yes
Cable standard	Cat6a
Cable class	E
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	2 m
Connector 2 gender	Male
Connector 1 gender	Male
Bend radius (min)	7.2 cm
Certification	RoHS, REACH, UL
Harmonized System (HS) code	84733080
Operational conditions
Storage temperature (T-T)	-20 - 75 °C
Operating temperature (T-T)	-10 - 60 °C
Certificates
Certification	RoHS, REACH, UL
Weight & dimensions
Outer diameter	6 mm
Connector 2 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 1 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data

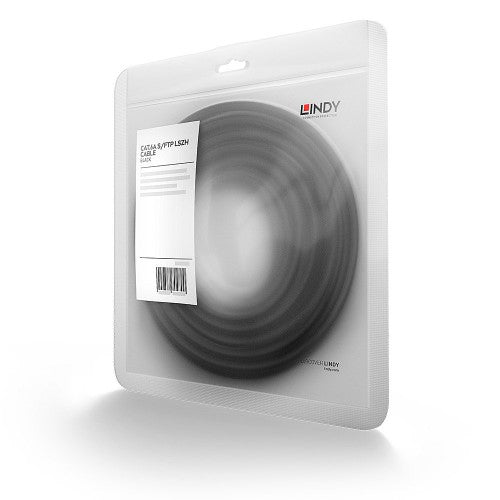

Package type	Polybag
Quantity per pack	1 pc(s)
Technical details
Product colour	Black
Plug and Play	Yes
Cable standard	Cat6a
Cable class	E
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	2 m
Other features
Package type	Polybag
Logistics data
Harmonized System (HS) code	84733080
