Microchip Technology | SKU:
2293200-R

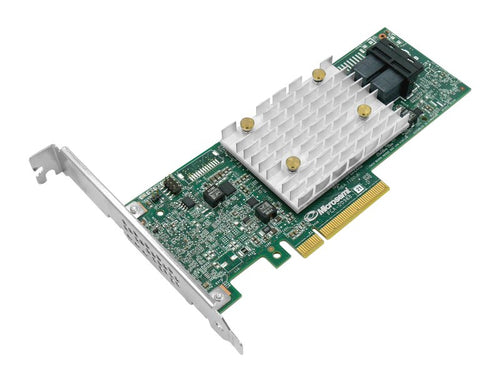

Microchip Technology HBA 1100-8I interface cards/adapter Internal Mini-SAS HD
€305.45
Unit price
/
Unavailable
Shipping calculated at checkout.
Microchip Technology HBA 1100-8I interface cards/adapter Internal Mini-SAS HD is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
HBA 1100-8i, 12Gbps, 8x PCI-E 3.0, 2x SFF-8643, 1x SFF-8644
The HBA 1100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 1100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
Visit Adaptec Support for Firmare, Drivers, and Documentation.
Description
The 12 Gbps Adaptec HBA 1100-8i Host Bus Adapter has 8 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor. Quality and reliability are assured through the unified hardened Smart Storage stack, now deployed to over 30 million servers. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 1100-8i adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.5M IOPS without additional overhead or latency. The HBA 1100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.The HBA 1100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 1100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
Visit Adaptec Support for Firmare, Drivers, and Documentation.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Mini-SAS HD |
| Host interface | PCIe |
| Internal mini-SAS HD ports | 2 |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCI 3.0 |
| Technical details | |
| Hot-Plug support | Yes |
| Native Command Queuing (NCQ) | Yes |
| Compliance certificates | RoHS |
| Performance | |
| Hot-Plug support | Yes |
| Native Command Queuing (NCQ) | Yes |
| Built-in processor | Yes |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | CE, FCC, UL, C-tick, VCCI, KCC, CNS |
| Design | |
| Mean time between failures (MTBF) | 1360000 h |
| Hot-Plug support | Yes |
| Internal | Yes |
| Certification | CE, FCC, UL, C-tick, VCCI, KCC, CNS |
| Features | |
| Native Command Queuing (NCQ) | Yes |
| Built-in processor | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Weight & dimensions | |
| Width | 167 mm |
| Height | 64 mm |
