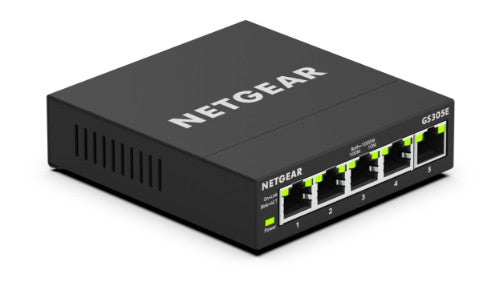

NETGEAR SOHO Managed L3 Gigabit Ethernet (10/100/1000) Black

Control and Configure Beyond Plug-N-Play Connectivity Today’s growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications such as VoIP phones and IP cameras on their Ethernet infrastructure. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR Smart Managed Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation / Port Trunking on models with 16 ports or more, rate limiting and traffic monitoring. NETGEAR Smart Managed Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide. Prioritize Voice/Video With the ability to set up and configure QoS, these Gigabit Smart Managed Plus Switches can detect different types of network traffic and assign the desired priority to latency-sensitive traffic, such as voice and video. This helps improve the delivery quality of related applications such as VoIP, multimedia broadcasting, and video conferencing. Build Multiple Network Groups These Gigabit Smart Managed Plus Switches can help divide big networks into smaller more manageable groups and have resources dedicated for one or several groups rather than making the same resources open to all. This feature improves overall network performance, adds security to network traffic, and makes more efficient use of network resources. Troubleshoot Cable Problems All Gigabit Smart Managed Plus Switches come with a cable diagnostic feature that enables users to easily find out the health status of their network cables. If there are any problems, this feature helps quickly locate the point where the cabling fails; allowing connectivity issues to be fixed much faster, potentially saving technicians hours of troubleshooting. IGMP Snooping for Optimized Multimedia Traffic Delivery By listening in on the IGMP conversation between hosts and routers, the Gigabit Smart Managed Plus switch can maintain a map as to which links need which IP multicast streams. The Gigabit Web Managed (Plus) therefore will be able to forward multicast traffic only to the links that have asked for them and cut multicast traffic from links that do not contain a multicast listener. Essentially, IGMP snooping helps optimize multicast performance at Layer 2 and is especially useful for bandwidth-intensive IP multicast applications such as IPTV.,

Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	64
10G support	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	64
Virtual LAN features	Port-based VLAN, Tagged VLAN
Data transmission
Multicast MAC address table	128 entries
Number of VLANs	64
Jumbo frames	9000
Packet buffer memory	0.128 MB
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Performance
Packet buffer memory	0.128 MB
Stackable	No
Mean time between failures (MTBF)	2531294 h
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Stackable	No
Mean time between failures (MTBF)	2531294 h
Housing material	Metal
Rack mounting	No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Security
IGMP snooping	Yes
Queue scheduling algorithms	Priority queuing (PQ), Weighted Round Robin (WRR)
Password protection	Yes
DHCP features	DHCP client
Multicast features
Multicast MAC address table	128 entries
Multicast support	Yes
Certificates
Certification	CE mark, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA
Memory
Packet buffer memory	0.128 MB
Design
Product colour	Black
Stackable	No
LED indicators	Activity, Link, Power, Speed, System
Housing material	Metal
Certification	CE mark, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA
Rack mounting	No
Indication
LED indicators	Activity, Link, Power, Speed, System
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Weight & dimensions
Width	100 mm
Depth	94 mm
Height	27 mm
Weight	250 g
Logistics data
Harmonized System (HS) code	85176990
