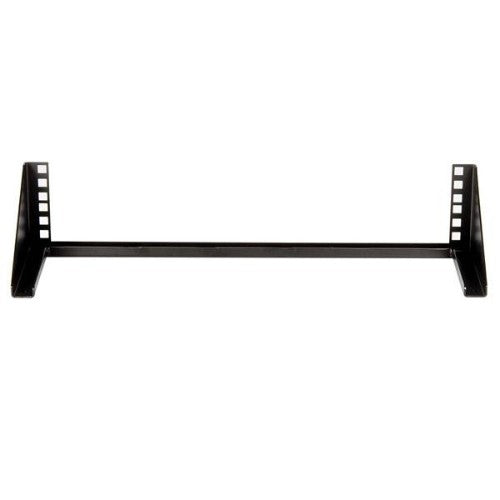

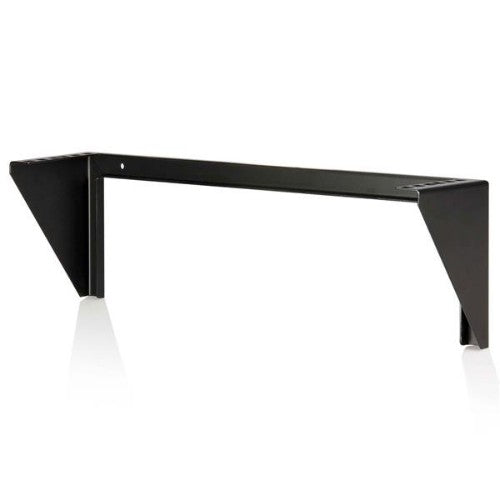

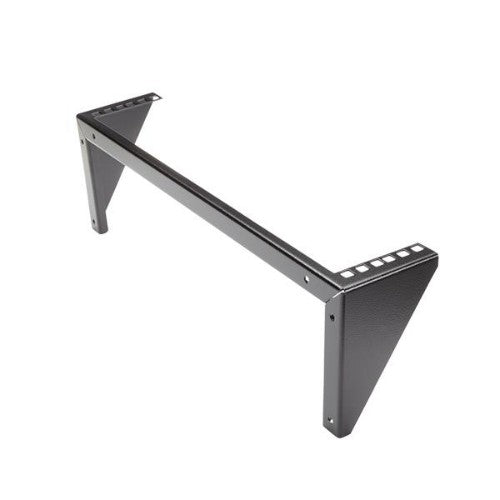

StarTech.com 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket

StarTech.com 2U Vertical Wall Mount Patch Panel Bracket - Steel Rack Mount Bracket w/Hardware for 19" Network, Server and Data Equipment (RK219WALLV)

Key Features

• VERSATILE FUNCTIONALITY: This multi-use 2U vertical patch panel bracket enables you to mount your server, data, networking or AV equipment vertically on a wall or horizontally under a desk for added versatility
• STURDY DESIGN: Constructed to EIA-310 19in rack standards, the black wall mount patch panel bracket features a solid steel design for ultimate durability; the rack can hold up to 125.3lb (56.7kg) to ensure your equipment is secure
• NO ASSEMBLY REQUIRED: The open frame, L-shaped rack arrives fully assembled with cage screws for mounting equipment and 1 ½” screws for mounting the rack to wood surfaces; it’s a convenient solution for all your SoHo (small office/home office) rack needs

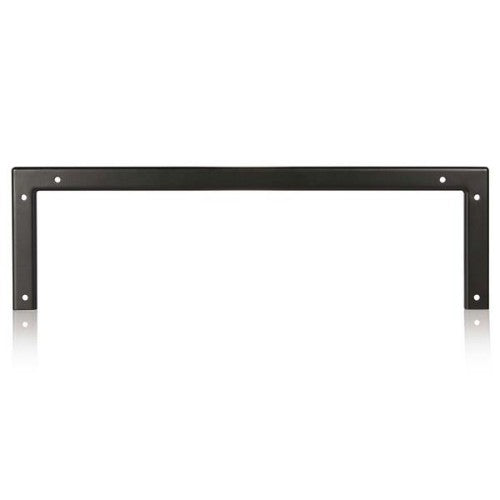

• STANDARDIZED HOLE SIZING: The wall mounting holes on the 2U vertical mountable rack bracket are 16” center to center to provide greater stability and match standard wall studs; it works with most 19” rack mountable equipment for ultimate compatibility
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this patch panel bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance

Description

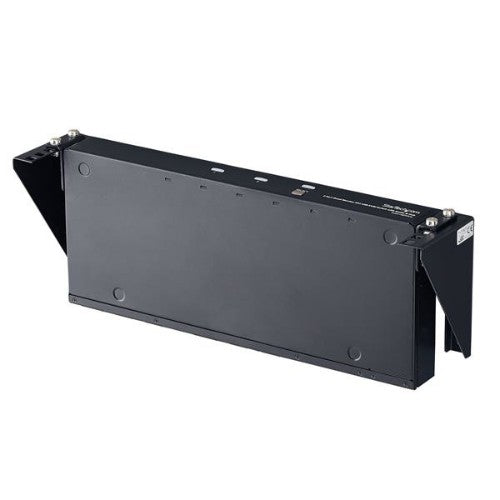

Mount a server, network or telecommunications device vertically with this 2U wall-mountable rack

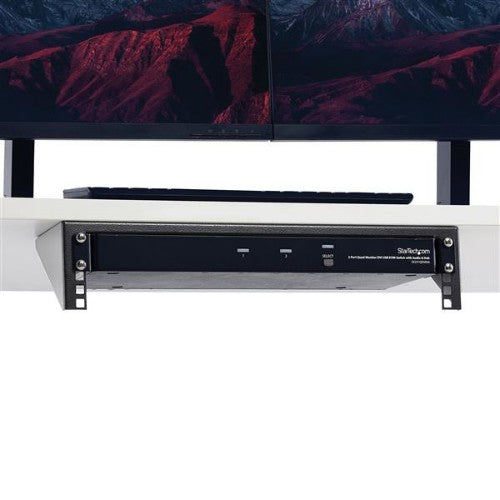

The RK219WALLV 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution allowing rackmount equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 2U bracket can be installed horizontally under a desk, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket features a sturdy steel design constructed to EIA-310 19in rack standards, and offers space-savings for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes are positioned at exactly 16in apart, matching standard construction framework.

Need more storage space? StarTech.com also offers a 3U 19in Wallmount Bracket and a 4U 19in Wallmount Bracket.

The StarTech.com Advantage

Specifications

Features
Size (imperial)	48.3 cm (19")
Frame type	Open
Product design	2-post
Rack capacity	2U
Mounting hole shape	Square
Type	Wall mounted rack
Maximum weight capacity	56.7 kg
Material	Steel
Product colour	Black
Certification	CE, REACH, TAA
Weight & dimensions
Package depth	533 mm
Package width	168 mm
Package height	116 mm
Package weight	1.2 kg
Inner width	45 cm
Width	504 mm
Depth	151 mm
Height	105 mm
Weight	748.7 g
Size (imperial)	48.3 cm (19")
Maximum weight capacity	56.7 kg

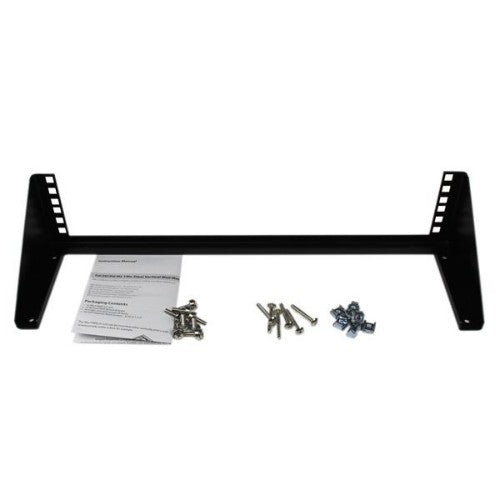

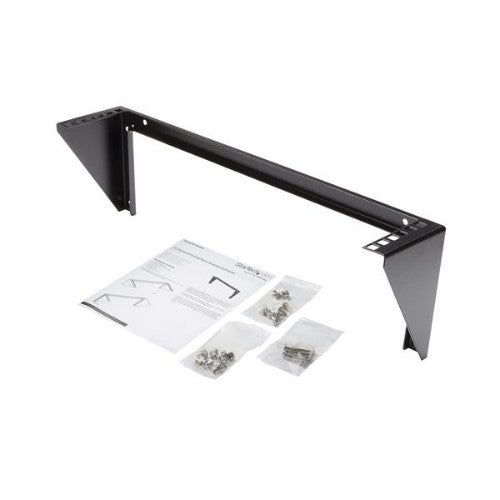

Packaging content
Wall mounting kit	Yes
Manual	Yes
Mounting kit	Yes
Nuts included	Yes
Number of nuts	8
Screws included	Yes
Number of screws	14
Packaging data
Wall mounting kit	Yes
Manual	Yes
Mounting kit	Yes
Nuts included	Yes
Number of nuts	8
Package depth	533 mm
Package width	168 mm
Package height	116 mm
Package weight	1.2 kg
Screws included	Yes
Number of screws	14
Technical details
Package width	168 mm
Package height	116 mm
Type	Wall mounted rack
Size (imperial)	48.3 cm (19")
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
Rack capacity	2U
Colour
Product colour	Black
Certificates
Certification	CE, REACH, TAA
Material
Material	Steel
Logistics data
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA/ECA-310-E
