StarTech.com | SKU:
WALLMOUNTH4
StarTech.com 4U 19in Hinged Wall Mounting Bracket for Patch Panels
€42.35
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com 4U 19in Hinged Wall Mounting Bracket for Patch Panels is backordered and will ship as soon as it is back in stock.
Order Delivery Notice: Thursday 18th December is the last day for orders before Christmas.
Any orders placed after Thursday 18th December will be despatched on Monday 5th January 2026.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
StarTech.com 4U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 33lbs (WALLMOUNTH4)
The WALLMOUNTH4 4U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.
The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
The StarTech.com Advantage
Key Features

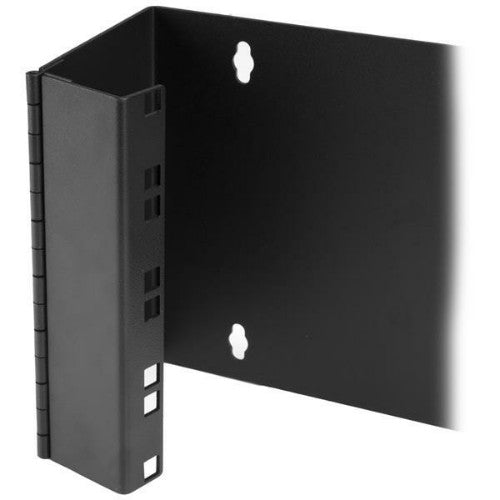

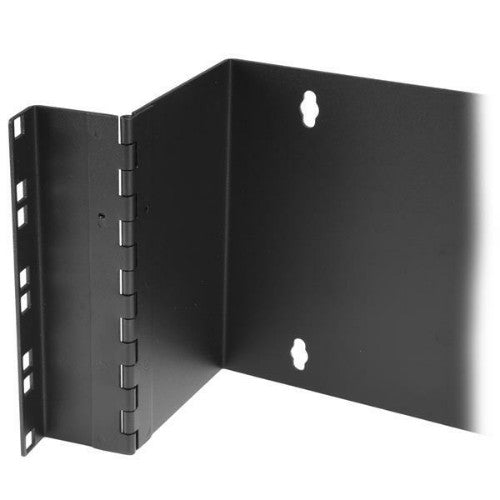

- EASY EQUIPMENT ACCESS: The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables, and to the rear of the mounted equipment for easy adjustment
- STURDY CONSTRUCTION: Made of sturdy cold rolled steel, this patch panel swing bracket is designed to provide a dependable solution for mounting slim 19in networking equipment to a wall
- STANDARDIZED HOLE SIZING: The 4U hinged wall mount patch panel bracket is positioned 16in apart, exactly matching standard drywall construction framework to ensure simple and secure wall-stud anchoring
- OPTIMIZED WORKSPACE: This durable 4U hinged wall mount patch panel bracket has a maximum mounting depth of 5.8in [14.8cm] and a maximum weight capacity of 33.2lb [15kg]
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this patch panel bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Wall mount a patch panel or network switch while providing hinged access to the back of the device(s)The WALLMOUNTH4 4U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.
The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
The StarTech.com Advantage
Specifications

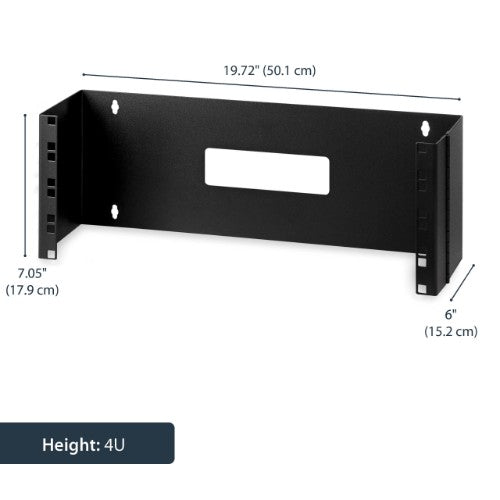

| Weight & dimensions | |
|---|---|
| Package depth | 520 mm |
| Package width | 198 mm |
| Package height | 187 mm |
| Package weight | 2.7 kg |
| Mounting depth (max) | 14.8 cm |
| Width | 501 mm |
| Depth | 152 mm |
| Height | 179 mm |
| Weight | 2.2 kg |
| Maximum weight capacity | 15 kg |

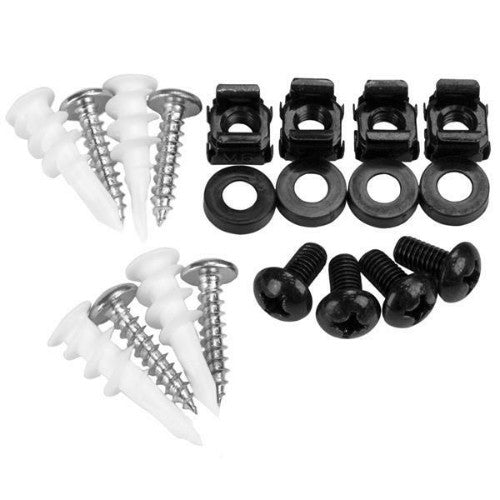

| Packaging content | |
| Nuts included | Yes |
| Number of nuts | 8 |
| Screws included | Yes |
| Number of screws | 12 |
| Number of washers included | 4 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 4U |
| Castor wheels | No |
| Cable management | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 15 kg |
| Material | Steel |
| Product colour | Black |
| Certification | RoHS |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 8 |
| Package depth | 520 mm |
| Package width | 198 mm |
| Package height | 187 mm |
| Package weight | 2.7 kg |
| Screws included | Yes |
| Number of screws | 12 |
| Number of washers included | 4 |
| Technical details | |
| Package width | 198 mm |
| Package height | 187 mm |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Rack capacity | 4U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | RoHS |
| Material | |
| Material | Steel |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
