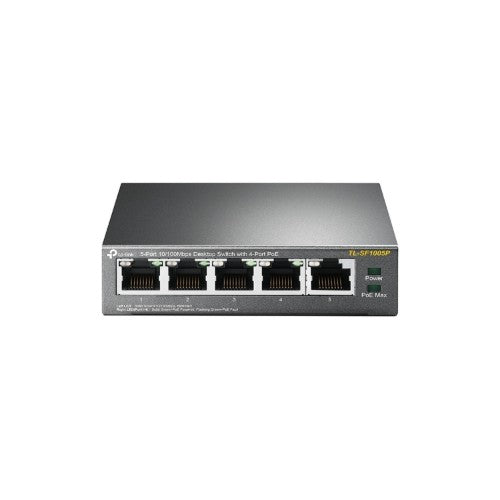

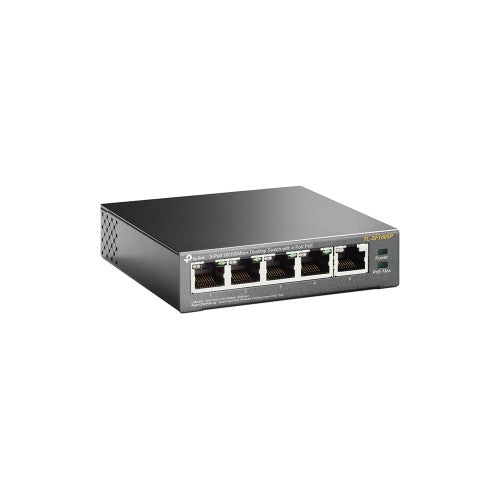

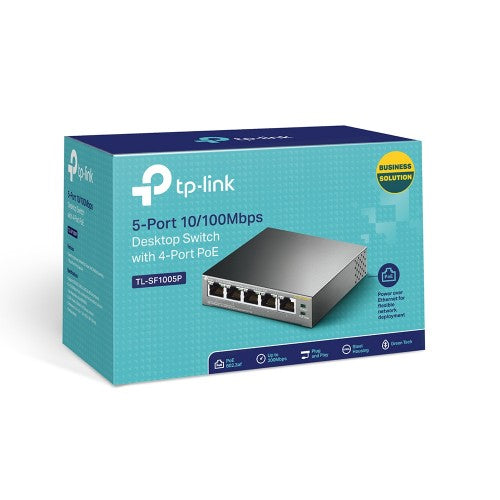

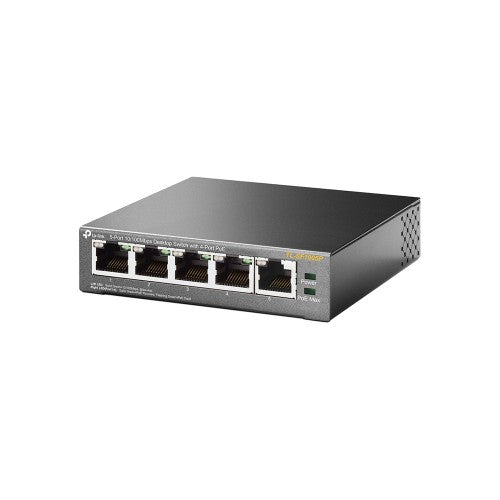

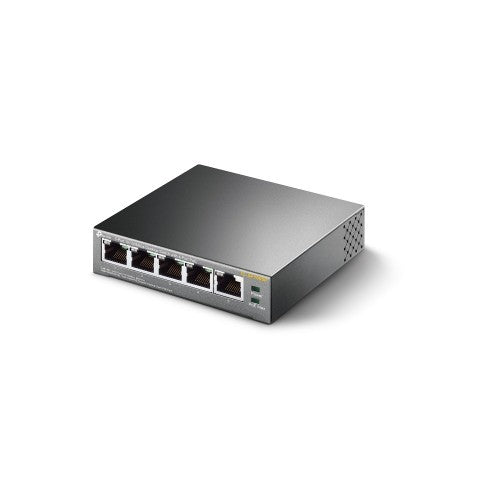

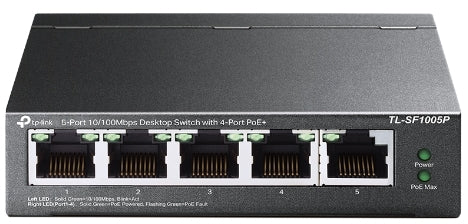

TP-Link TL-SF1005P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.,

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Performance
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Rack mounting	No
Management features
Switch type	Unmanaged
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Networking standards	IEEE 802.3af, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	1 Gbit/s
Store-and-forward	Yes
Certificates
Certification	FCC, CE, RoHS
Design
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Rack mounting	No
Indication
LED indicators	Yes
Power
Power consumption (max)	63.51 W
Power supply included	Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	58 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	5.73 BTU/h
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging data
Package type	Box
User guide	Yes
Logistics data
Harmonized System (HS) code	85176990
Packaging content
User guide	Yes
