Description
Plug and Play, with PoE power supply which meets the needs of diverse devices.

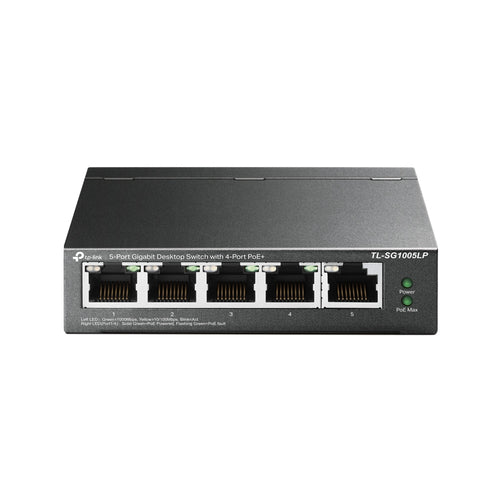

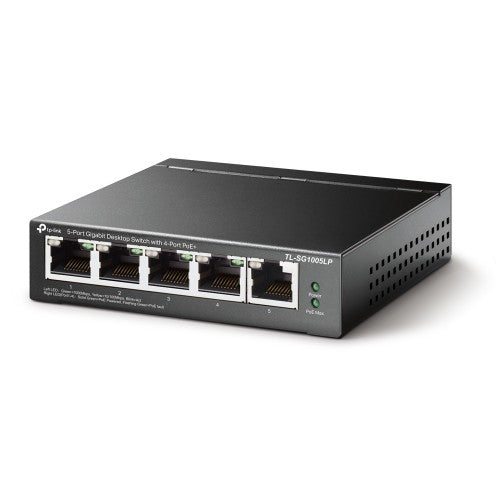

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.,
Ports & interfaces | |
---|---|
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 5 |
Network | |
IGMP snooping | Yes |
Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
MAC address auto-learning supported | Yes |
MAC address auto-aging supported | Yes |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
10G support | No |
Auto-negotiation | Yes |
Performance | |
Stackable | No |
Auto-negotiation | Yes |
Maximum cable length | 100 m |
Harmonized System (HS) code | 85176990 |
Fanless | Yes |
Technical details | |
Product colour | Black |
Stackable | No |
Rack mounting | No |
Sustainability compliance | Yes |
Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Management features | |
Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Data transmission | |
Jumbo frames | 16000 |
MAC address table | 2000 entries |
Switching capacity | 10 Gbit/s |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Forwarding rate | 7.44 Mpps |
Security | |
IGMP snooping | Yes |
Certificates | |
Certification | FCC, CE, RoHS |
Design | |
Wall mountable | Yes |
Product colour | Black |
Stackable | No |
LED indicators | Yes |
Certification | FCC, CE, RoHS |
Rack mounting | No |
Indication | |
LED indicators | Yes |
Power | |
Power consumption (max) | 47.5 W |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 0.81 A |
DC input voltage | 53.5 V |
Power source | DC/PoE |
Power over Ethernet (PoE) | |
Power over Ethernet plus (PoE+) ports quantity | 4 |
Total Power over Ethernet (PoE) budget | 40 W |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Heat dissipation | 161.98 BTU/h |
Weight & dimensions | |
Width | 99.8 mm |
Depth | 98 mm |
Height | 25 mm |
Packaging data | |
Package type | Box |
Package width | 131 mm |
Package depth | 196 mm |
Package height | 121 mm |
User guide | Yes |
Package weight | 730 g |
Sustainability | |
Sustainability compliance | Yes |
Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Packaging content | |
User guide | Yes |
