TP-Link TL-SG1005P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Professional High-Power 5-Port Gigabit Switch with 4 PoE+ Ports - plug and play

Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications

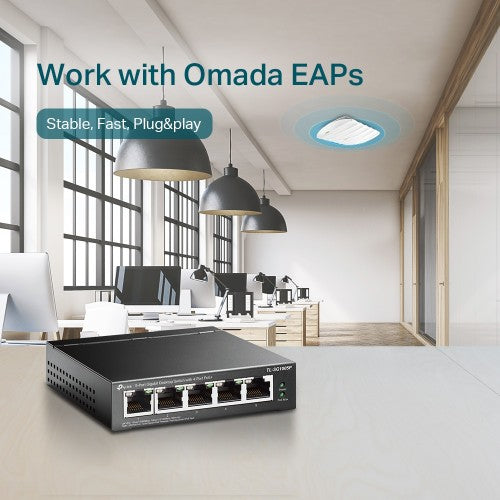

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 4 x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

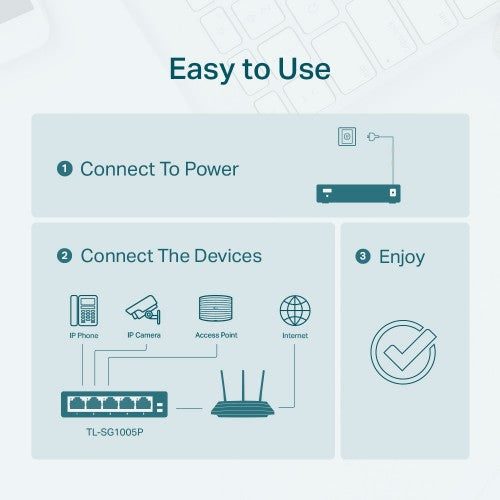

Plug and Play
No Configuration Required

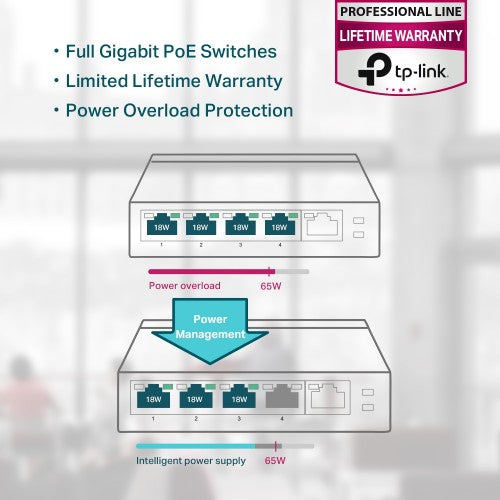

Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance

QoS For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.

Key Features

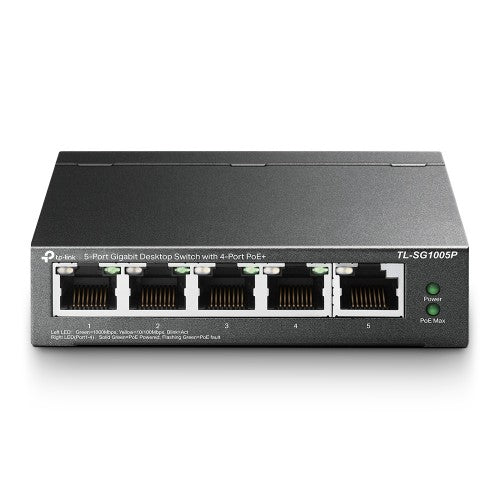

5 x 10/100/1000 Mbps RJ45 ports

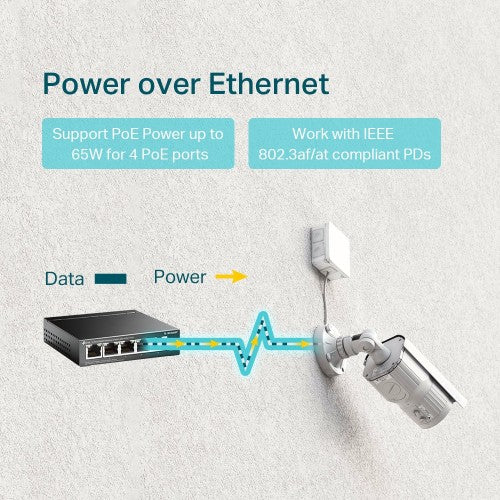

With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports
Requires no configuration and installation

Specifications

Interface
5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 53.5 VDC / 1.31 A)

Packet Forwarding Rate
7.44 Mpps

PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 65 W

Mac Address Table
2K

Jumbo Frame
16 KB

Switching Capacity
10 Gbps

Dimensions ( W x D x H )
3.9 x 3.9 x1.0 in (99.8 x 98 x25 mm)

Max Power Consumption
4.29 W (220/50 Hz. no PD connected)
74.24 W (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation
14.63 BTU/h (no PD connected)
253.16 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transfer Method
Store-And-Forward

Certification
FCC, CE, RoHS

Package Contents
TL-SG1005P
Power Adapter
Installation Guide

Environment
Operating Temperature: 0–40 degrees (32–104 C)
Storage Temperature: -40–70 degrees (-40–158 C)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing,

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
IGMP snooping	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
VLAN support	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Technical details
Product colour	Black
Rack mounting	No
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Security
IGMP snooping	Yes
Certificates
Certification	FCC, CE, RoHS
Design
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Rack mounting	No
Performance
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Power
Power consumption (max)	63.31 W
Power supply included	Yes
AC input voltage	100 - 220 V
AC input frequency	50 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	56 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging data
Package type	Box
Quick start guide	Yes
Manual	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Quick start guide	Yes
Manual	Yes
Cables included	AC
