Description

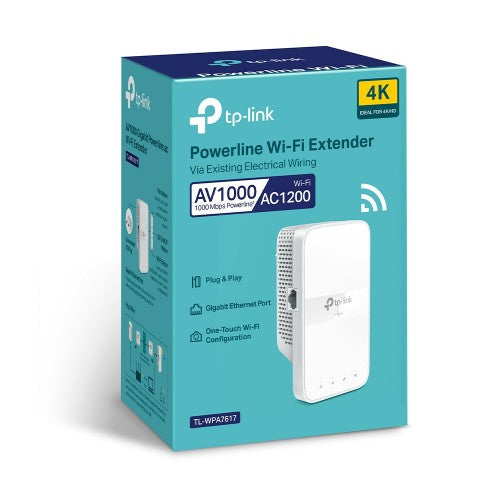

AV1000 Gigabit Passthrough Powerline ac Wi-Fi Kit
- Easily Extend Fast,
- Reliable WiFi to Every Room

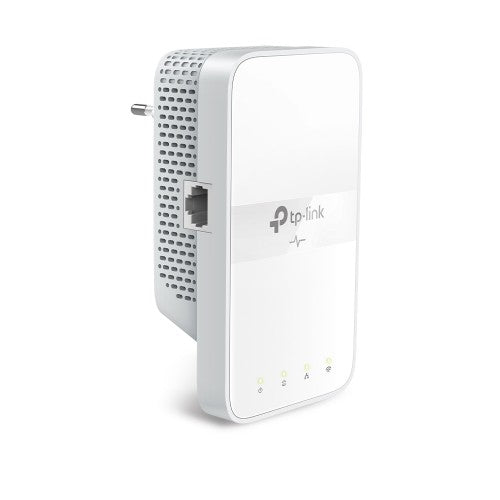

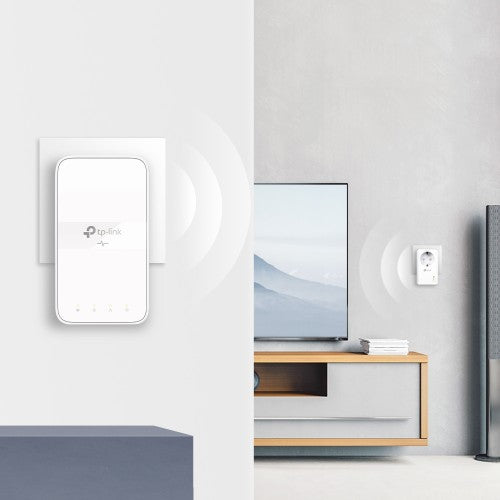

The powerline adapter TL-WPA7617 transforms your home’s existing electrical circuit into a ultra-fast-speed network, and brings wired and wireless networks to anywhere there is a power outlet.
- No need for new wires or drilling
- Network passes through walls and floors
- Compatible with any WiFi routers or other powerline products
- Expand coverage by adding more extenders

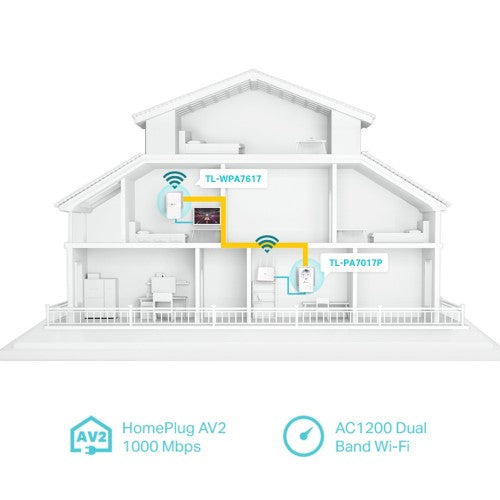

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7617 ensures stable and high-speed WiFi, and also wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

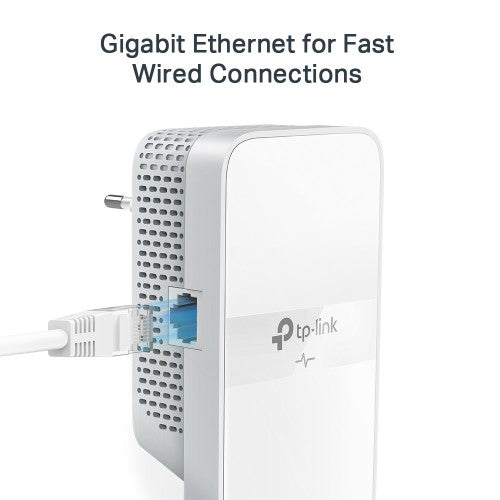

Gigabit Ethernet for Reliable Connections
One Gigabit Ethernet port provides warp-speed wired connections for 4K HD streaming, lag-free gaming, and more. Two Ethernet cables are included in the box.
AC 1200 WiFi for Ultra-fast Internet Connections
AC1200 dual band WiFi (867 Mbps on 5GHz & 300 Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home.

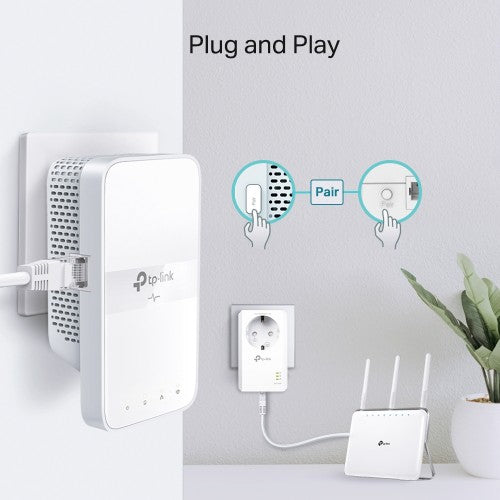

Plug and Play,
No Configuration Required
Ditch the complicated setup process for good. Get started with powerline in just two steps:
- Step1 : connect the existing powerline adapter to your router.
- Step2 : plug in TL-WPA7617 wherever you need wired and wireless internet service.

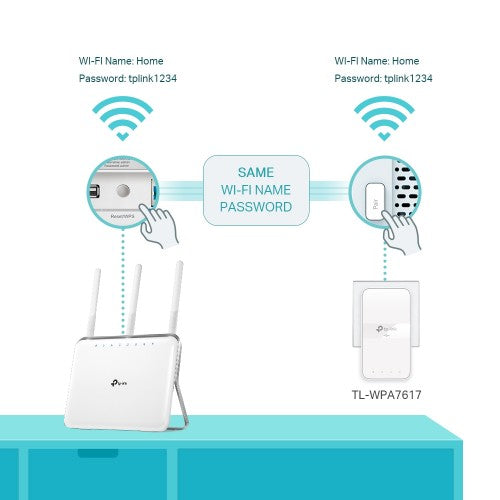

One-Touch Wi-Fi Configuration
Instantly copies the wireless network name (SSID) and password from your router by pressing the WiFi Clone button. Besides, any changes made to the WiFi settings of any powerline adapter will be automatically applied across the entire Powerline network.
Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.
- View real-time powerline speed
- LED control (also controlled by LED On/Off button)
- Guest network
,
| Performance | |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |

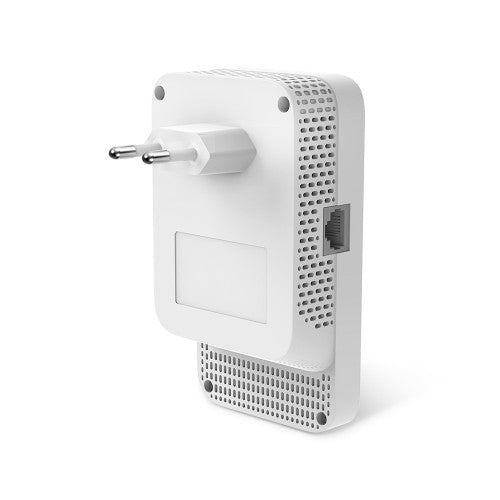

| Power plug | Type E / F |
| Built-in power socket | No |
| Modulation | OFDM |
| Security algorithms | 128-bit AES, WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance | 300 m |
| Plug and Play | Yes |
| Technical details | |
| Antenna type | Internal |
| Ethernet LAN interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Power plug | Type E / F |
| Built-in power socket | No |
| Modulation | OFDM |
| Security algorithms | 128-bit AES, WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance | 300 m |
| LED indicators | Yes |
| Product colour | White |
| Plug and Play | Yes |
| Sustainability certificates | CE, RoHS |
| Power | |
| Power consumption (typical) | 6.5 W |
| Design | |
| Antenna type | Internal |
| LED indicators | Yes |
| Product colour | White |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 69.5 mm |
| Depth | 35 mm |
| Height | 124.1 mm |
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 400 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
