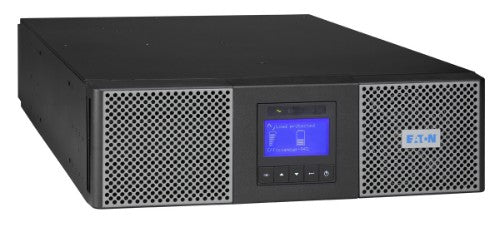

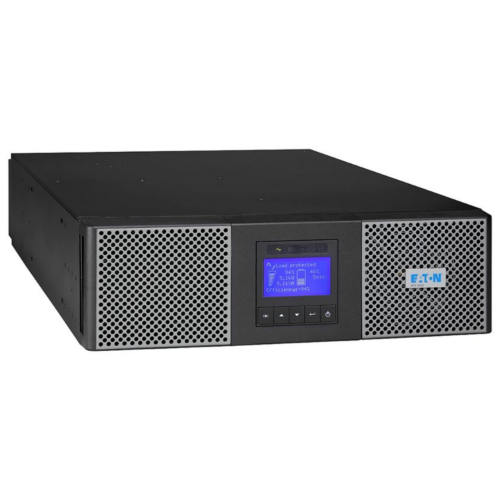

Eaton 9PX5KIRTN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 11 AC outlet(s)

9PX with Network Card and Rack Kit, 5000VA

Description

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)

Specifications

Power
Output power	4500 W
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	94%
Power factor	0.9
Output voltage Total Harmonic Distortion (THD)	2%
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	5 kVA
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Number of input phases	1
LED indicators	Yes
Noise level	45 dB
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Number of input phases	1
Output power	4500 W
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	94%
Power factor	0.9
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	45 dB
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	5 kVA
Input frequency	40/70 Hz
Ports & interfaces
USB port	Yes

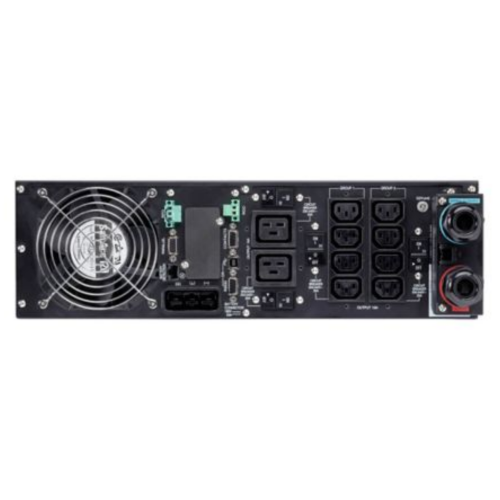

AC outlets quantity	11 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, Terminal
Power plug	Terminal
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	13 min
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	3U

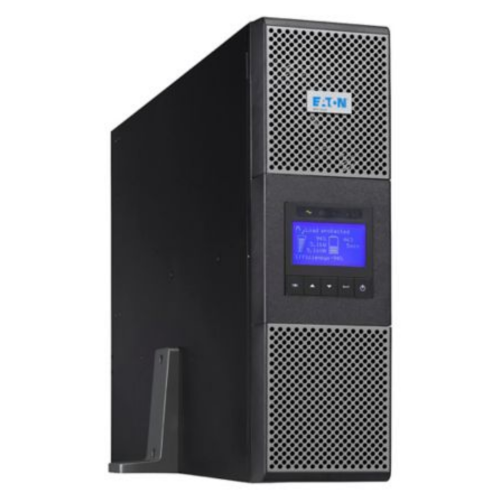

Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Safety	IEC/EN 62040-1, UL 1778
Certification	IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85078000
Weight & dimensions
Weight	48 kg
Width	440 mm
Height	130 mm
Depth	685 mm
Packaging data
Rack mount kit	Yes
Bundled software	Intelligent Power Software suite
Management card included	Yes
Logistics data
Harmonized System (HS) code	85078000
Certificates
Safety	IEC/EN 62040-1, UL 1778
Certification	IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL
Other features
Interface	USB, RS232
Nominal output voltage	230 V
Nominal input voltage	230 V
Packaging content
Rack mount kit	Yes
Bundled software	Intelligent Power Software suite
