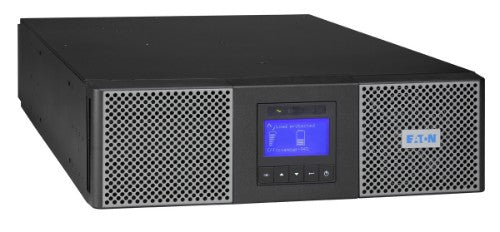

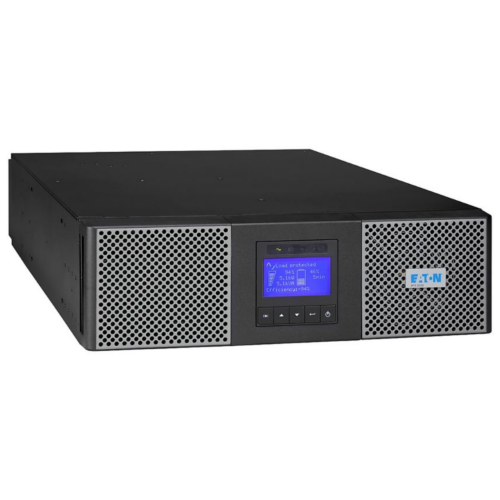

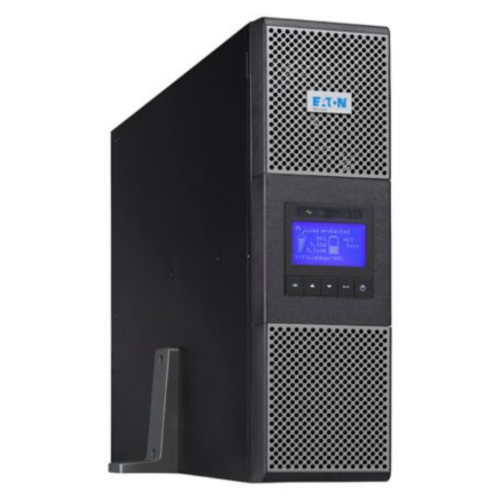

Eaton 9PX5KIRTN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 11 AC outlet(s)

EatonSKU: 9PX5KIRTN

Delivery: Fast Delivery products shipped within 2 working days from date of order.

Customs: No Hidden Charges Save yourself from any unwanted taxes or tarffis we sort all the paperwork leaving you with no hidden charges

Price:
Sale price$5,466.00

Tax included Shipping calculated at checkout

Description

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat),
Power
Output power 4500 W
Input operation voltage (min) 176 V
Input operation voltage (max) 276 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Efficiency 94%
Power factor 0.9
Output voltage Total Harmonic Distortion (THD) 2%
Input current Total Harmonic Distortion (THD) 5%
Crest factor 3:1
Output power capacity 5 kVA
Performance
UPS topology Double-conversion (Online)
Waveform Pure sine
Number of input phases 1
LED indicators Yes
Noise level 45 dB
Features
Output frequency 50/60 Hz
UPS topology Double-conversion (Online)
Waveform Pure sine
Number of input phases 1
Output power 4500 W
Input operation voltage (min) 176 V
Input operation voltage (max) 276 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Efficiency 94%
Power factor 0.9
Output voltage Total Harmonic Distortion (THD) 2%
Noise level 45 dB
Input current Total Harmonic Distortion (THD) 5%
Crest factor 3:1
Output power capacity 5 kVA
Input frequency 40/70 Hz

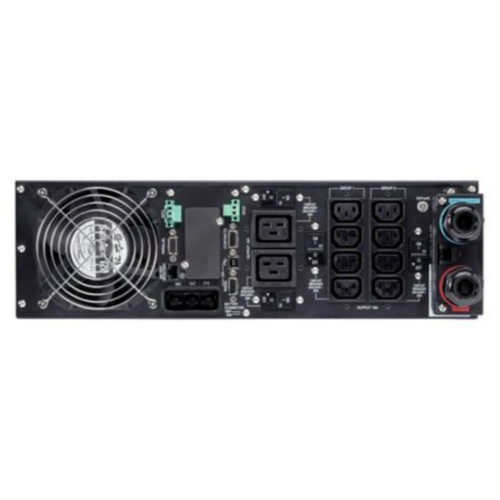

Ports & interfaces
USB port Yes
AC outlets quantity 11 AC outlet(s)
AC outlet types C13 coupler, C19 coupler, Terminal
Power plug Terminal
USB 2.0 ports quantity 1
RS-232 ports 1
Battery
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at half load 13 min
Hot-swap battery Yes
Automatic battery test Yes
Design
Rack capacity 3U
Form factor Rackmount/Tower
LED indicators Yes
Product colour Black
Safety IEC/EN 62040-1, UL 1778
Certification IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL
Display type LCD
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Technical details
Output frequency 50/60 Hz
Sustainability certificates ENERGY STAR
Harmonized System (HS) code 85078000
Weight & dimensions
Weight 48 kg
Width 440 mm
Height 130 mm
Depth 685 mm
Packaging data
Rack mount kit Yes
Bundled software Intelligent Power Software suite
Management card included Yes
Logistics data
Harmonized System (HS) code 85078000
Certificates
Safety IEC/EN 62040-1, UL 1778
Certification IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL
Other features
Interface USB, RS232
Nominal output voltage 230 V
Nominal input voltage 230 V
Packaging content
Rack mount kit Yes
Bundled software Intelligent Power Software suite
