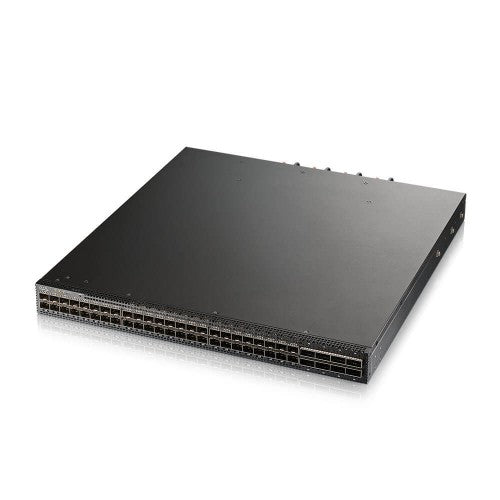

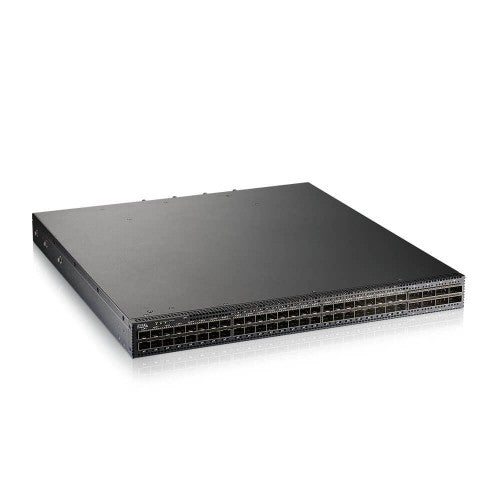

Zyxel CX4800-56F Managed L3 1U Black

CX4800-56F, 48-port 10/25G L3 Aggregation Fiber Switch with 8 100G Uplink (with 2 DC power supply)

Description

Future Proof Aggregation & Core Switch

The CX4800-56F supports a full suite of Layer 2 features, including VLAN, ACL, port aggregation, and 802.1X, to enhance security by preventing unauthorized access to cloud resources and AI workloads, optimize bandwidth for high-speed GPU data transfers, and enable dynamic, isolated workload environments in large-scale AI and cloud deployments.

Nebula, The Intelligent Cloud Management

Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app. With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.

Dedicated Networked AV Mode

The CX4800-56F features a custom-designed networked AV mode for standalone operation. It supports 10G Ethernet with pixel-perfect 4K60 video streaming in real-time, making it ideal for applications ranging from live events to XR and medical imaging. Leveraging AI intelligence, the switch simplifies the setup process by automatically configuring all necessary parameters, enabling a professional AVoIP deployment within minutes.

Specifications

Management features
ARP inspection	Yes
Reset button	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L3
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Console port	RJ-45
Power connector	DC-in jack
QSFP28 ports quantity	8
SFP28 ports quantity	48
USB Type-A ports quantity	2
Number of management ports	1 pc(s)
Network
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Policy-based routing	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	32 MB
MAC address table	30000 entries
Switching capacity	4000 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Security
Loop protection	Yes
SSH/SSL support	Yes
Security algorithms	SSH-2, SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Design
Reset button	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Country of origin	Taiwan
Performance
Memory type	RAM / Flash
Mean time between failures (MTBF)	5900181.1 h
Internal memory	8000 MB
Flash memory	64 MB
Packet buffer memory	32 MB
Power
Power supply included	Yes
Number of power supply units	2
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	1122 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	440 mm
Depth	489 mm
Height	45 mm
Weight	8.62 kg
Packaging content
Rack mount kit	Yes
Cables included	AC
Packaging data
Package type	Box
Package width	595 mm
Package depth	706 mm
Package height	206 mm
Rack mount kit	Yes
Cables included	AC
Technical details
Form factor	1U
Product colour	Black
Mean time between failures (MTBF)	5900181.1 h
Rack mounting	Yes
Memory
Packet buffer memory	32 MB
Memory type	RAM / Flash
Internal memory	8000 MB
Flash memory	64 MB
Indication
LED indicators	Yes
Other features
Country of origin	Taiwan
Logistics data
Country of origin	Taiwan
