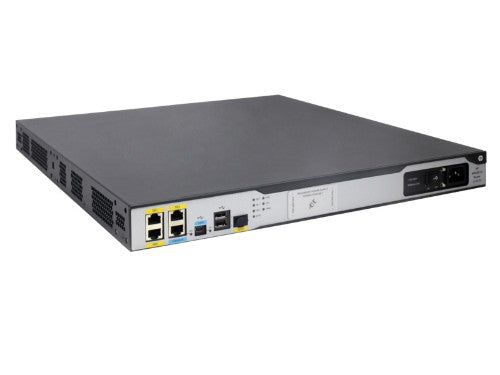

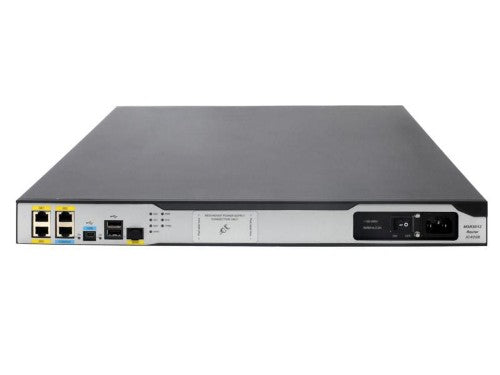

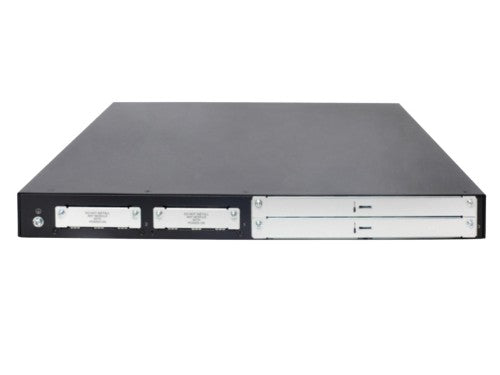

HPE MSR3012 wired router Gigabit Ethernet Grey

MSR3012

Description

The HPE MSR3000 Router Series, the next generation of router from Hewlett Packard Enterprise (HPE),
is a component of the HPE FlexBranch solution, which is a part of the comprehensive
HPE FlexNetwork architecture. These routers feature a modular design that delivers unmatched
application services for medium- to large-sized branch offices. This gives your IT personnel the
benefit of reduced complexity, and simplified configuration, deployment, and management.
The MSR3000 routers use the latest multicore CPUs, offer Gigabit switching, provide an enhanced
PCI bus, and ship with the latest version of HPE Comware software to help enable high performance
with concurrent services. The MSR3000 series provides a full-featured, resilient routing platform,
including IPv6 and Multi-Protocols Label Switching (MPLS), with up to 5 Mpps forwarding capacity
and 3.3 Gb/s of IPSec VPN encrypted throughput. These routers also support HPE Open Application
Platform (OAP) modules to deliver integrated industry-leading HPE AllianceOne partner applications
such as virtualization, unified communications and collaboration (UC&C), and application
optimization capabilities.
The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly
adapt to changing business requirements while delivering integrated concurrent services on a single,
easy-to-manage platform.

Specifications

Ethernet LAN features
Ethernet LAN data rates	1000 Mbit/s
Memory
Flash memory	256 MB
Internal memory	2000 MB
Performance
Internal memory type	DDR3
Flash memory	256 MB
Internal memory	2000 MB
Processor frequency	1000 MHz
Mean time between failures (MTBF)	460425 h
Heat dissipation	127 BTU/h
WAN connection
SIM card slot	No
3G/4G USB modem compatibility	No
Network
Networking standards	IEEE 802.3ab
Ethernet LAN data rates	1000 Mbit/s
Forwarding rate	2.6 Mpps
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Installed SFP modules quantity	1
Ethernet LAN (RJ-45) ports	3
Smart Interface Card (SIC) slots quantity	2
Technical details
Rack mounting	Yes
Processor frequency	1000 MHz
Mean time between failures (MTBF)	460425 h
Product colour	Grey
Heat dissipation	127 BTU/h
Harmonized System (HS) code	85176990
Security
Firewall	Yes
Features
Internal memory type	DDR3
Safety	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1
Flash memory	256 MB
Internal memory	2000 MB
Processor frequency	1000 MHz
Mean time between failures (MTBF)	460425 h
Heat dissipation	127 BTU/h
Design
Rack mounting	Yes
Product colour	Grey
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	440 mm
Depth	480 mm
Height	44.2 mm
Weight	7.15 kg
Logistics data
Harmonized System (HS) code	85176990
Other features
Dimensions (WxDxH)	440 x 480 x 44.2 mm
Certificates
Safety	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1
