Draytek | SKU:
VSPQ1070X-K
Sold out

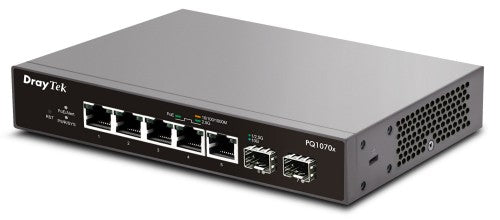

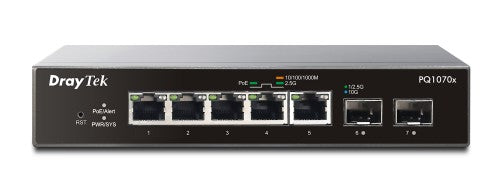

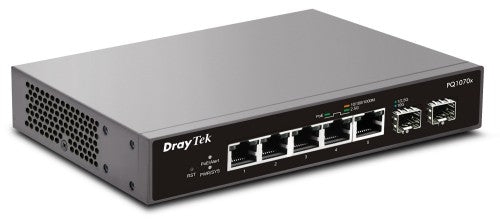

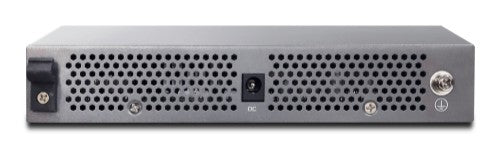

DrayTek PQ1070x Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black
€128.70
€129.00
Unit price
/
Unavailable
Shipping calculated at checkout.
DrayTek PQ1070x Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
VigorSwitch PQ1070x PoE+ Switch with 5 x 2.5GbE ports & 2 x 10Gbps SFP+ slots
This compact in size networking switch helps with expanding the network in critical areas where additional fast 2.5GbE interfaces are needed, supported by up to 10Gbps SFP+ uplink interfaces.
Key Features
- 5 x RJ-45 2.5 Gigabit Ethernet Ports
- 2 x SFP+ 10GbE Ports for Uplink / Fibre
- Compact form factor
- Wall Mountable
- Fanless (Silent) Operation
- Low Power Consumption
Description
VigorSwitch PQ1070x is a 2.5 Gigabit switch with 5 PoE+ 2.5GbE ports (total of 75W output) and 2 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.This compact in size networking switch helps with expanding the network in critical areas where additional fast 2.5GbE interfaces are needed, supported by up to 10Gbps SFP+ uplink interfaces.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Network | |
| Full duplex | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 8 MB |
| MAC address table | 16000 entries |
| Switching capacity | 65 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 48.36 Mpps |
| Number of multicast groups filtered | 64 |
| Multicast Listener Discovery (MLD) snooping | v1, v2 |
| Security | |
| Loop protection | Yes |
| Multicast features | |
| Number of multicast groups filtered | 64 |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | v1, v2 |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Packet buffer memory | 8 MB |
| Stackable | No |
| Power | |
| Power consumption (max) | 89.6 W |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Total Power over Ethernet (PoE) budget | 75 W |
| Power over Ethernet (PoE) ports quantity | 5 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 114 mm |
| Height | 32 mm |
| Weight | 1.16 kg |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Housing material | Metal |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 8 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
