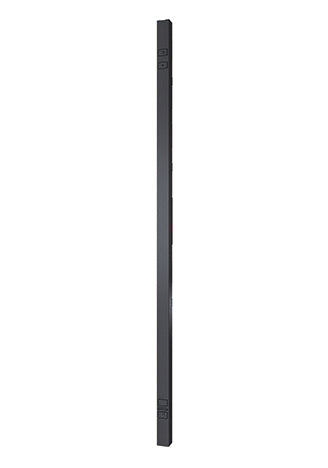

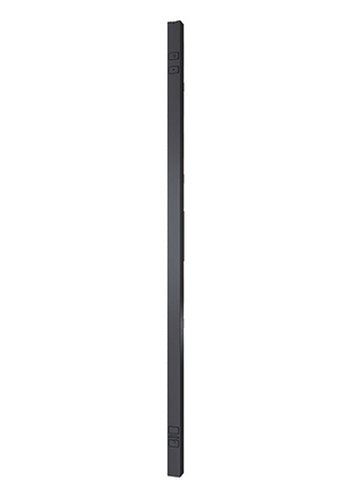

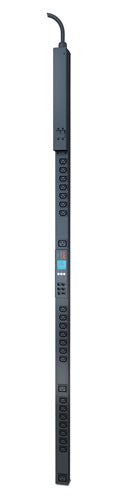

APC AP8453 power distribution unit (PDU) 24 AC outlet(s) 0U Black

NetShelter Metered-by-Outlet Rack PDU, 0U, 1PH, 7.4kW 230V 32A, x21 C13 and x3 C19 outlets, IEC 309 cord

Description

APC Metered-by-Outlet Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh) at the outlet level. This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to monitor and optimize energy use, and plan for capacity on a granular level for things like customer power usage. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (21) C13 and (3) C19 locking outlets. Daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications

Design
Type	Single-phase
PDU types	Metered, Metered-by-outlet
Mounting	Vertical
Product colour	Black
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Rack capacity	0U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC309
Features
Cable length	3.05 m
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	3.05 m
Power
Maximum power	7680 W
Nominal output voltage	230 V
Maximum current	32 A
Maximum total current draw per phase	32 A
Maximum input current per phase	32 A
Load capacity	7680 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Weight & dimensions
Weight	8.21 kg
Width	56 mm
Depth	51 mm
Height	1829 mm
Package width	163 mm
Package depth	117 mm
Package height	2037 mm
Package weight	10.5 kg
Packaging data
Package width	163 mm
Package depth	117 mm
Package height	2037 mm
Package weight	10.5 kg
Technical details
Total carbon footprint (kg of CO2e)	5046.47
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	5046.47
