APC | SKU:
AP6020A

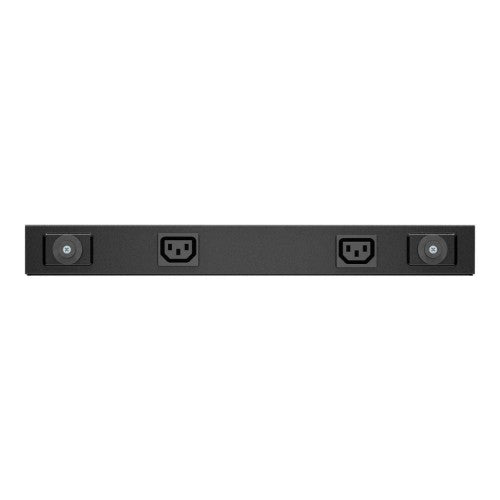

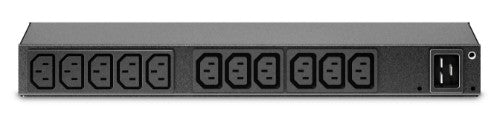

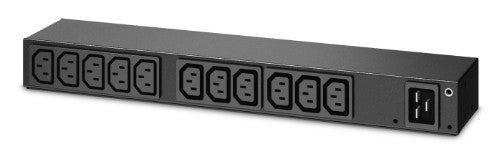

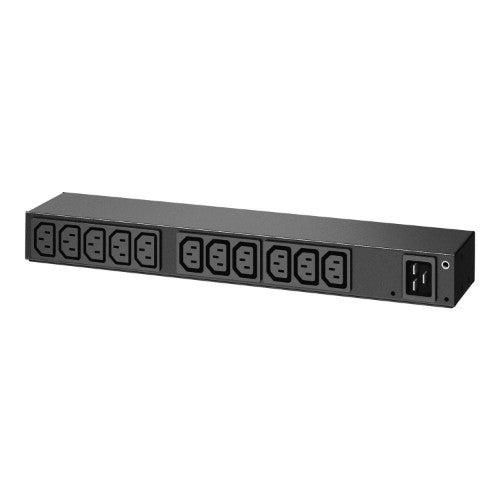

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
€91.81
Unit price
/
Unavailable
Shipping calculated at checkout.
APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A or 200-240V 16A, 13 C13 outlets, C20 inlet
Description
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Basic |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Output connections | IEC 320 C13 |
| Features | |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Power | |
| Maximum power | 3680 W |
| Nominal input voltage | 100-240 V |
| Maximum current | 20 A |
| Maximum total current draw per phase | 16 A |
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 44 mm |
| Depth | 93 mm |
| Height | 388 mm |
| Package width | 210 mm |
| Package depth | 76 mm |
| Package height | 436 mm |
| Package weight | 2.02 kg |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 76 mm |
| Package height | 436 mm |
| Package weight | 2.02 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 38.04 |
| Compliance certificates | RoHS |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 38.04 |
