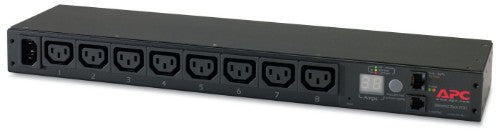

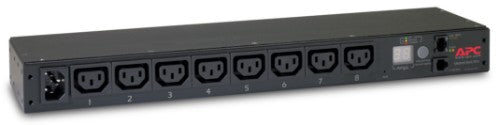

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

Rack PDU, Metered, 1U, 12A/208V, 10A/230V, 50/60 Hz, 8x IEC 320 C13, IEC-320 C14, 444 x 102 x 44 mm, 1730 g

Description

Marketing Features

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring
Status available to customers both in the data center and remotely

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Agility

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Specifications

Design
PDU types	Metered
Mounting	Horizontal/Vertical
Product colour	Black
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI
Rack capacity	0U/1U
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Input connection type	IEC-320 C14
Features
Cable length	1.98 m
LED indicators	Yes
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	1.98 m
LED indicators	Yes
Power
Maximum power	2300 W
Nominal input voltage	208-230 V
Nominal output voltage	208-230 V
Maximum current	15 A
Maximum total current draw per phase	10 A
Maximum input current per phase	15 A
Load capacity	2300 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	1.73 kg
Width	444 mm
Depth	102 mm
Height	44 mm
Package width	470 mm
Package depth	337 mm
Package height	64 mm
Package weight	2.91 kg
Packaging data
Package width	470 mm
Package depth	337 mm
Package height	64 mm
Package weight	2.91 kg
Technical details
Compliance certificates	RoHS
