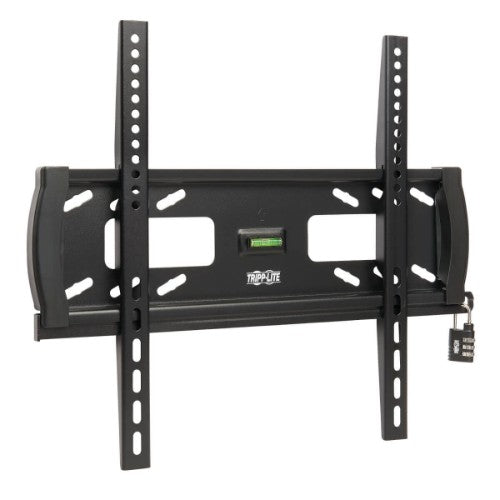

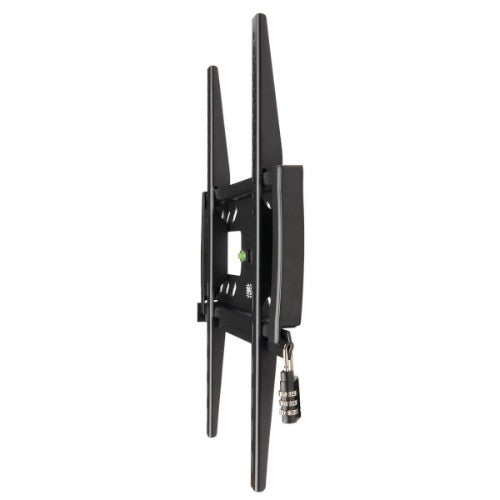

Tripp Lite DWFSC3255MUL Fixed TV Wall Mount 32-55", Heavy Duty, Security, Televisions & Monitors - Flat/Curved, UL Certified

Fixed TV Wall Mount 32-55", Heavy Duty, Security, Televisions & Monitors - Flat/Curved, UL Certified

Key Features

• Accepts most popular flat- or curved-screen displays from 32 to 55 in. and up to 99 lbs (44.9 kgs)
• Function- and weight-tested in accordance with UL Standard 2442 up to 150 lbs (68 kgs)
• Solid steel security bar and included combo lock deters tampering and theft
• Open architecture and built-in level enable easy cable access and accurate leveling
• Complies with VESA standards to ensure compatibility with your display

Description

Security Wall Mount Hangs Your Flat-Panel or Curved-Screen TV or Monitor on the Wall
Ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 32 to 55 inches and up to 99 lbs (44.9 kgs). Mounting hardware is included.

Durable All-Metal Construction Provides Convenient Cable Access
The monitor wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount is function- and weight-tested to 150 lbs (68 kgs) in accordance with UL Standard 2442.

Designed to Keep Your Display Safe and Secure
This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included three-position combination lock.

Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This fixed TV wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300 and 400 x 400.

5-Year Warranty
The DWFSC3255MUL is backed by a 5-year warranty, ensuring reliability and performance.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400
Number of displays supported	1
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	400 x 400 mm
Maximum screen size	139.7 cm (55")
Maximum weight capacity	45 kg
Suitable for computer monitor	Yes
Ergonomics
Cable management	No
Technical details
Cable management	No
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Country of origin	China
Compliance certificates	RoHS
Design
Cable management	No
Certification	UL
Product colour	Black
Housing material	Steel
Certificates
Certification	UL
Packaging content
Screws included	Yes
Adapter bracket included	Yes
Anchors included	Yes
Washers included	Yes
Spacer included	Yes
Weight & dimensions
Width	439.4 mm
Depth	25.4 mm
Height	515.6 mm
Weight	1.83 kg
Packaging data
Package width	165.1 mm
Package depth	45.7 mm
Package height	548.6 mm
Package weight	2.45 kg
Logistics data
Master (outer) case width	350.5 mm
Master (outer) case length	205.7 mm
Master (outer) case height	551.2 mm
Master (outer) case gross weight	20.1 kg
Products per master (outer) case	8 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332213713
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Country of origin	China
