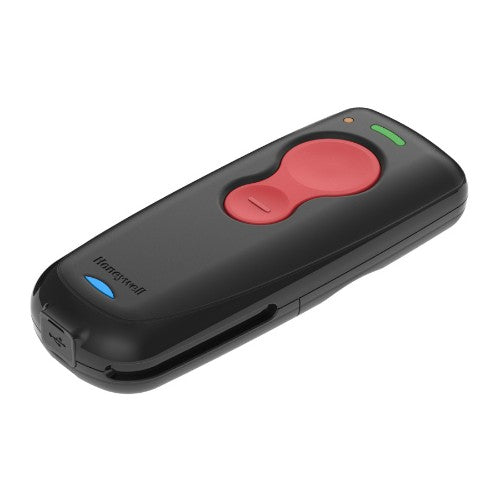

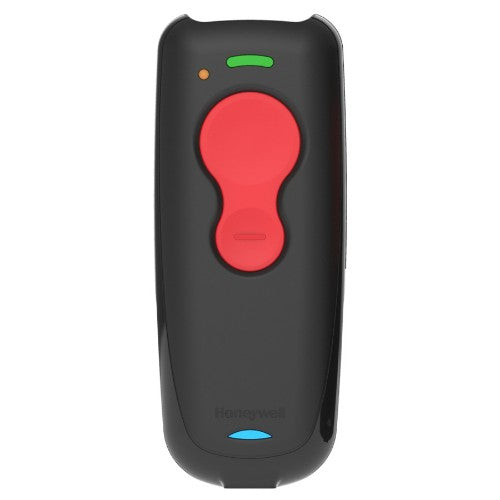

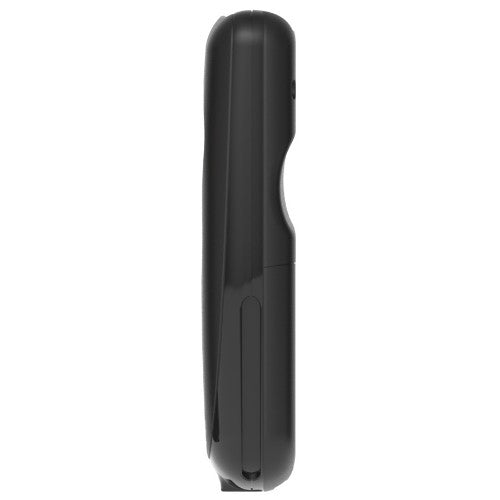

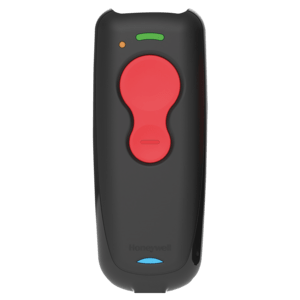

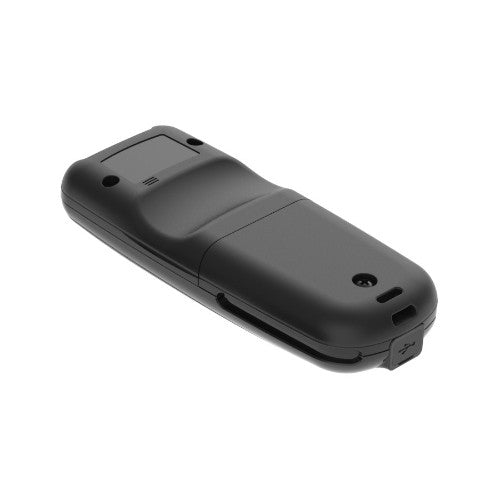

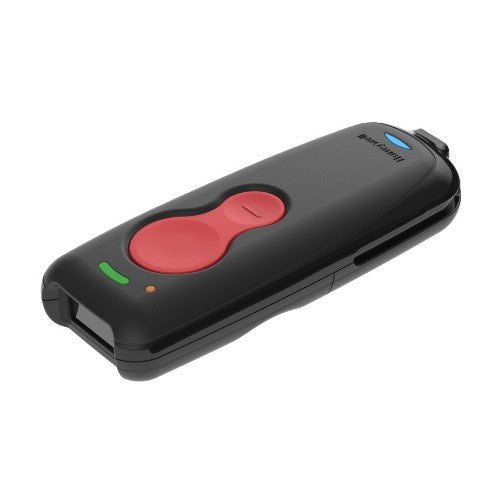

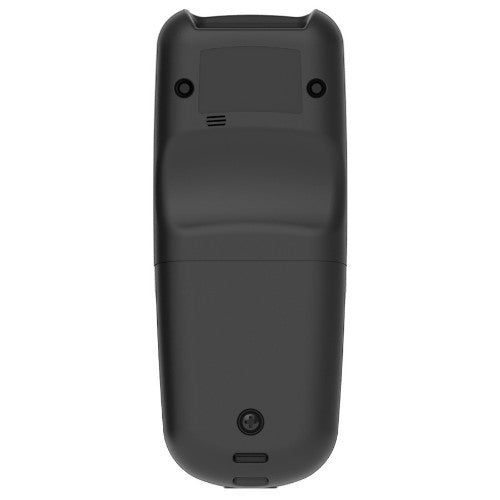

Honeywell Voyager 1602g Handheld bar code reader 1D/2D Black

Pocket Scanner, 1D/2D, Area Imaging CCD, 2.4-2.5GHz, 1Mbit/s, 100000Lux, 640x480pixels, Bluetooth 2.1, USB 2.0, 10m, Li-Ion 750mAh 3.7V, IP42, 100g, Black

Description

Looking for the perfect scanning companion for your tablet-based retail point-of-sale and field service applications? The affordable Voyager™ 1602g wireless scanner is the one. It packs high-performance area-imaging technology into an elegant and pocketable form factor that makes scanning easy and – dare we say – fun.

Full-Size Performance
Features the same performance area-imaging engine found in our full-size scanners, so you can scan virtually all 1D and 2D barcodes with ease.

A Mobile Marketing Enabler
Lets you scan barcodes off smartphone screens – mobile coupons, e-tickets, digital wallets, and digital loyalty cards.

Ergonomically Designed
Contoured and elegant design, over-sized scan button, and light weight make scanning fun.

Efficient Wireless Performance
Bluetooth® wireless technology provides freedom of movement up to 10 m (33 ft) from host device.

User-Replaceable Battery
Rated for more than 2,250 scans on a single charge; rechargeable over standard microUSB.

Specifications

Scanning
Type	Handheld bar code reader
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Motion tolerance (cm/s)	10
Optical sensor resolution	640 pixels
Scanner type	1D/2D
Pitch reading angle	-60 - 60°
Light levels (direct sunlight)	0 - 100000 lx
Ports & interfaces
PC connection	USB 2.0
Data transfer rate	1 Mbit/s
Wireless range	10 m
Connectivity technology	Wireless
USB version	2.0
USB 2.0 ports quantity	1
Bluetooth version	2.1+EDR
Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth, USB
Performance
Programming function	Yes
LED indicators	Yes
Keys quantity	2 keys
Housing material	Plastic
International Protection (IP) code	IP42
Product colour	Black
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Handheld bar code reader
LED indicators	Yes
Keys quantity	2 keys
Housing material	Plastic
International Protection (IP) code	IP42
Product colour	Black
Power
Power source type	Battery
Number of batteries supported	1
Battery life	12 h
Charging time	3 h
Battery voltage	3.7 V
Number of reads per charge	2250
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	750 mAh
Weight & dimensions
Width	48 mm
Depth	22 mm
Height	120 mm
Weight	100 g
Technical details
Type	Handheld bar code reader
LED indicators	Yes
Keys quantity	2 keys
Housing material	Plastic
Windows operating systems supported	Yes
USB 2.0 ports quantity	1
Mobile operating systems supported	Android, Windows Mobile, iOS
International Protection (IP) code	IP42
Product colour	Black
Programming function	Yes
PC connection	USB 2.0
Harmonized System (HS) code	84716070
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Light levels (direct sunlight)	0 - 100000 lx
Logistics data
Harmonized System (HS) code	84716070
Other features
Windows operating systems supported	Yes
USB 2.0 ports quantity	1
Mobile operating systems supported	Android, Windows Mobile, iOS
